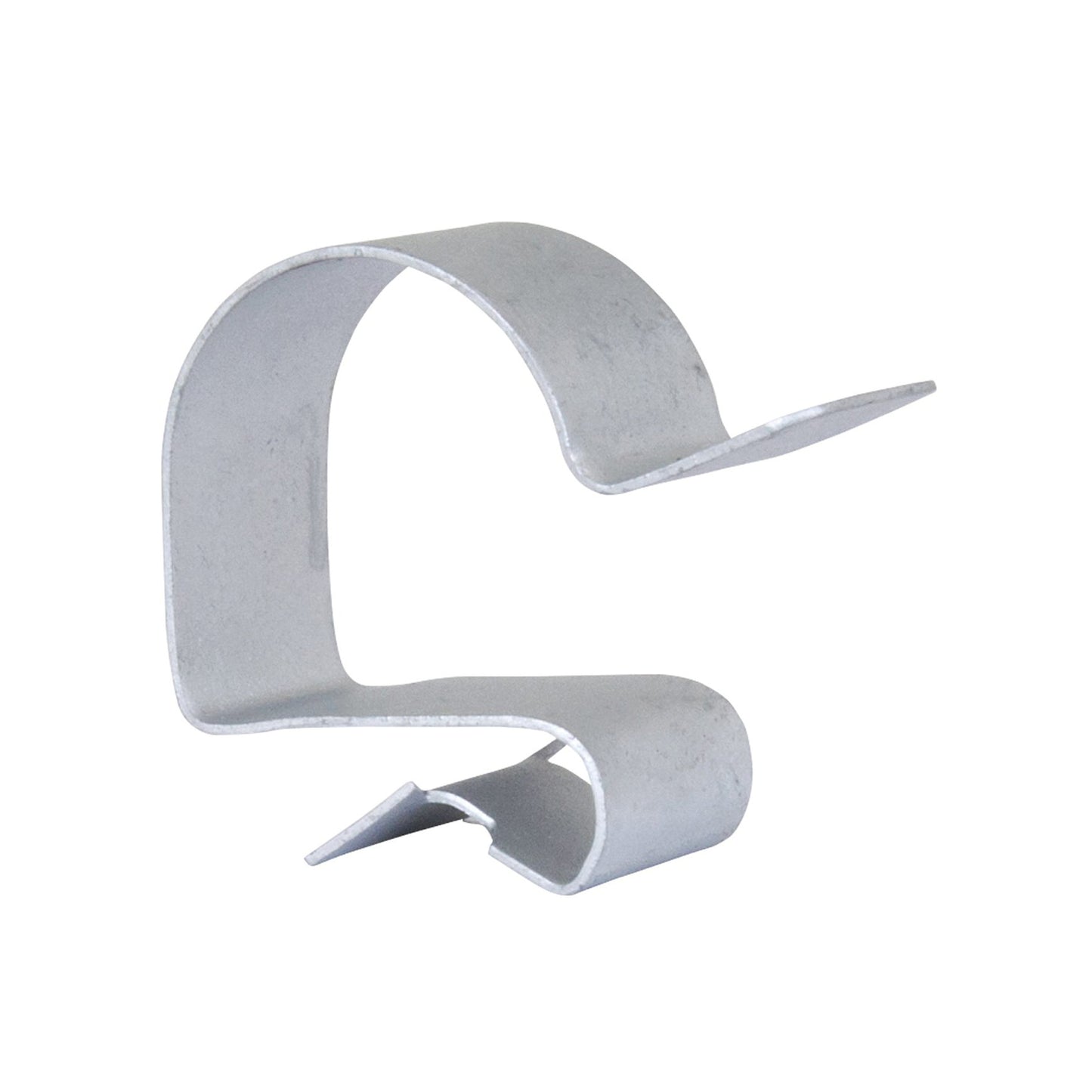

Britclips PC, abrazadera para paso de cables, Ø 19 - 24 mm, espesor de brida 8 - 12 mm
Britclips PC, abrazadera para paso de cables, Ø 19 - 24 mm, espesor de brida 8 - 12 mm
SKU:15000966
Precio habitual
Cg. 1.70
Precio habitual
Precio de oferta
Cg. 1.70
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Assortments
wca3010090
Complementary products v2
ProductListDrop
Diameter
19 mm, 20 mm, 21 mm, 22 mm, 23 mm, 24 mm
Eancode
8712993544431
Flange thickness
8 mm, 9 mm, 10 mm, 11 mm, 12 mm
Descripción
This beam clip enables cables or electrical conduits to be quickly attached to steel beams. The Britclips PC is a unique clip for attaching conduits or cables to steel structures with a flange thickness of 8 to 12 mm.
The beam clip can be used for both indoor and outdoor applications.
Delta-Tone 9000 is applied in a dip/centrifuge or spray process and then dried at a temperature of 200 °C. This creates an even layer, with a thickness of 10–12 μm, over the whole product. Delta-Tone 9000 then bonds with the underlying metal.
Unlike electrolytic and thermal galvanising, Delta-Tone 9000 does not pose a risk of hydrogen embrittlement in materials with a high carbon content, such as spring steel.
To improve corrosion resistance, the process can be repeated, increasing the coating thickness by 10–12 μm each time.
Delta-Tone 9000 galvanised products are suitable for outdoor use and for moderately corrosive conditions.
The beam clip can be used for both indoor and outdoor applications.
Material
This type of beam clip is made of spring steel, type C67S according to EN10132, and is part of the Walraven Delta-Tone 9000 surface treatment (min. 480 hours in salt spray test).Delta Tone 9000
Delta-Tone 9000 consists of zinc and aluminium particles held together by an inorganic binder. This provides effective protection against corrosion, even when thinly coated.Delta-Tone 9000 is applied in a dip/centrifuge or spray process and then dried at a temperature of 200 °C. This creates an even layer, with a thickness of 10–12 μm, over the whole product. Delta-Tone 9000 then bonds with the underlying metal.
Unlike electrolytic and thermal galvanising, Delta-Tone 9000 does not pose a risk of hydrogen embrittlement in materials with a high carbon content, such as spring steel.
To improve corrosion resistance, the process can be repeated, increasing the coating thickness by 10–12 μm each time.
Delta-Tone 9000 galvanised products are suitable for outdoor use and for moderately corrosive conditions.
Do you want to buy a beam clip or need more information?
The desired beam clip can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which pipe clamp would be best for your situation? Contact one of our product specialists for advice without obligation.
