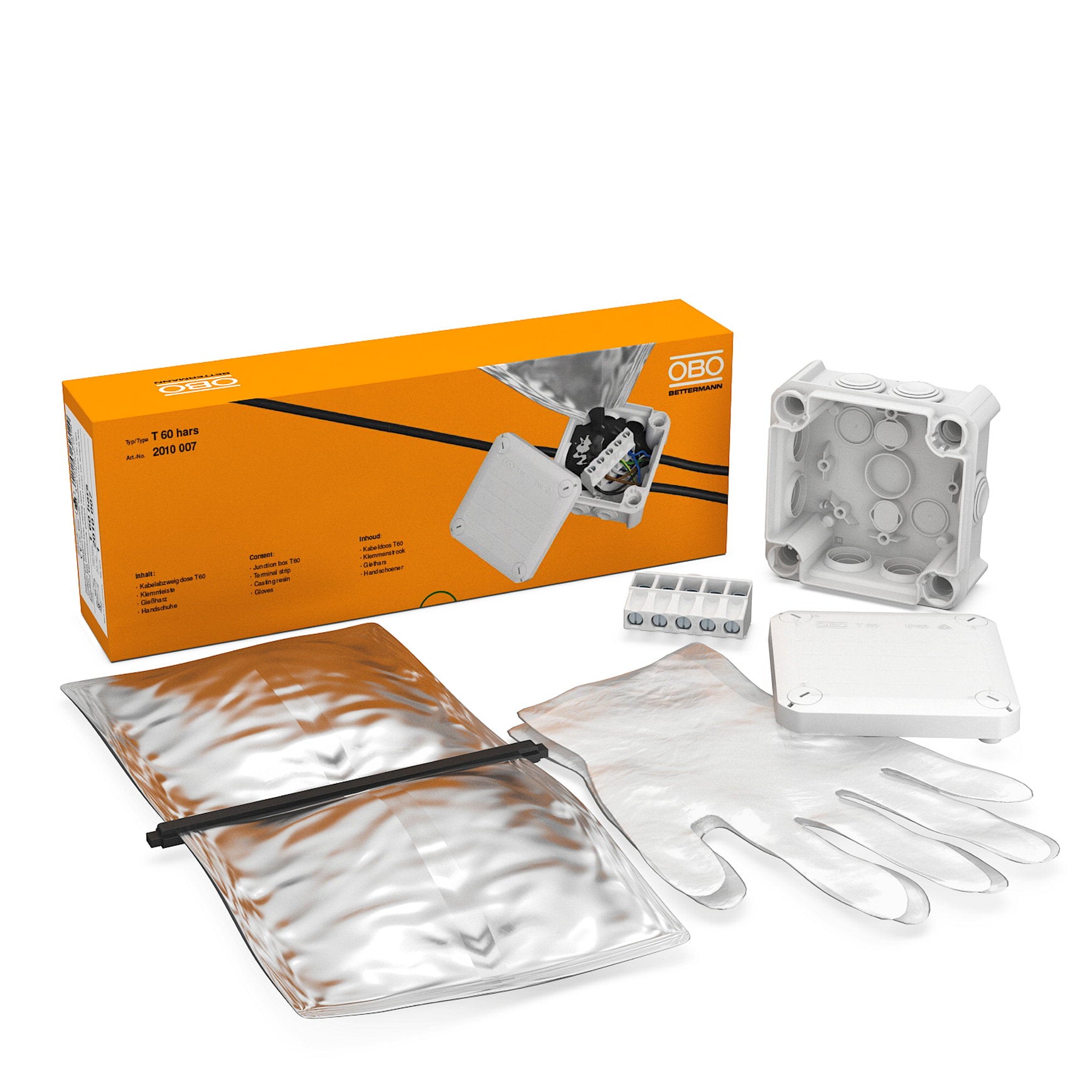

Paquete de casquillos de fundición OBO T 60, incluye resina de fundición, con regleta de terminales y accesorios, IP 68

Paquete de casquillos de fundición OBO T 60, incluye resina de fundición, con regleta de terminales y accesorios, IP 68

SKU:863036

Cg. 97.28
Cg. 97.28
Oferta Agotado
impuestos incluidos
En existencias
Ver todos los detalles

Presupuesto

Assortments
wca7010010
Cable diameter maximum
25 milímetros
Complementary products v2
ProductListDrop
Connection size
1,5 mm², 2,5 mm², 4 mm²
Contents
123 ml
Degree of protection
IP68
Eancode
4012196286539
Height
57 milímetros
Length
114 milímetros
Number of entries
7
Ral
7035
Type
T60
Type of input
M25
Voltage
500 voltios
Width
114 milímetros

Descripción

  • The cable boxes are made of polypropylene (PP), a thermoplastic polymer, and cable entries of ethylene vinyl acetate (EVA).
  • With terminal strip, casting resin and gloves.
  • Conduits can be installed directly through the M25 seals or the seals can be cut with a knife in the designated locations to create an entry hole for cables or tubes.
  • Alternatively, glands can be inserted through the openings instead of the seals and secured from the inside with a lock nut.
  • The cable boxes can be mounted on mounting plates using 3.5 x 9.5 plate screws in openings in the base.
  • T 60 cable box + lid:
    Nominal voltage 500 V, with 4 captive cover screws, dimensions 114 x 114 x 57 mm, internal dimensions 100 x 100 x 48 mm, halogen-free.
  • VBX KL60 terminal strip:
    Terminals and screws made of steel, galvanised and transparently passivated, nominal cross-section 4 mm², nominal voltage 400 V, 5-pole, with connection terminals, connectable cross-section per terminal max. 4x 2.5 mm², 5x 1,5 mm² or 6x 1 mm².
  • Casting resin:
    2-component PUR casting resin, fast curing, perfect hydrolytic resistance, halogen-free, no cracking under electrical or mechanical stress, excellent adhesion to cable materials. Ideal for underground use.
  • Voltage application:
    1 kV immediately after casting
    2 kV wait until cured (approx. 1 hour).
  • Casting resin processing temperature: 0 - 35 °C.
