Interruptor de bomba electrónico Trevitech, tipo Logicpress M
Interruptor de bomba electrónico Trevitech, tipo Logicpress M
SKU:15558735
Precio habitual
Cg. 290.95
Precio habitual
Precio de oferta
Cg. 290.95
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Capacity maximum (m³/hour) slider
5,5
Capacity maximum mhour slider
5.5
Connection size
1"
Cutout pressure
max. pump pressure
Degree of protection
IP65
Maximum ambient temperature
65 °C
Maximum capacity
5,5 m³/hora
Maximum current
10 A
Maximum working pressure
12 barras
Starting pressure
1,5 bares
Type
Logicpress M
Voltage
230 V
Descripción

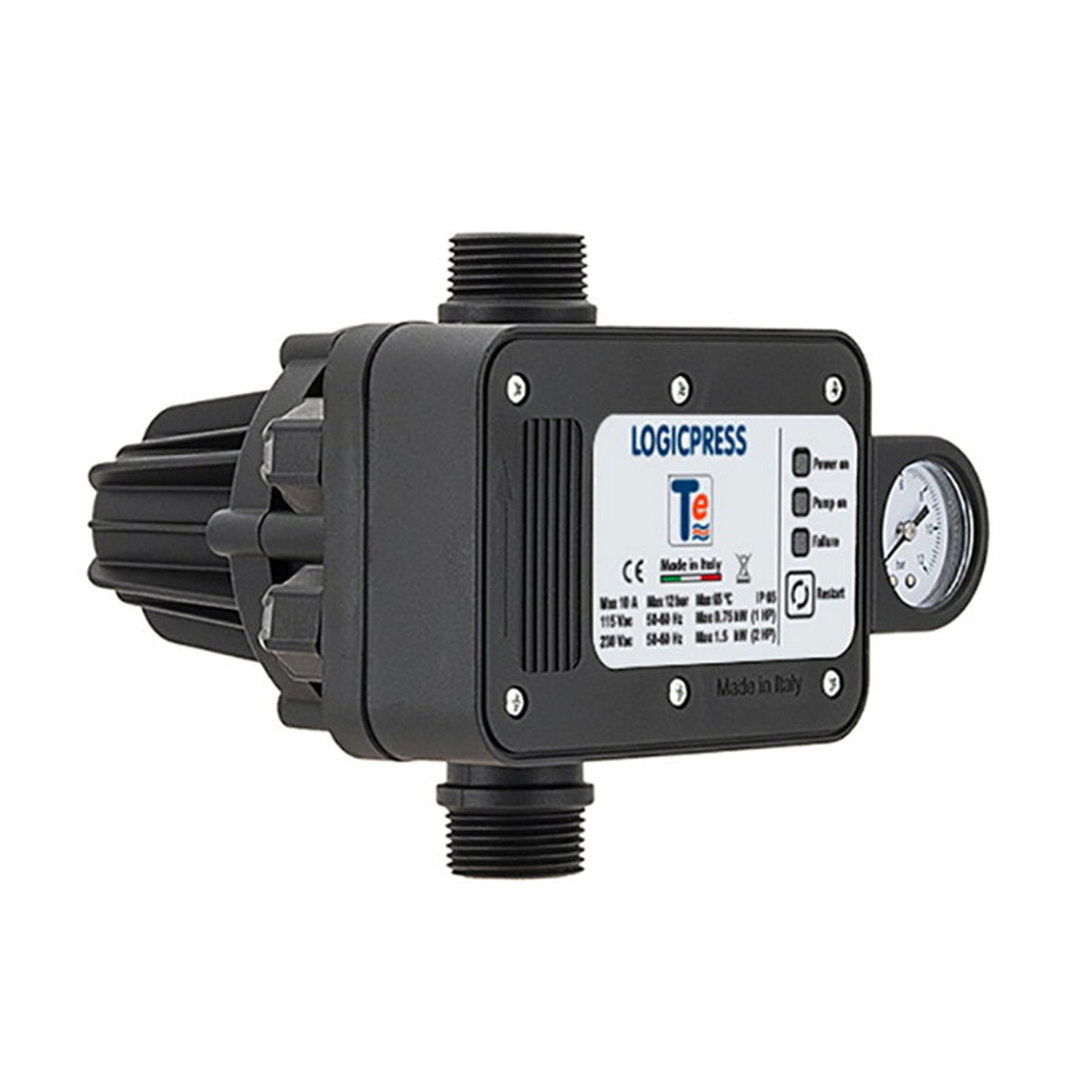

This Trevitech Logicpress M electronic pump switch starts and stops the pump when the taps are turned on and off. The pump switch also stops the pump in the event of a water shortage, preventing it from running dry. This maintenance-free pump switch has an automatic restart feature.
The pump switch, also known as a pump controller, can be used in combination with a centrifugal or a well pump.
The pump switch, also known as a pump controller, can be used in combination with a centrifugal or a well pump.
Pressure gauge
The pump controller has a pressure gauge that allows you to read the current water pressure.Automatic restart
In the event of a water shortage, the dry-run protection will activate and switch off the centrifugal or well pump. Ten times during the first 24 hours after a water shortage, the pump switch will restart the pump for 5 seconds to check if the water shortage has been resolved. The pump switch can also be restarted manually at any time by pressing the ‘Restart’ button.Anti-jamming
If no water is required, the pump controller will not start the pump. If the pump remains idle for 24 consecutive hours, however, the pump controller will start the pump for 5 seconds to prevent the motor shaft from jamming in the bearings or seal.
Cable
Supplied with H07RN-F cable, 3 x 1.5 mm².
