Casquillo de collarín VDL, PVC, 1x pegamento interno, 16 barras, 75 mm, tipo 3
Casquillo de collarín VDL, PVC, 1x pegamento interno, 16 barras, 75 mm, tipo 3
SKU:716219
Precio habitual
Cg. 21.22
Precio habitual
Precio de oferta
Cg. 21.22
Precio unitario
por
Entrega a pedido
Presupuesto
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
75 milímetros
Connection type
adhesivo interno
Diameter
75 milímetros
Eancode
8717284022957
Material
PVC-U (cloruro de polivinilo no plastificado)
Pressure class
16 barras
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL kraagbus, type 3, pvc-u, 1x inwendig lijm, 16 bar, 75 mm
Two badescription en
VDL collar bush, 1x int. glue, 75 mm, 3
Descripción

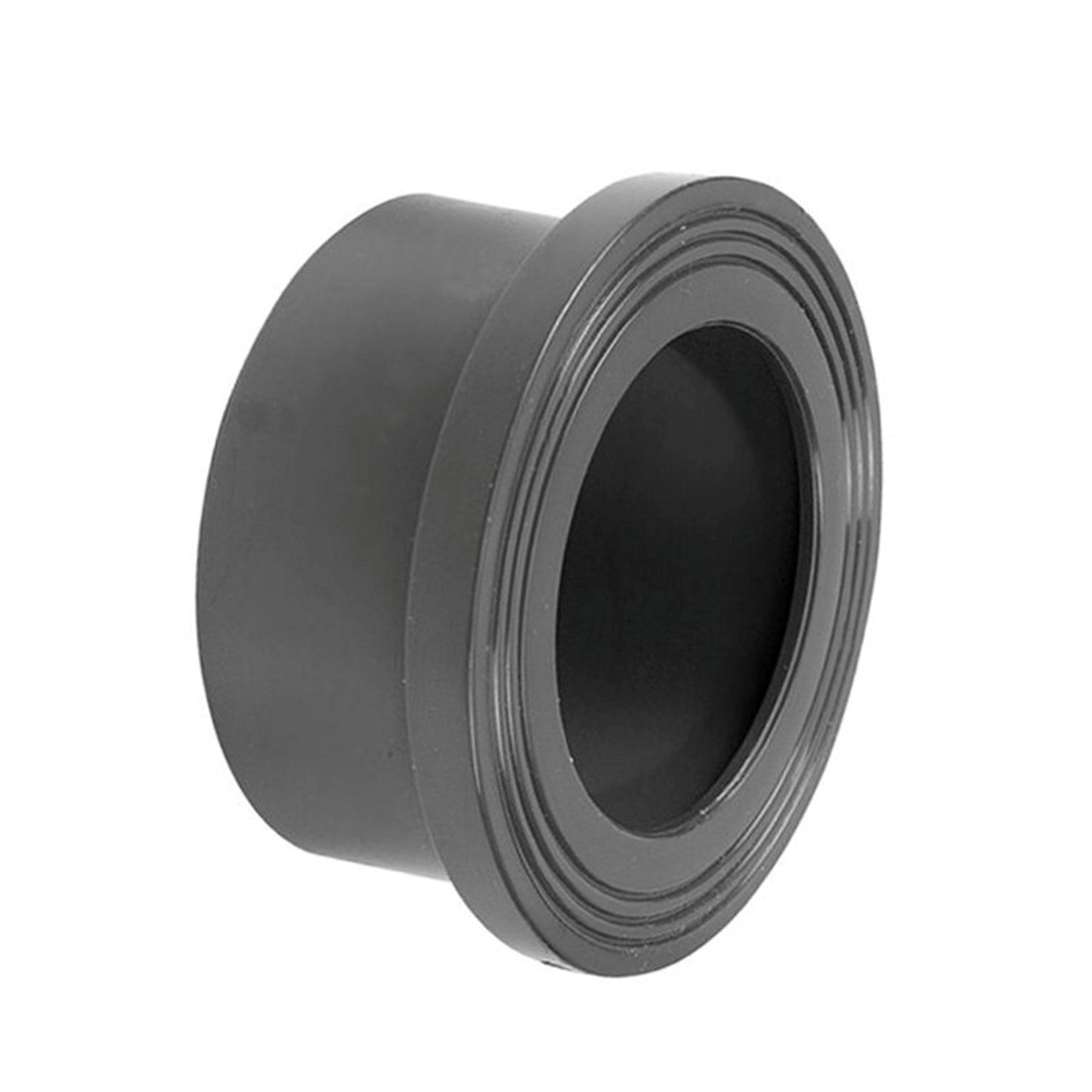

A PVC collar bushing, in combination with a flange and a sealing ring, creates a strong and removable connection to fittings, accessories or other pipes that can be glued into the collar bushing. The collar bushing has an internal diameter of 75 mm. Maximum working pressure 16 bar.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
