Conector roscado VDL, PVC, conexión externa x rosca macho, 16 bar, 50 mm x 1¼"
Conector roscado VDL, PVC, conexión externa x rosca macho, 16 bar, 50 mm x 1¼"
SKU:716125
Precio habitual
Cg. 9.81
Precio habitual
Precio de oferta
Cg. 9.81
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1¼", 50 mm
Connection type
Rosca macho x pegamento externo
Diameter
1¼", 50 mm
Eancode
8717284022155
Material
PVC-U (cloruro de polivinilo no plastificado)
Pressure class
16 barras
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzet-draadeind, pvc-u, uitw. lijm x bu.dr., 50 mm x 1¼"
Two badescription en
VDL insert thr. socket, ext. bond x m.thr., 50 mm x 1¼"
Descripción

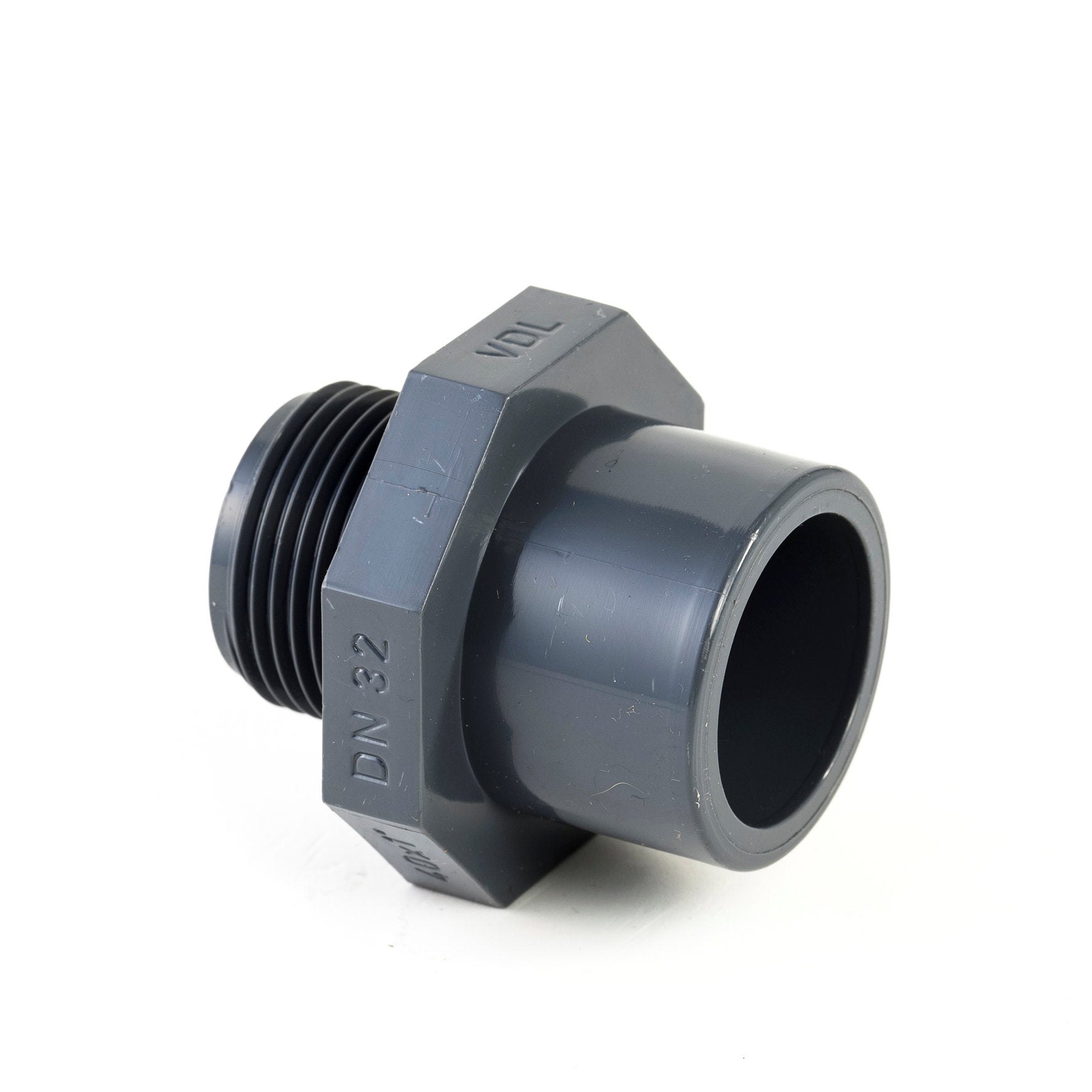

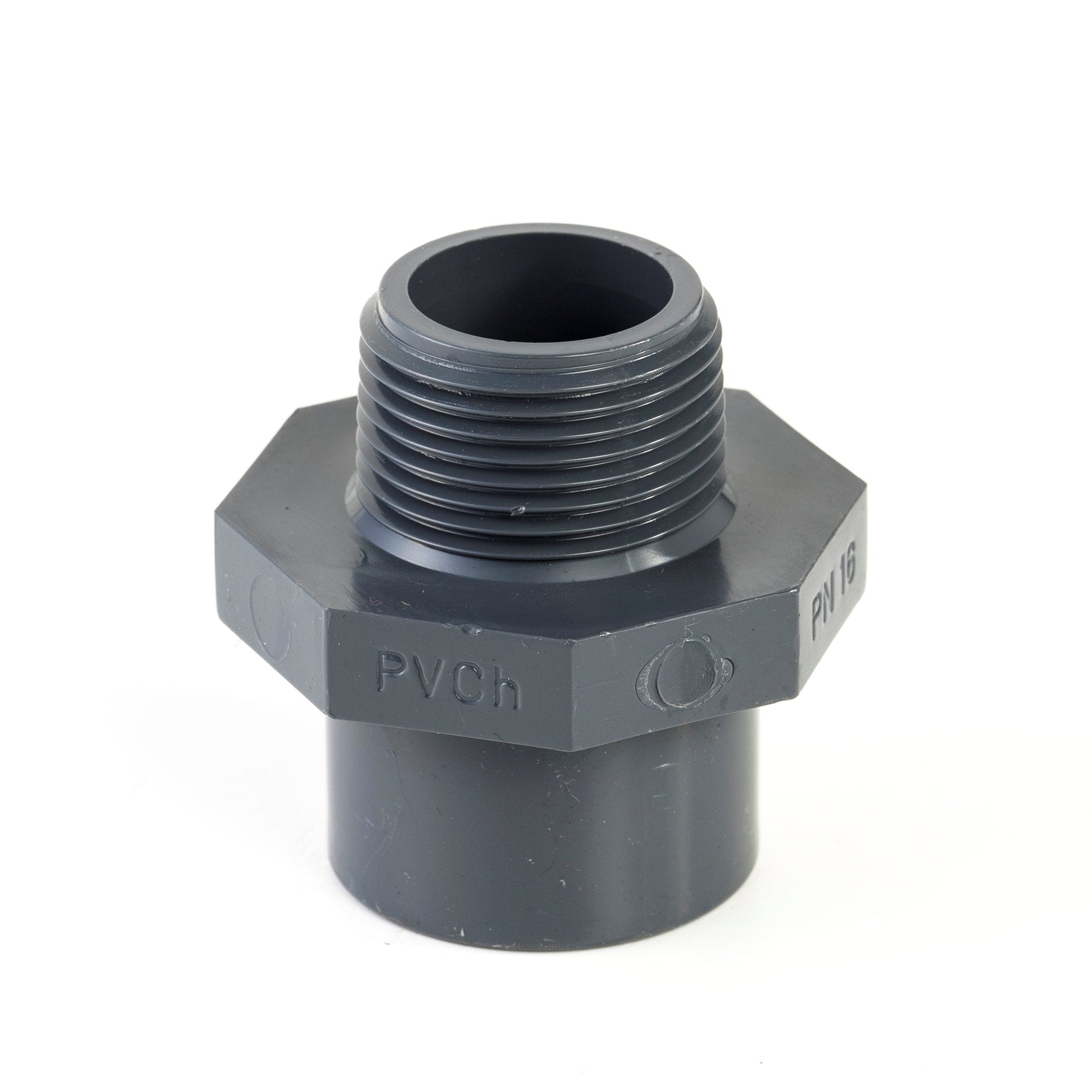

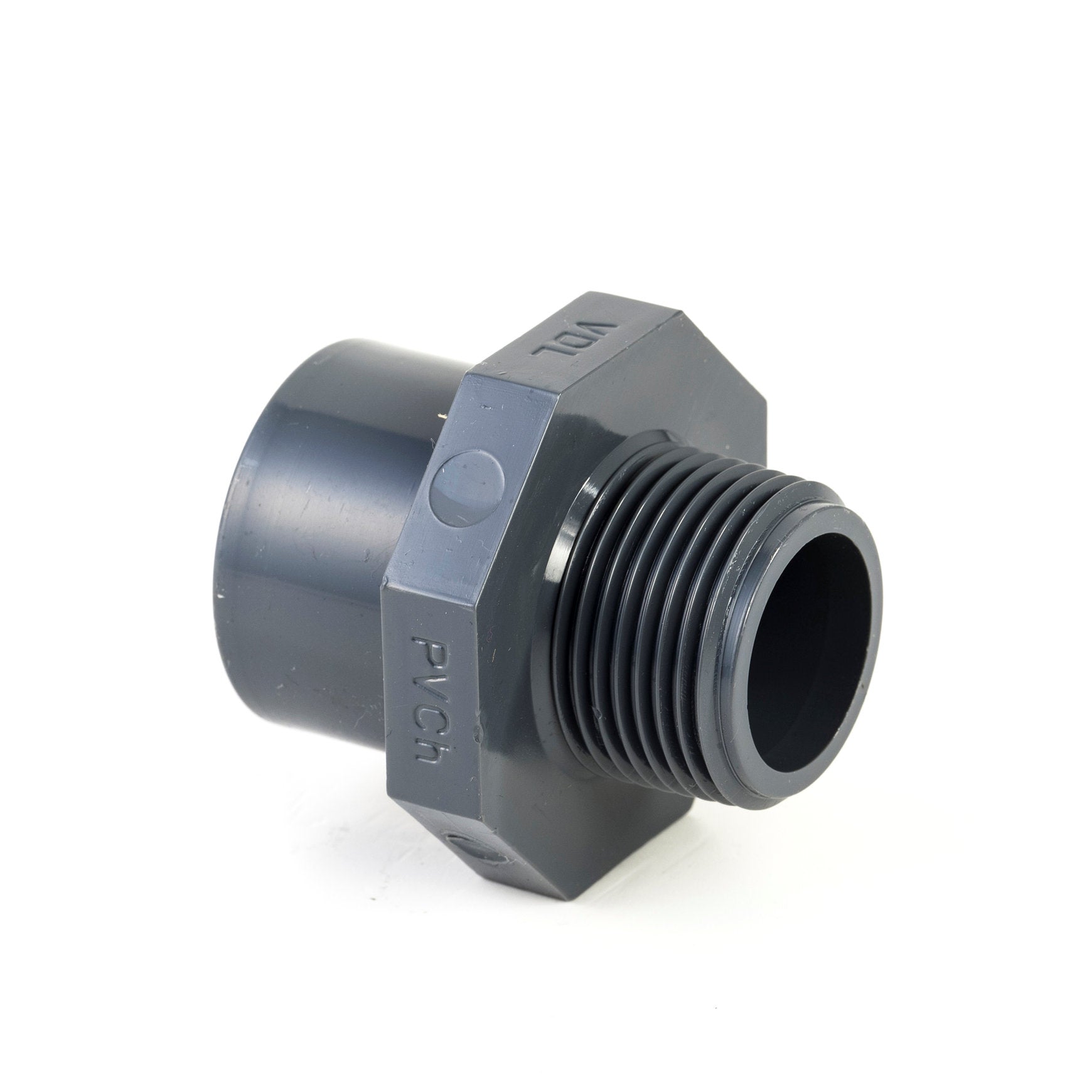

This PVC male threaded adaptor fits into an accessory and includes a tightening nut. The maximum working pressure of this male threaded adaptor is 16 bar. This male threaded adaptor has a diameter of 50 mm, glue spigot and 1¼” male thread.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
