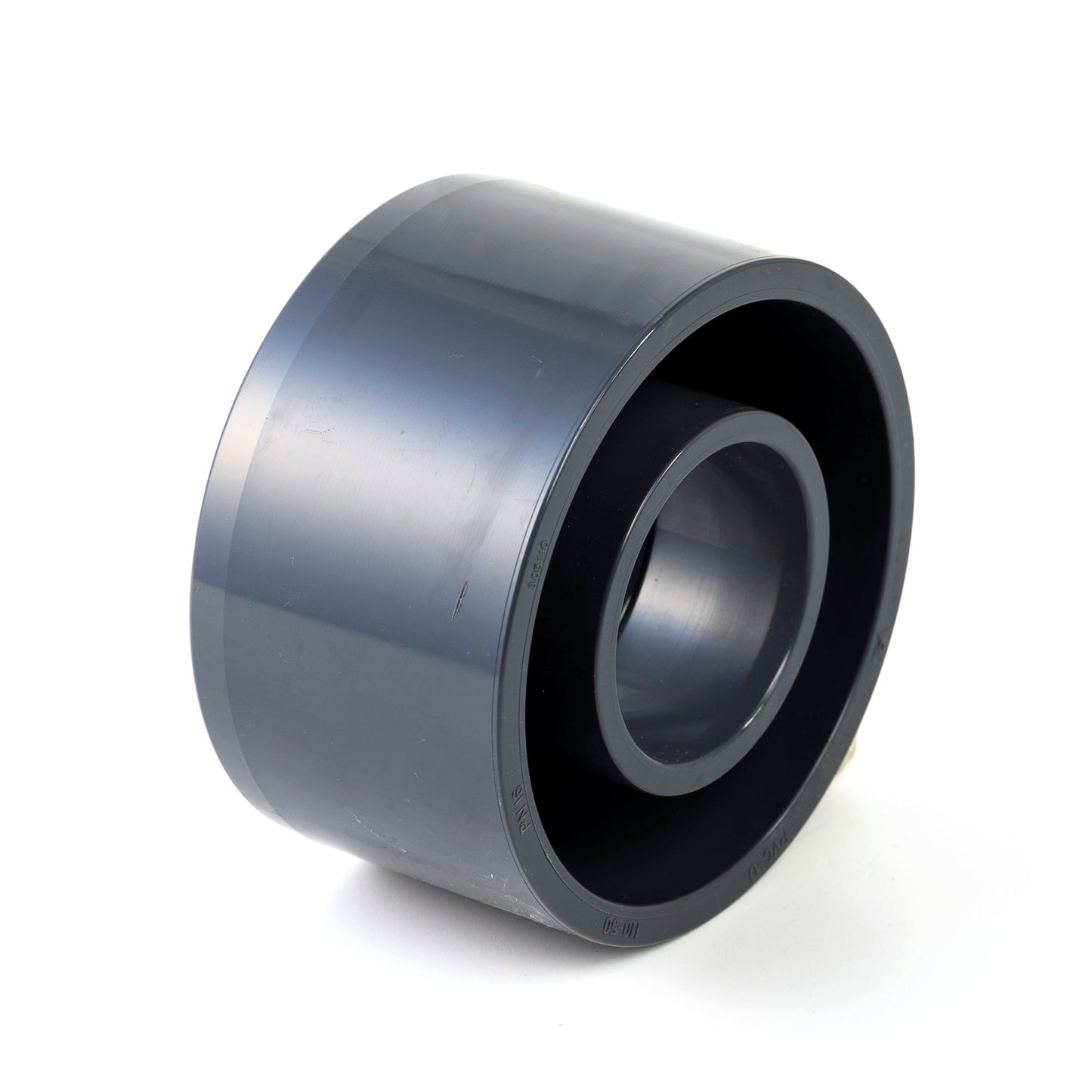

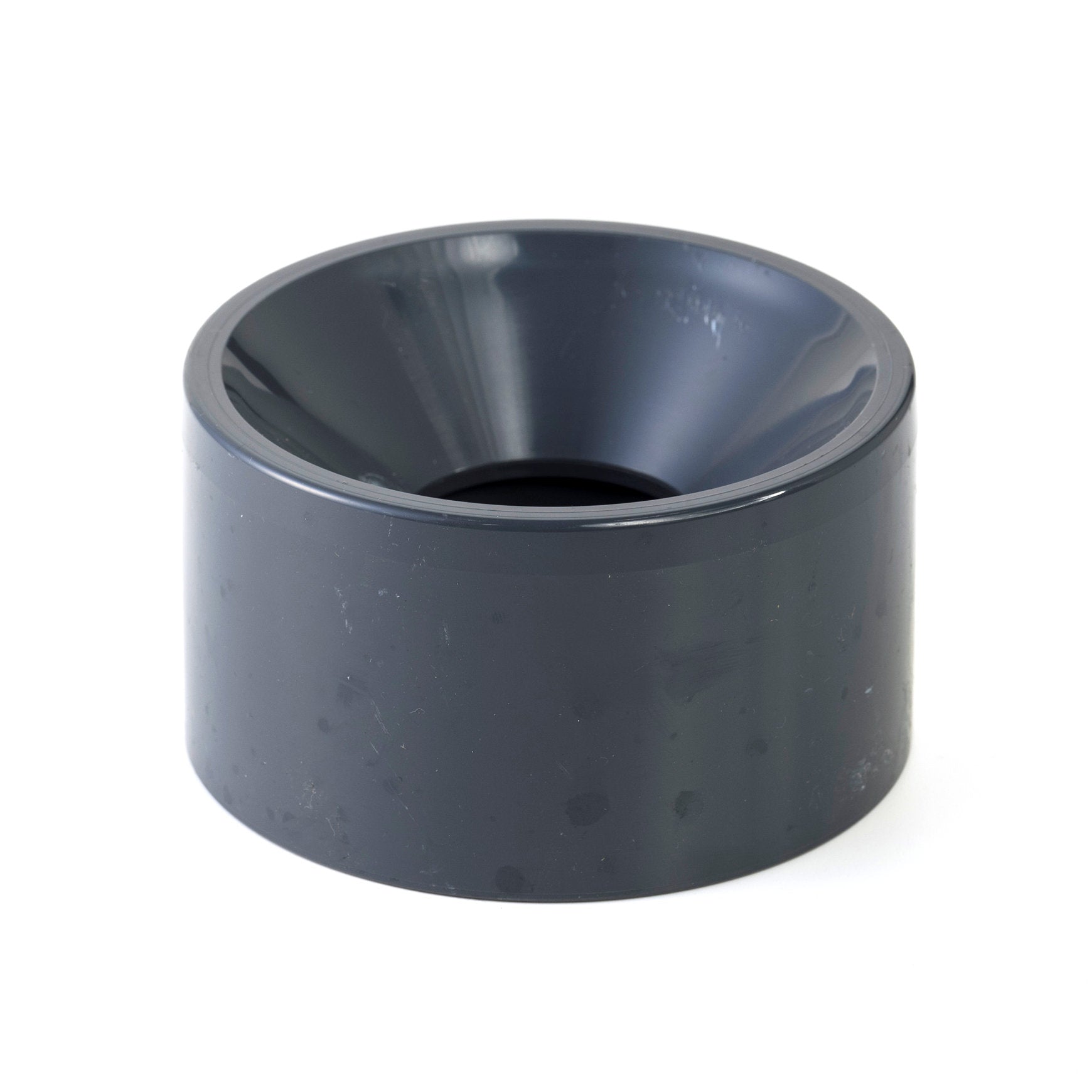

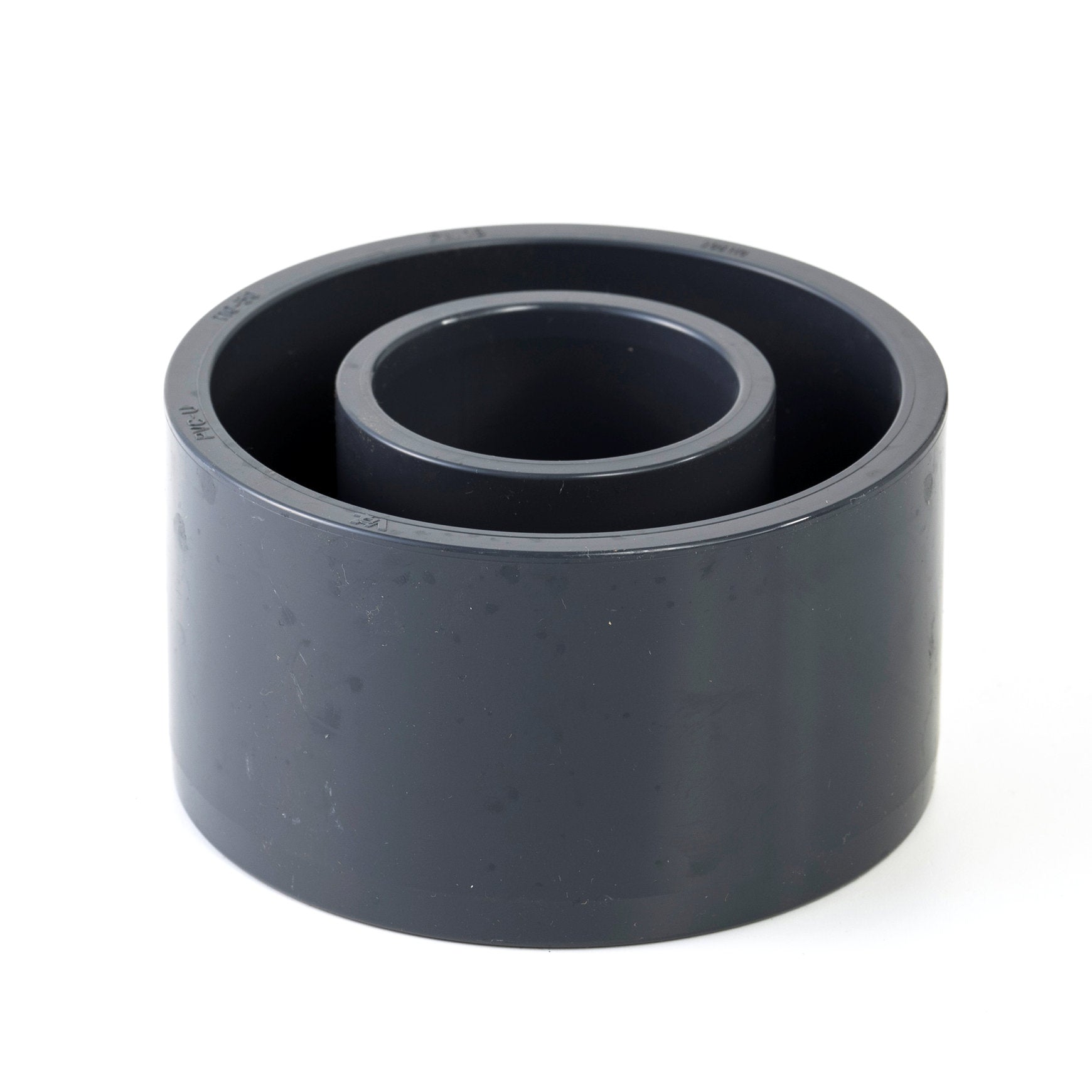

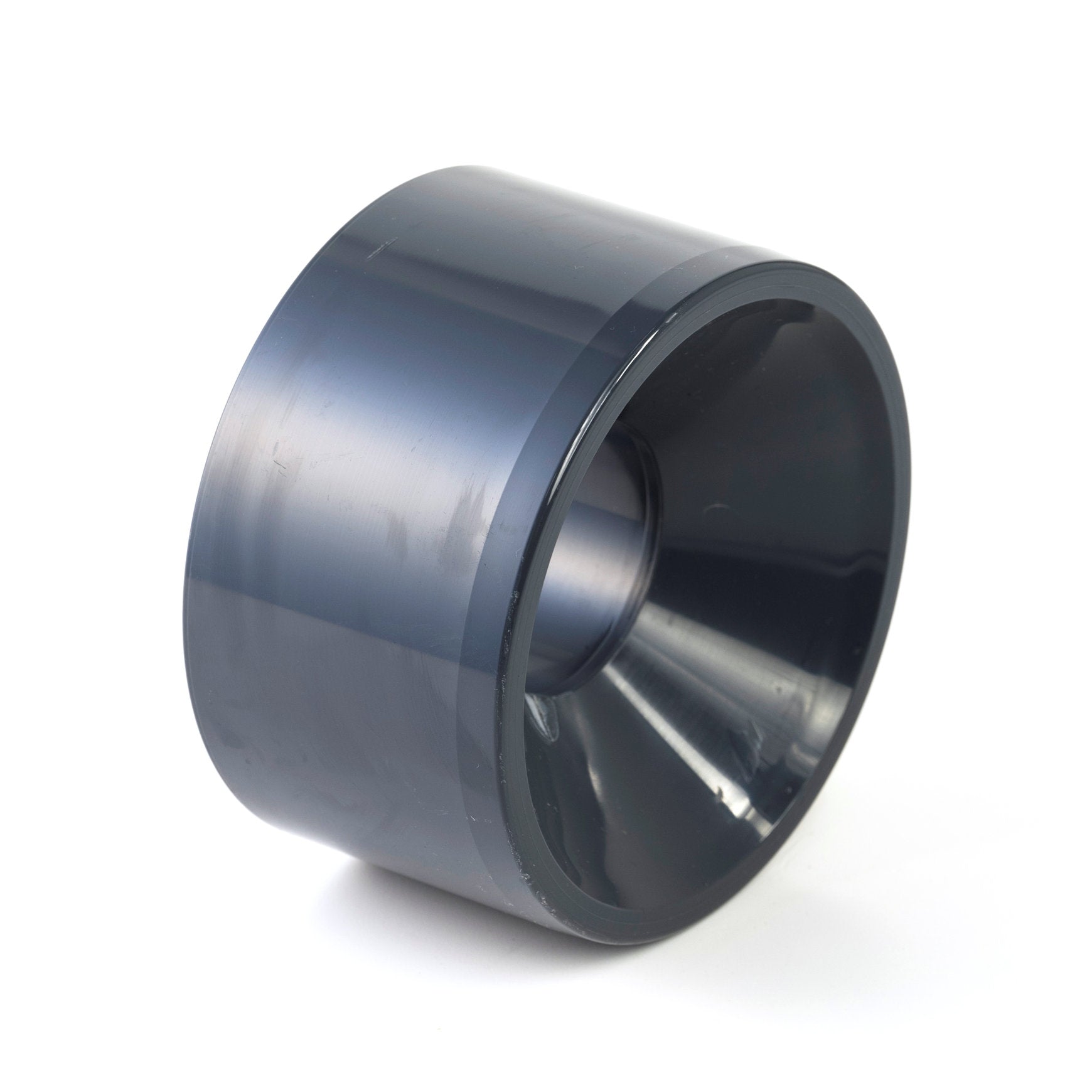

Anillo reductor VDL, PVC, encolado exterior x interior, 16 bar, tipo B, 110 x 63 mm
Anillo reductor VDL, PVC, encolado exterior x interior, 16 bar, tipo B, 110 x 63 mm
SKU:715985
Precio habitual
Cg. 38.97
Precio habitual
Precio de oferta
Cg. 38.97
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
110 milímetros, 63 milímetros
Connection type
pegamento interno x externo
Diameter
110 milímetros, 63 milímetros
Eancode
8717284019919
Material
PVC-U (cloruro de polivinilo no plastificado)
Pressure class
16 barras
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL verloopring, pvc-u, uitw x inw lijm, 16 bar, 110 x 63 mm
Two badescription en
VDL reducing ring, ext. x int. glue, B, 110 x 63 mm
Descripción
For a smaller connection, a PVC reducing ring can be glued to a PVC pipe. The maximum working pressure of this reducing ring is 16 bar. The diameter is 110 mm, glue spigot, and 63 mm glue socket.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
