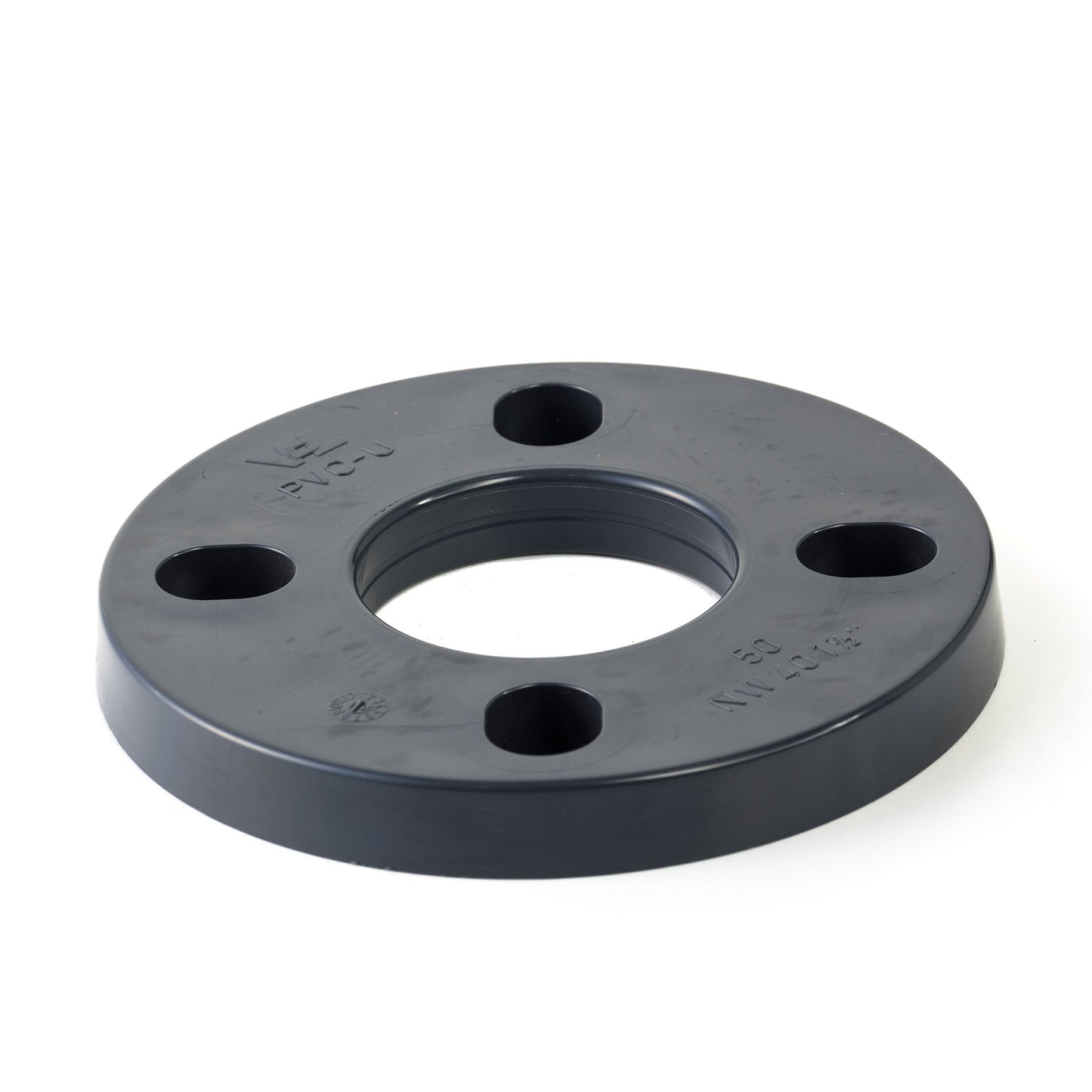

Brida deslizante VDL, PVC, 10 bar, tipo B, 50 mm
Brida deslizante VDL, PVC, 10 bar, tipo B, 50 mm
SKU:716234
Precio habitual
Cg. 25.36
Precio habitual
Precio de oferta
Cg. 25.36
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
50 milímetros
Diameter
50 milímetros
Drill hole diameter
18 mm
Eancode
8717284022834
Inside size
62 mm
Material
PVC-U (cloruro de polivinilo no plastificado)
Outer size
150 mm
Pitch circle diameter
101 mm, 110 mm
Pressure class
10 barras
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL overschuifflens, type B, pvc-u, 10 bar, 50 mm
Two badescription en
VDL sliding flange, type B, 50 mm
Type
B
Descripción
A PVC slip-on flange, in combination with a PVC collar bushing and sealing ring, creates a strong and removable connection to fittings, accessories or other pipes. The maximum working pressure of this slip-on flange is 10 bar, the diameter is 50 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
