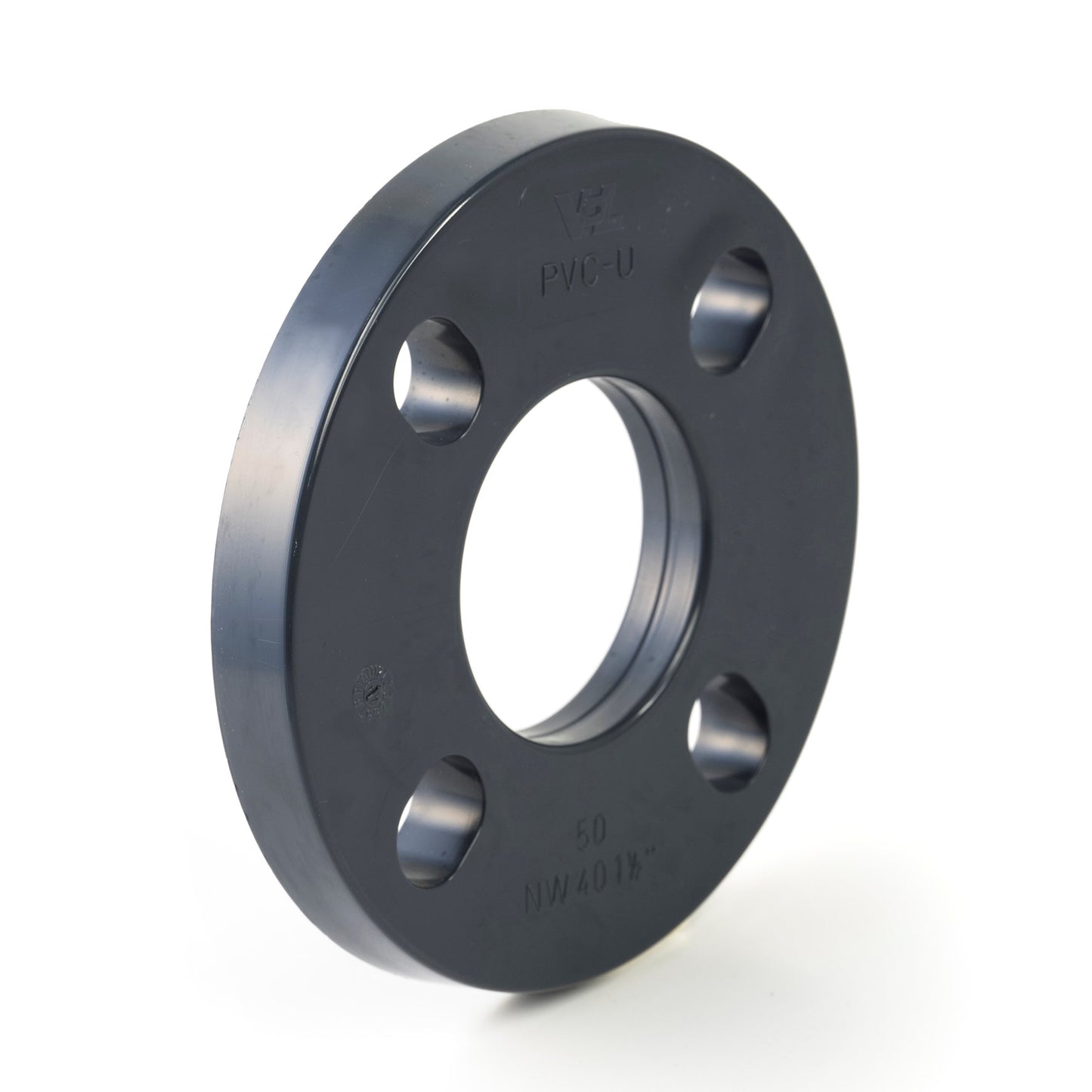

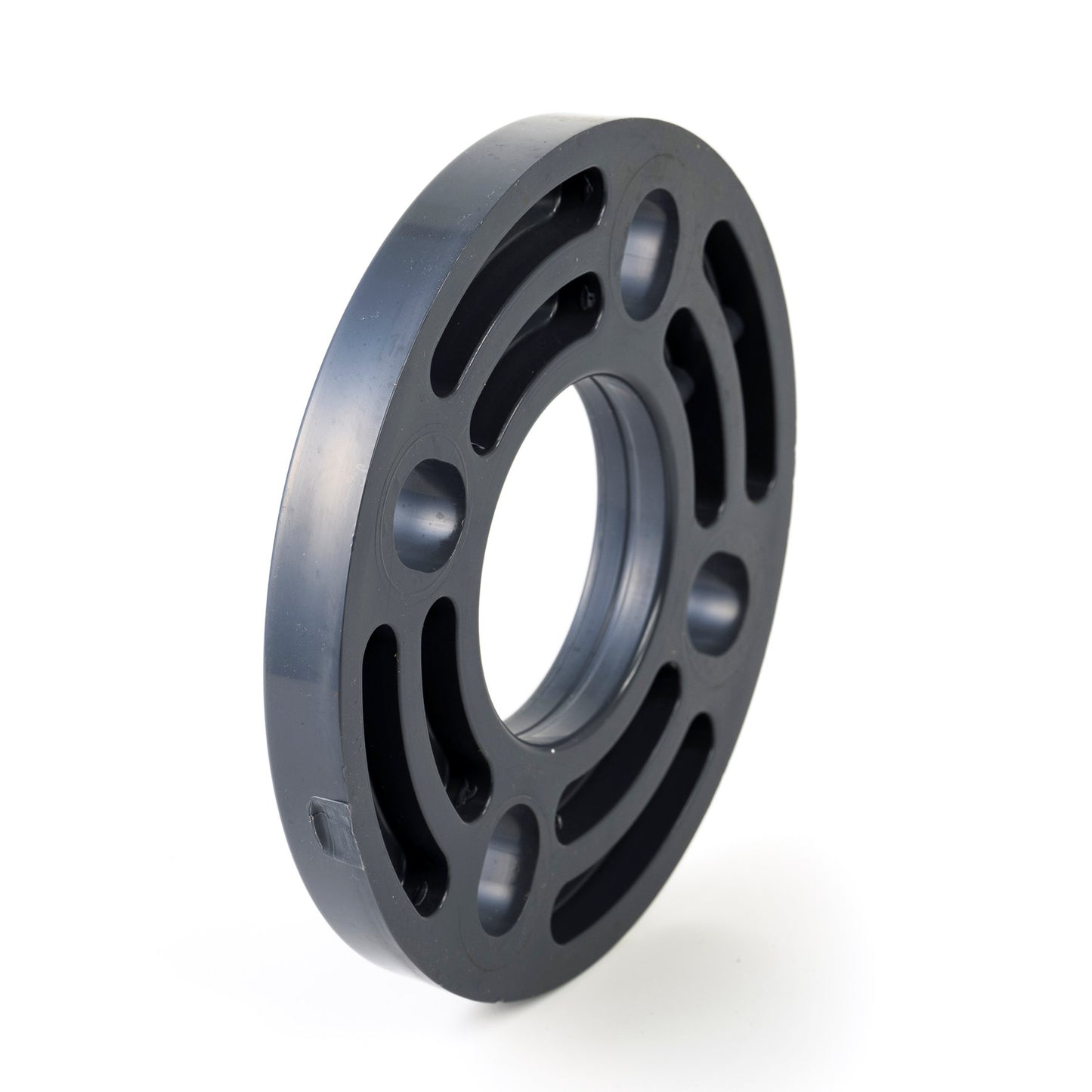

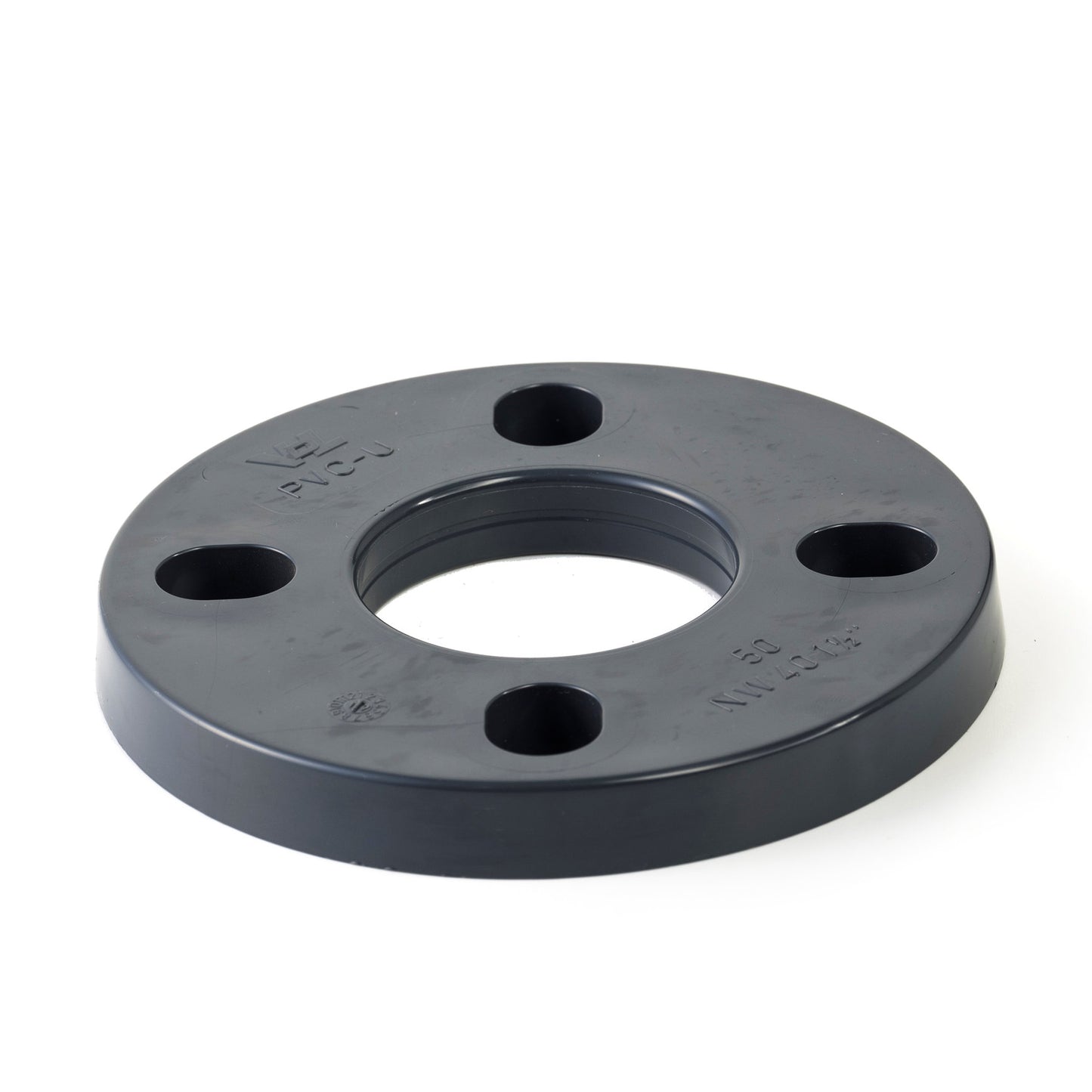

Brida deslizante VDL, PVC, 10 bar, tipo B, 63 mm
Brida deslizante VDL, PVC, 10 bar, tipo B, 63 mm
SKU:716235
Precio habitual
Cg. 26.09
Precio habitual
Precio de oferta
Cg. 26.09
Precio unitario
por
En existencias
No se pudo cargar la disponibilidad de retiro
Presupuesto
Connection size
63 milímetros
Diameter
63 milímetros
Drill hole diameter
18 mm
Eancode
8717284022872
Inside size
78 mm
Material
PVC-U (cloruro de polivinilo no plastificado)
Outer size
165 mm
Pitch circle diameter
120.5 mm, 124 mm
Pressure class
10 barras
Quality mark
NEN-EN-ISO 9001:2015
Type
B
Descripción
A PVC slip-on flange, in combination with a PVC collar bushing and sealing ring, creates a strong and removable connection to fittings, accessories or other pipes. The maximum working pressure of this slip-on flange is 10 bar, the diameter is 63 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
