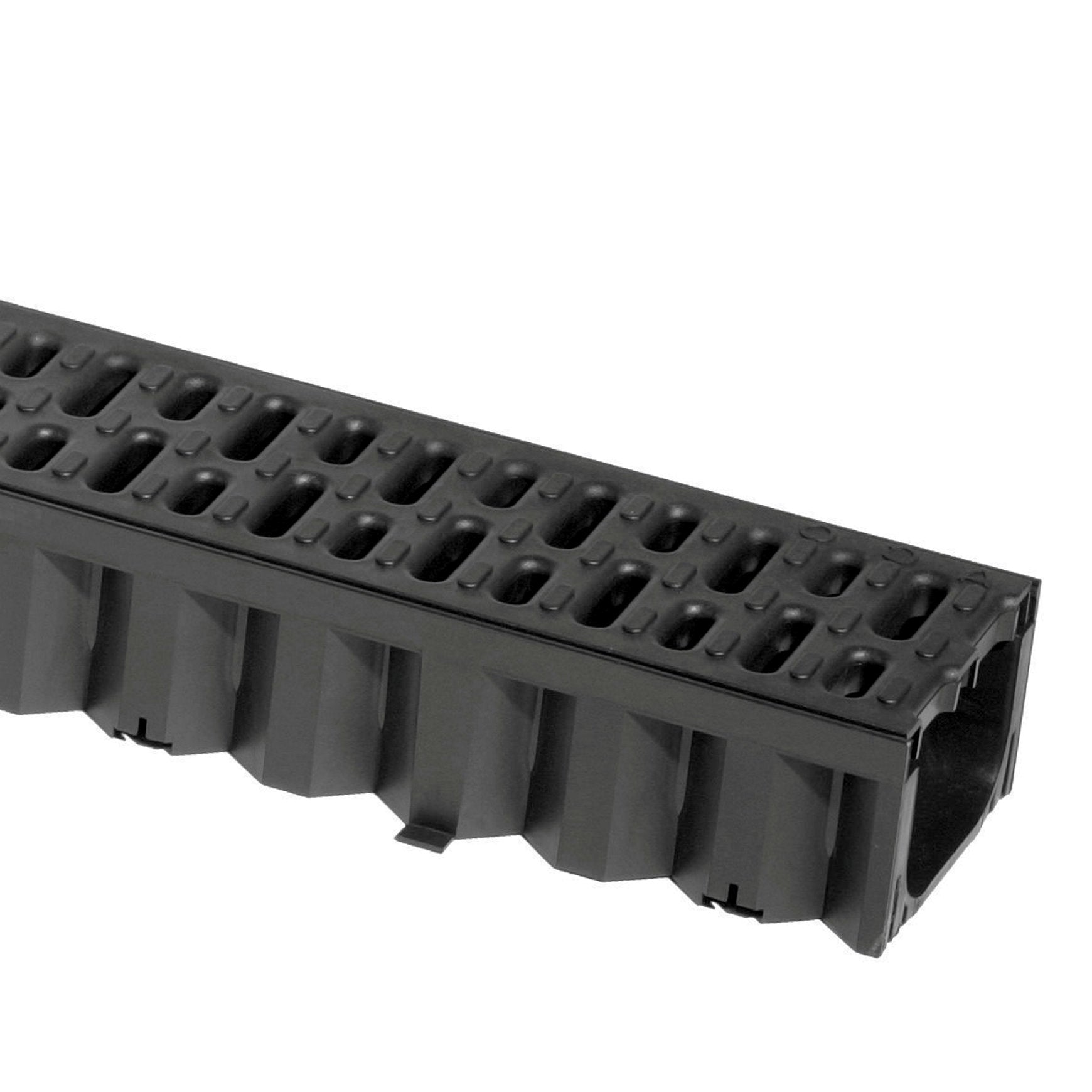

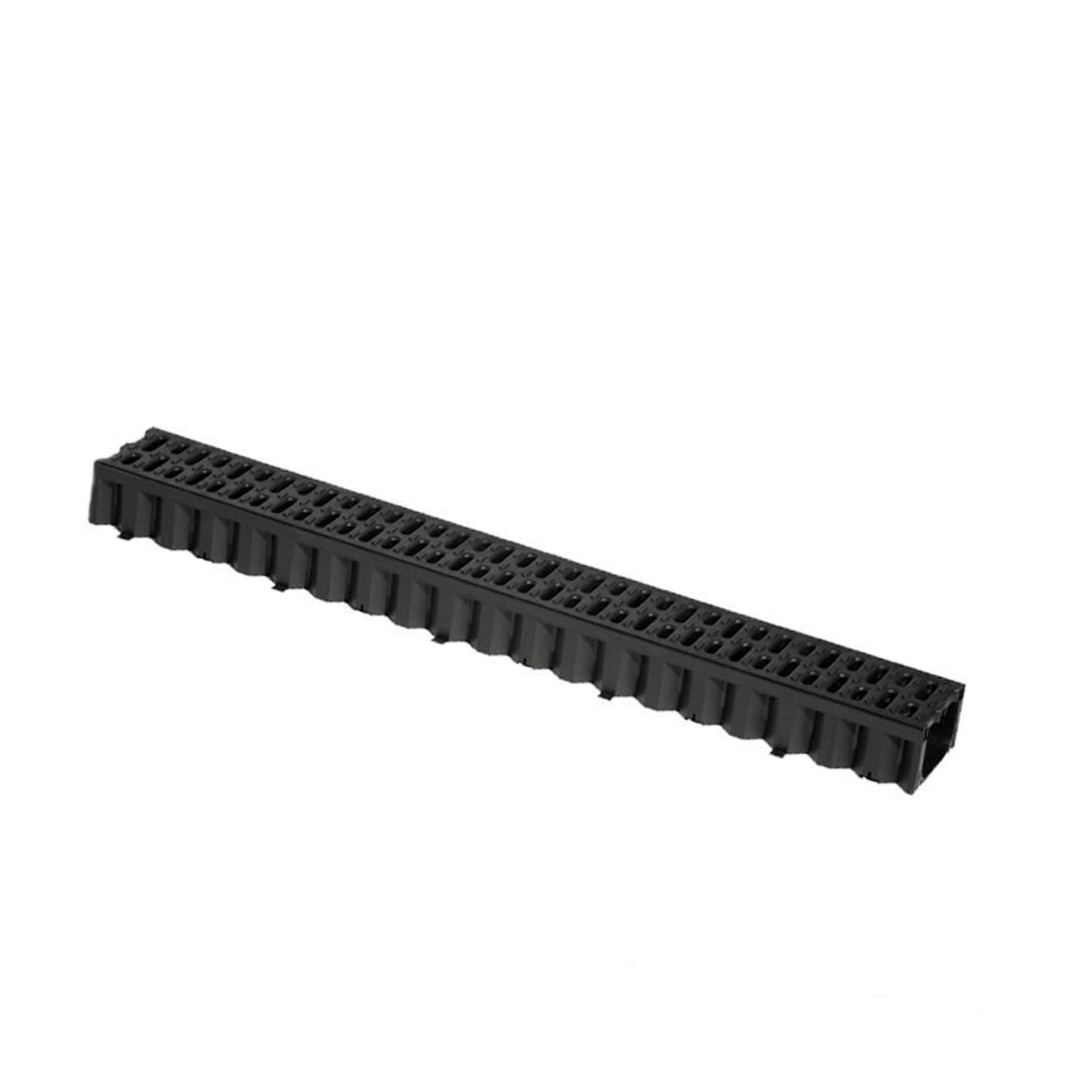

ACO drainage channel, type Hexaline, PE, incl. pe slotted grating, A15, 100 x 12,5 x 8,2 cm

ACO drainage channel, type Hexaline, PE, incl. pe slotted grating, A15, 100 x 12,5 x 8,2 cm

SKU:255207

Cg. 69.43
Cg. 69.43
Sale Sold out
tax included
In stock
View full details

Specifications

Class
A15
Complementary products v2
ProductListDrop
Eancode
4002626503206
Height
8.2 cm
Length
100 cm
Load class
15 kN
Material
pe (polyetheen)
Type
Hexaline
Width
12.9 cm

Description

This ACO Hexaline drainage channel is suitable for rainwater inlet and outlet. The ACO Hexaline drainage channel system kan be used around the house or in areas with low traffic load.

Advantages of drainage channels

  • No puddle formation on the lawn, border, patio, or driveway.
  • Less pollution and maintenance.
  • Can be combined with infiltration.

Applications of the ACO Hexaline drainage channels

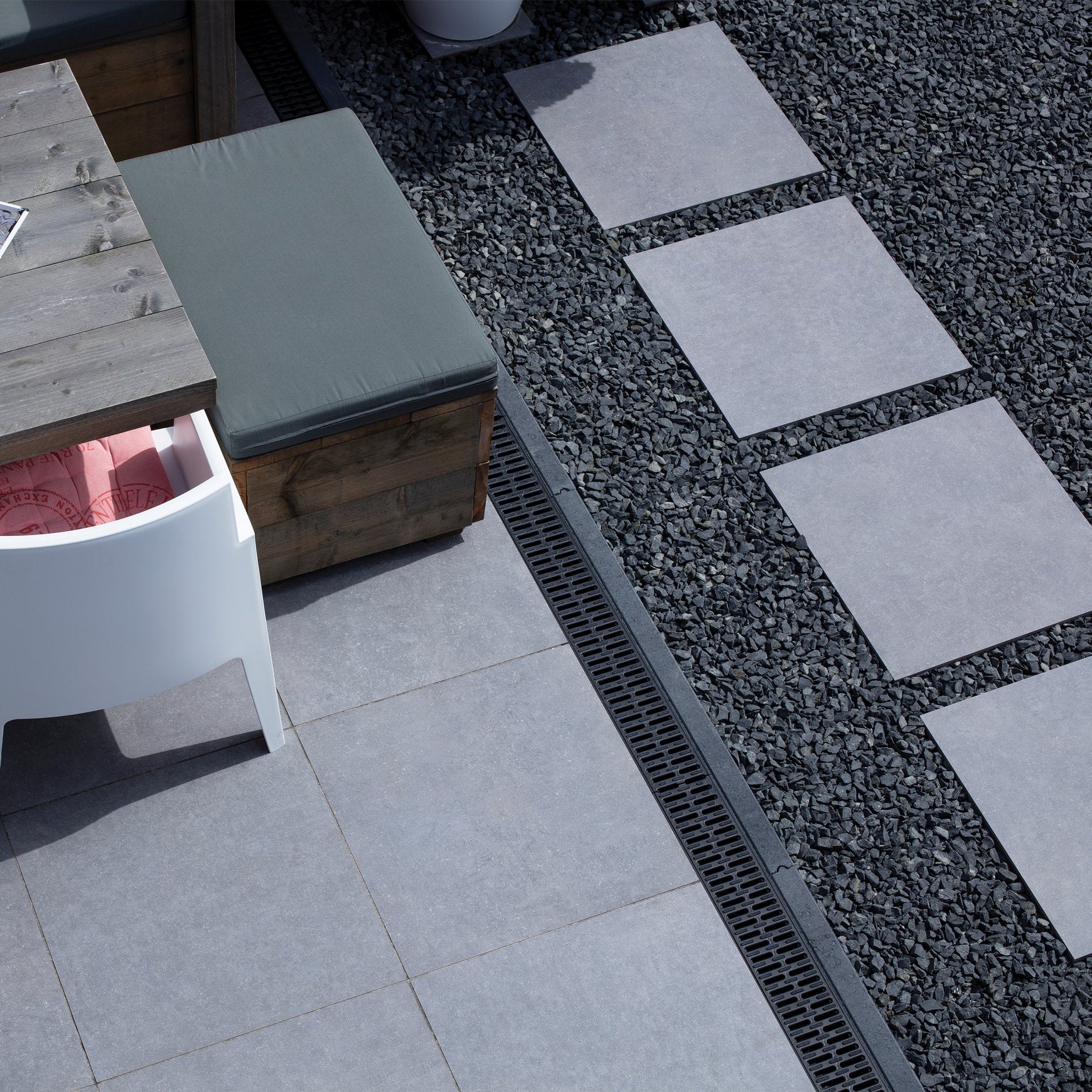

  • On patios or driveways.
  • In combination with both small and large paving stones.
  • As a separation between patios and lawns or borders.
  • In combination with infiltration systems.
In addition to this drainage channel, the Hexaline range includes various accessories such as:
  • end pieces,
  • sump units,
  • corner elements,
  • slotted grating.

Material

The drainage channel is made of PE (polyethylene) with PE slotted grating.

Load class

This drainage system is suitable for load class A-15 kN, and is commonly used in pedestrian and bicycle paths, schoolyards and verges and gardens.

Assembly

With these Hexaline drainage channels you can choose between a side outlet or a bottom outlet. The linear drain has knockouts on the bottom, which can be easily punched out, allowing a bottom outlet to be connected. The drain can be connected to a sewer, a ditch, or an infiltration system.

For a string length of more than 5 meters with a side outlet or more than 8 meters with a bottom outlet, it is recommended to install at least one additional outlet.

Want to buy an ACO Hexaline drainage channel or need more information?

The desired ACO Hexaline drainage channel can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure what the optimal drainage channel is for your situation? Contact one of our specialists for non-binding advice.
