ACO drainage channel, type Slotline/Hexaline, PE, incl. PE slot grate, A15, 100 x 12.5 x 14.6 cm
ACO drainage channel, type Slotline/Hexaline, PE, incl. PE slot grate, A15, 100 x 12.5 x 14.6 cm
SKU:255329
Regular price
Cg. 141.85
Regular price
Sale price
Cg. 141.85
Unit price
per
Delivery on request
Specifications
Assortments
wca1010131
Class
A15
Complementary products v2
ProductListDrop
Eancode
4002626209313
Height
14.6 cm
Length
100 cm
Load class
15 kN
Material
pe (polyetheen)
Type
Hexaline
Width
12.9 cm
Description
This ACO Hexaline channel drain with Slotline slotted channel is suitable for rainwater collection and drainage. The ACO Hexaline drainage channel system can be used around the house or in areas with low traffic load.

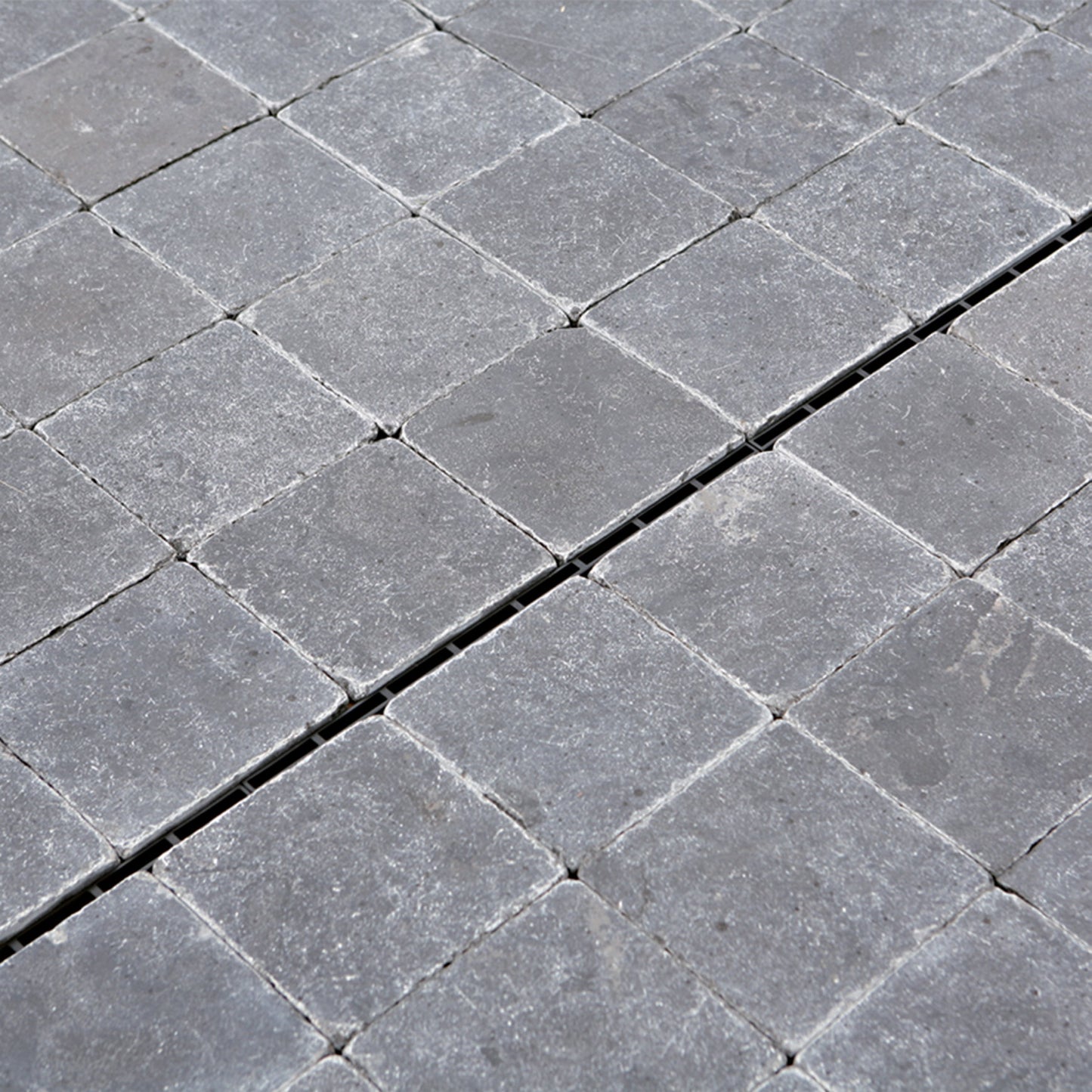

The narrow slotted channel attached to the drain (slot width just 16mm), is ideal for where you want a minimalistic look, such as your patio, swimming pool or other applications outside your property.
The narrow slot makes it safe for children and the drain is easy to walk on. The slotted channel is suitable for chlorinated water, making it ideal for use with swimming pools.
The channel drain has 2 x 500 mm slotted channels that can easily be clicked together onto the drain.
For a string length of more than 5 metres with a side outlet or more than 8 metres with a bottom outlet, it is recommended to install at least one additional outlet.
The narrow slotted channel attached to the drain (slot width just 16mm), is ideal for where you want a minimalistic look, such as your patio, swimming pool or other applications outside your property.
The narrow slot makes it safe for children and the drain is easy to walk on. The slotted channel is suitable for chlorinated water, making it ideal for use with swimming pools.
Advantages of linear drainage
- No puddle formation on the lawn, border, patio, or driveway.
- Less pollution and maintenance.
- Can be combined with infiltration.
Applications of the ACO Hexaline drainage channels
- Patios or driveways.
- In combination with both small and large paving stones.
- As a separation between patios and lawns or borders.
- In combination with infiltration systems.
- end pieces,
- sump units,
- slotted grating,
- corner elements.
Load class
This drainage system is suitable for load class A-15 kN, and is commonly used in pedestrian and bicycle paths, schoolyards and verges and gardens.Installation
With these Hexaline channel drains you can choose between a side outlet or a bottom outlet. The channel drain has knockouts on the bottom, which can be easily punched out, allowing a bottom outlet to be connected. The drain can be connected to a sewer pipe, a ditch, or an infiltration system.The channel drain has 2 x 500 mm slotted channels that can easily be clicked together onto the drain.
For a string length of more than 5 metres with a side outlet or more than 8 metres with a bottom outlet, it is recommended to install at least one additional outlet.
Do you want to buy an ACO Hexaline channel drain or need more information?
The desired ACO channel drain can be ordered easily and quickly via our website or purchased in one of our branches. Are you not yet sure linear drainage system is best for your situation? Contact one of our rainwater drainage specialists for advice without obligation.
