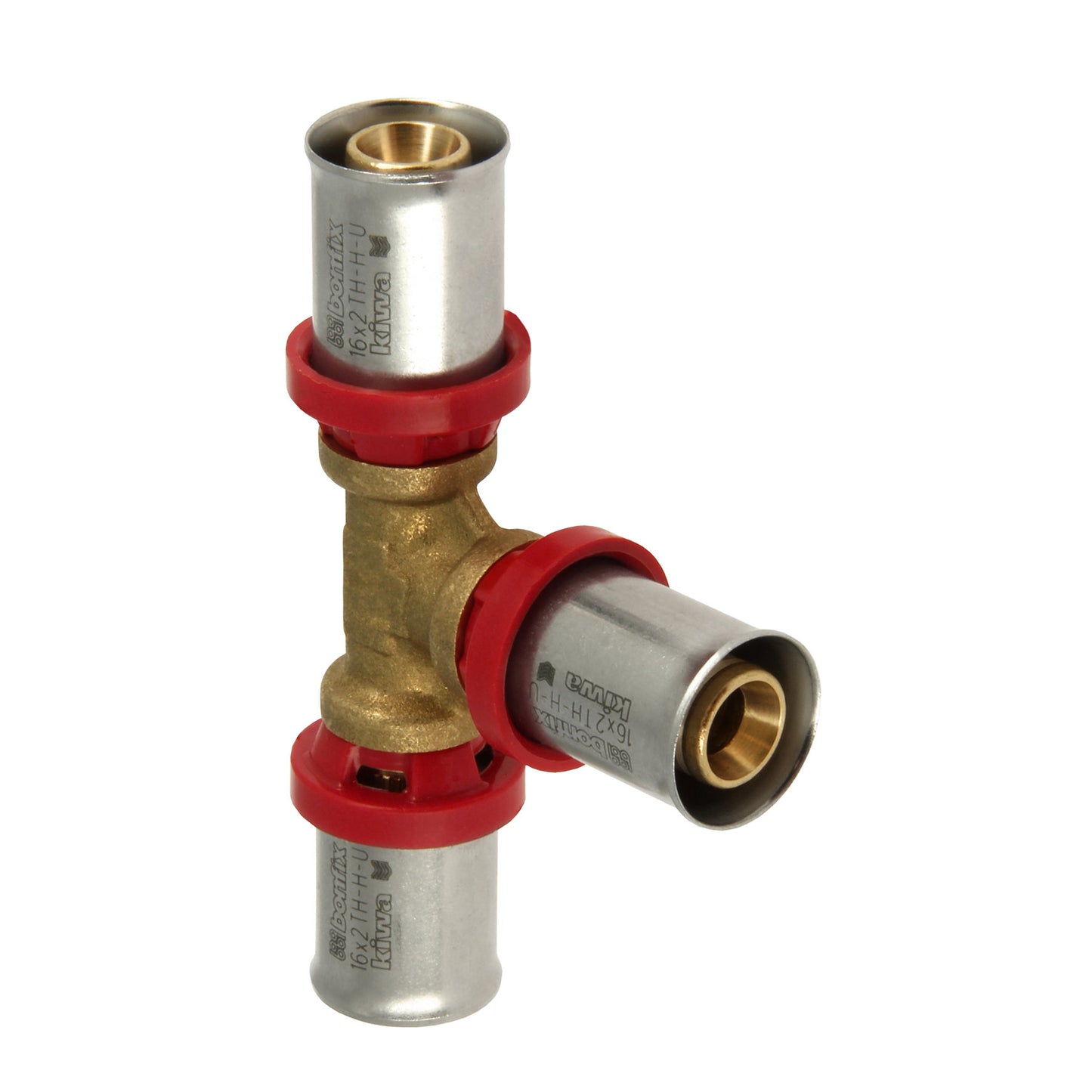

Bonfix Alu press T-piece 90°, Kiwa, 3x press, 16 mm
Bonfix Alu press T-piece 90°, Kiwa, 3x press, 16 mm
SKU:15148871
Regular price
Cg. 21.67
Regular price
Sale price
Cg. 21.67
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Angle
90 °
Connection size
16 mm
Connection type
press
Diameter
16 mm
Eancode
8717845019778
Material
brass
O-ring
EPDM
Oring
EPDM
Quality mark
Kiwa, KOMO
Type
Alu press
Description
This Bonfix Alu press 90° T-piece is suitable for water, heating, and cooling systems.
In addition to this supply pipe, the Bonfix Alu press range includes various items such as:
The installation is done in just a few steps:
In addition to this supply pipe, the Bonfix Alu press range includes various items such as:
- Multi layer pipes.
- Tools.
Properties
This Bonfix Alu-press pipe is suitable for a maximum constant temperature between -20 °C and 90 °C and a maximum working pressure of 10 bar.Material
- Housing: brass.
- Press sleeve: stainless steel 304.
Assembly
The Bonfix tool must be used for pressing the coupling. The couplings up to 32 mm are equipped with a colored ring and can be pressed using a hand tool. Thanks to the Leak Before Pressure feature, unpressed connections are immediately detected during a pressure test.The installation is done in just a few steps:
- Cut the pipe to the correct length with a pipe cutter and deburr the ends to prevent a noisy pipe.
- Slide the pipe into the press fitting until it is visible in the inspection window.
- Place the fitting with the pipe in the pressing jaws and start the pressing process.
