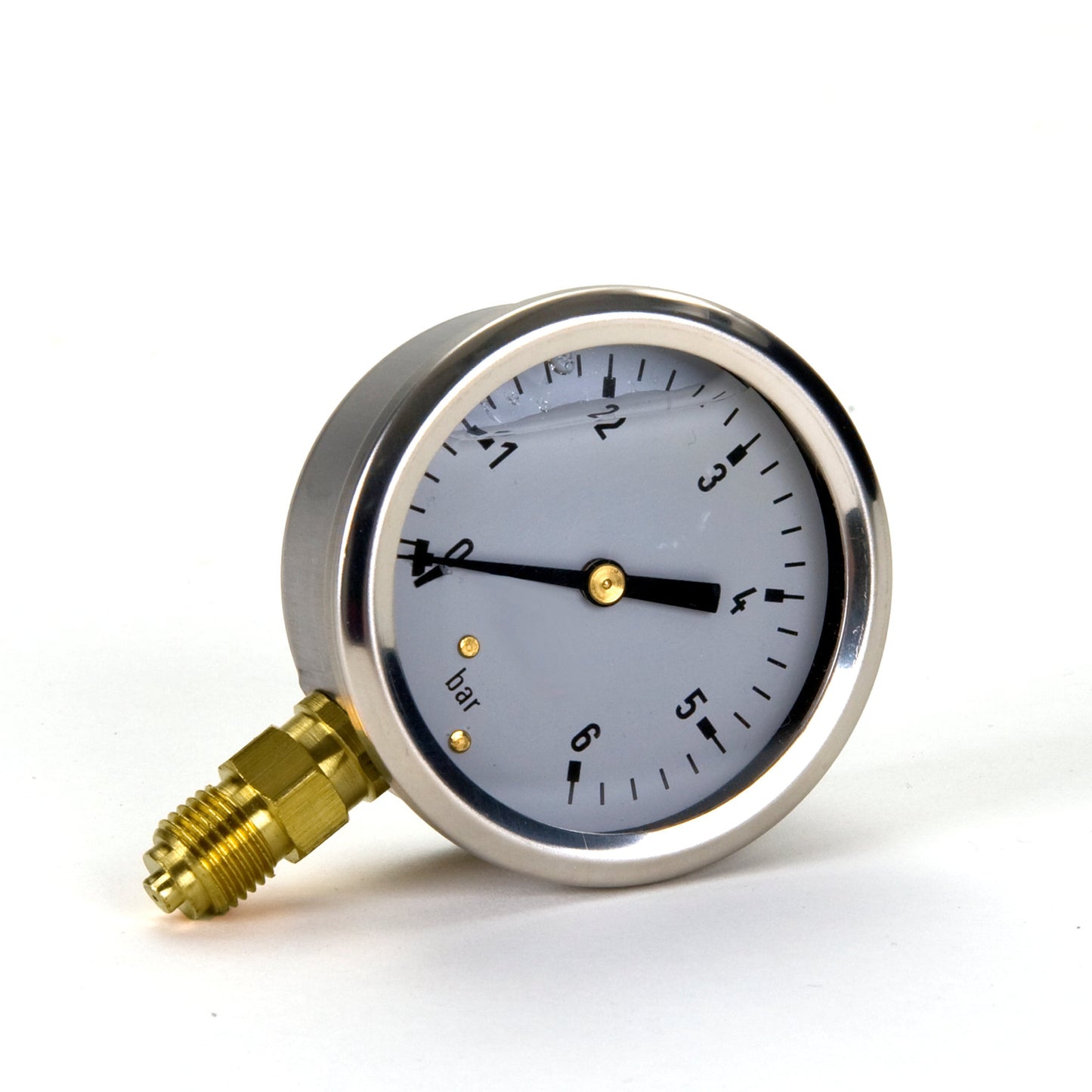

Bourdon tube pressure gauge with bottom connection, glycerine filling, 0 - 6 bar
Bourdon tube pressure gauge with bottom connection, glycerine filling, 0 - 6 bar
SKU:792693
Regular price
Cg. 66.42
Regular price
Sale price
Cg. 66.42
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca6100025
Complementary products v2
ProductListDrop
Connection size
¼"
Connection type
male thread
Diameter
63 mm
Material
ss 304 (stainless steel)
Measuring range
0 - 6 bar
Description
The Bourdon-tube pressure gauge can be used to measure the water pressure in a system. This manometer, also known as a pressure gauge, uses the Bourdon tube principle. The system pressure is shown by a needle on the dial.
Measuring pressure in a system is important to monitor the quality of the process, but also to detect any leaks.
This pressure gauge is filled with glycerine, making it ideal for measurements where large pressure surges, vibrations and shocks occur. The glycerine serves to absorb the pressure in the gauge, thus preventing wear. Another advantage of a pressure gauge with glycerine is that it guarantees the readability of the applied pressure.
Measuring pressure in a system is important to monitor the quality of the process, but also to detect any leaks.
This pressure gauge is filled with glycerine, making it ideal for measurements where large pressure surges, vibrations and shocks occur. The glycerine serves to absorb the pressure in the gauge, thus preventing wear. Another advantage of a pressure gauge with glycerine is that it guarantees the readability of the applied pressure.
Do you want to buy a Bourdon tube pressure gauge or need more information?
The desired Bourdon tube pressure gauge can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which Bourdon tube pressure gauge would be best for your situation? Contact one of our product specialists for advice without obligation.
