Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 38 - 43 mm, for pipe 1¼"

Flamco BRS pipe clamp with insert, stainless steel, M8/M10, 38 - 43 mm, for pipe 1¼"

SKU:263269

Cg. 23.33
Cg. 23.33
Sale Sold out
tax included
In stock
View full details

Specifications

Application
aluminium pipe, cast iron pipe, copper pipe, plastic pipe, stainless steel pipe, steel pipe
Connection size
38 - 43 mm
Eancode
8712874384569
Inlay
EPDM rubber
Material
ss 316 (stainless steel)
Max. workload
1000 Newton
Maximum clamping range
43 mm
Max workload
1000 Newton
Minimum clamping range
38 mm
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M10, M8

Description

The Flamco BRS bracket is equipped with a sound-dampening insert and can be used for attaching the following pipes:

  • steel pipe;
  • stainless steel pipe;
  • copper pipe;
  • aluminum pipe;
  • cast iron pipe and
  • plastic pipe.

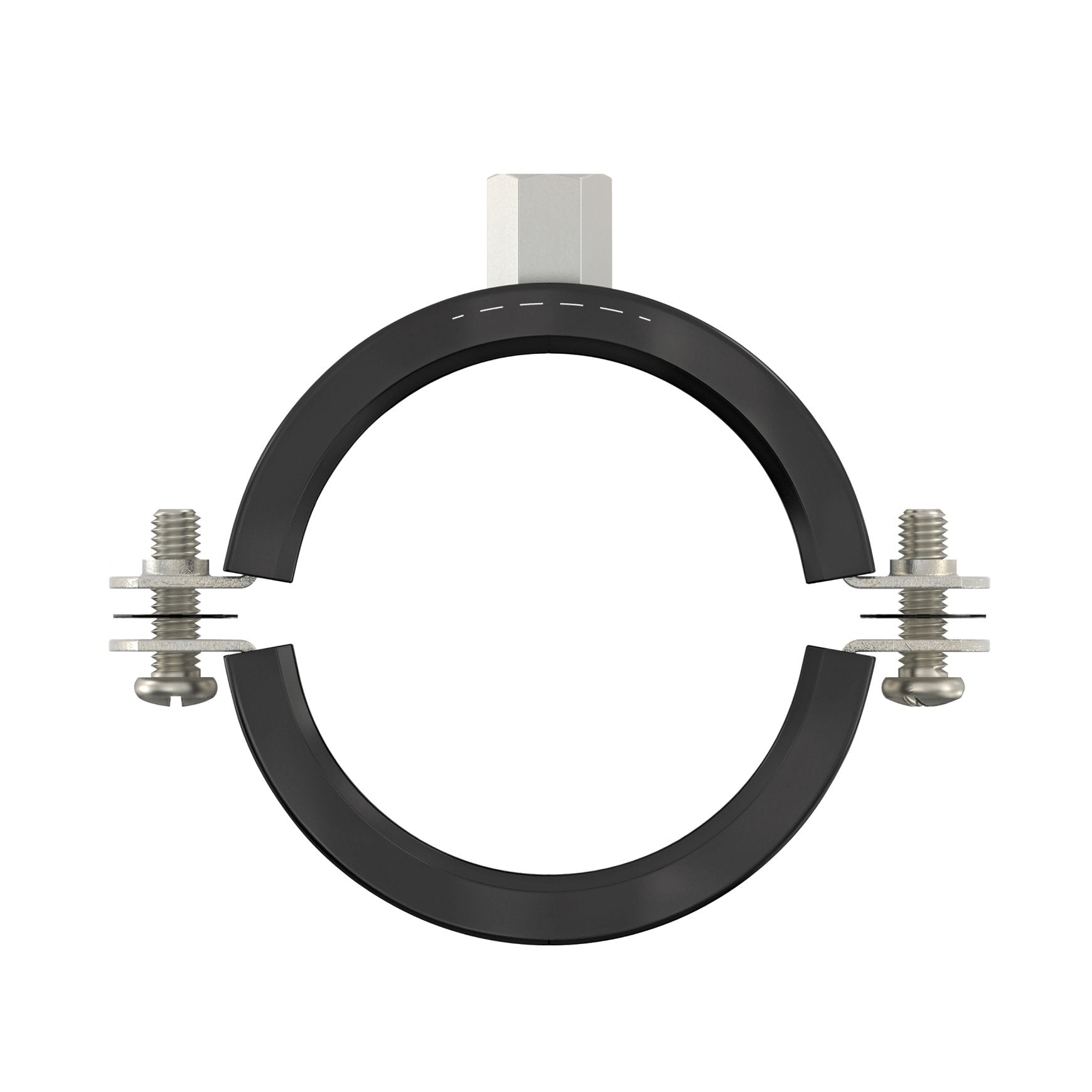

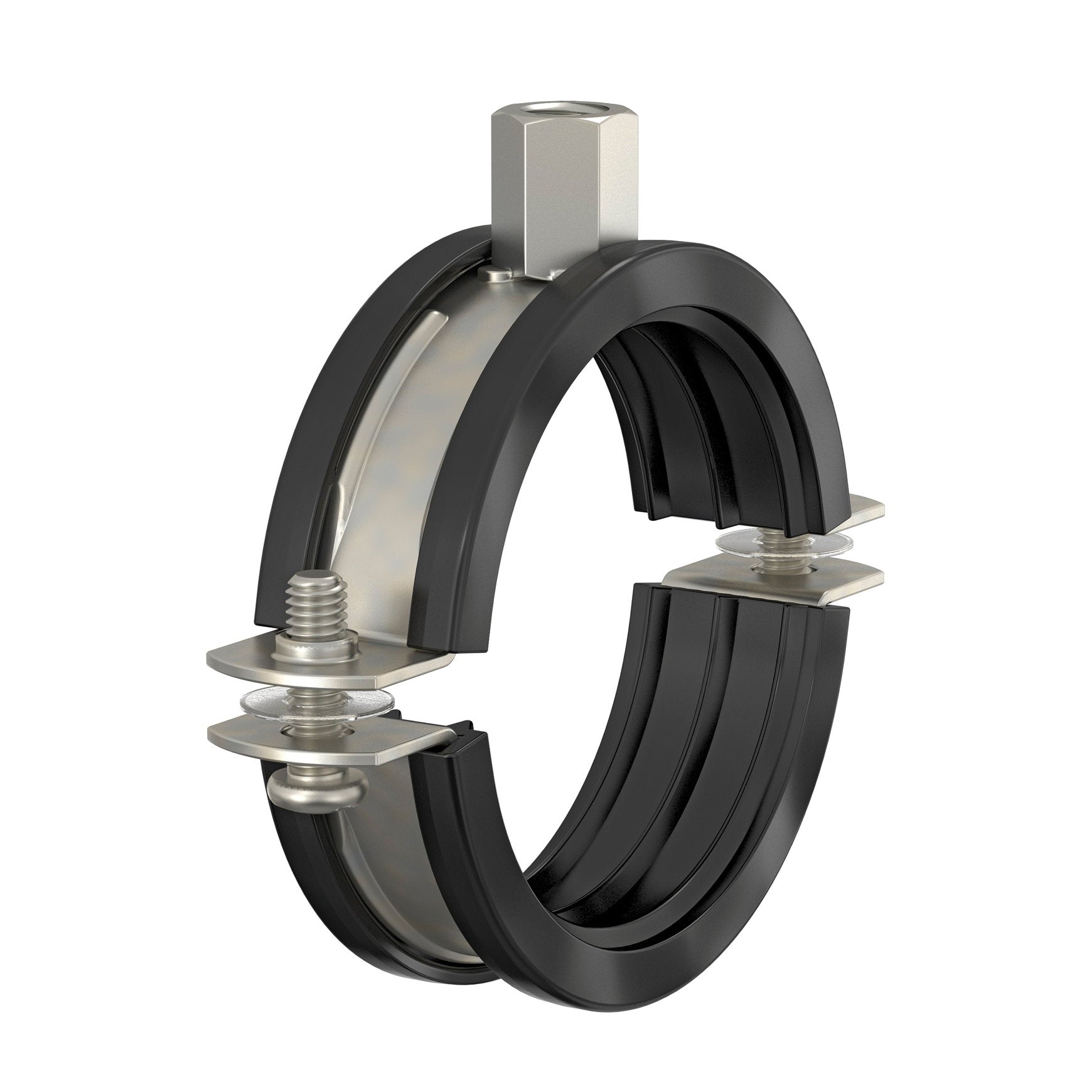

This pipe bracket consists of two parts and is closed with two screws. The sound-dampening insert is made of black EPDM rubber and is resistant to aging.

Certifications
The insert has a sound reduction of 17 DB(A) according to ISO 3822-1. To obtain the indicated sound reduction, the insert of the bracket must not be overloaded.
