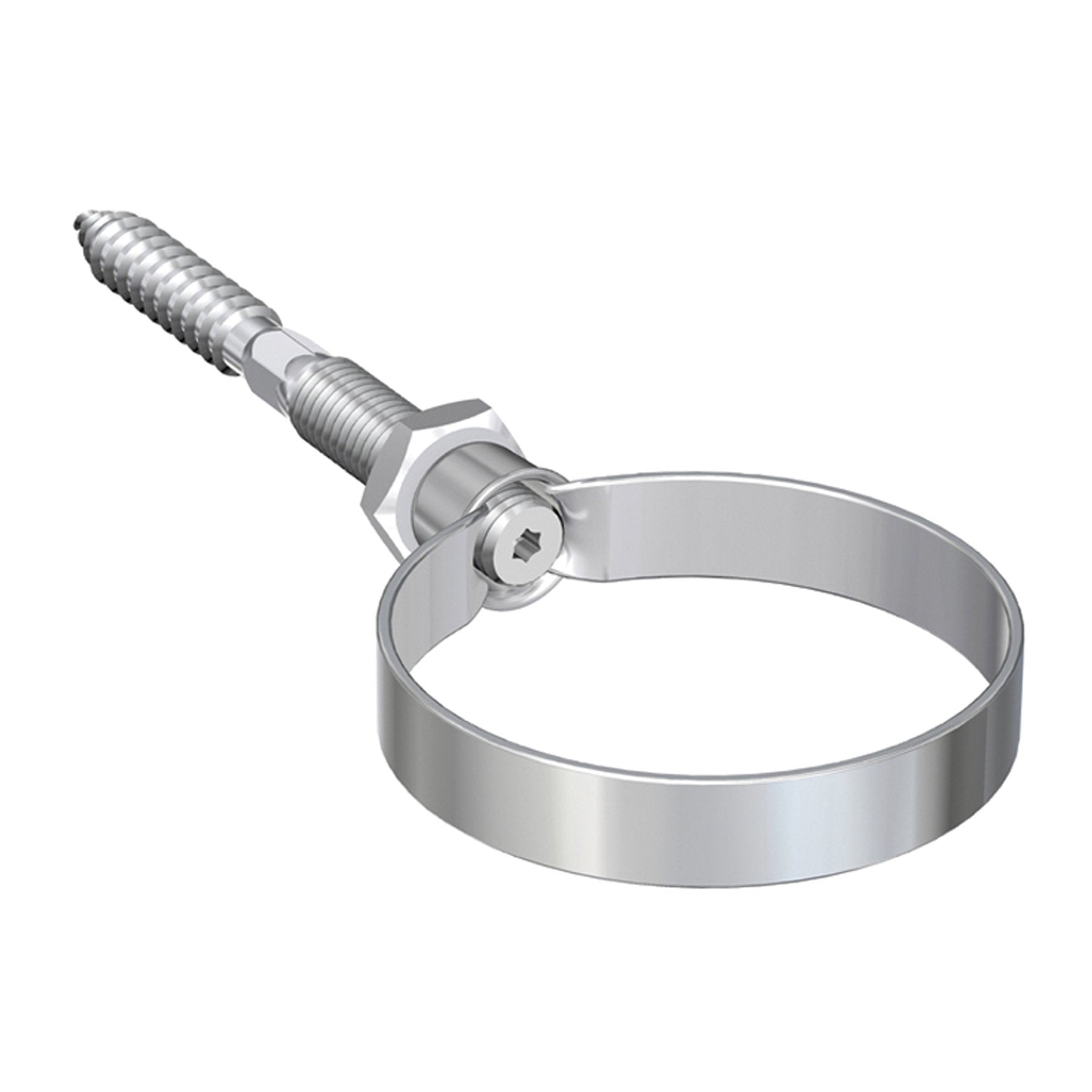

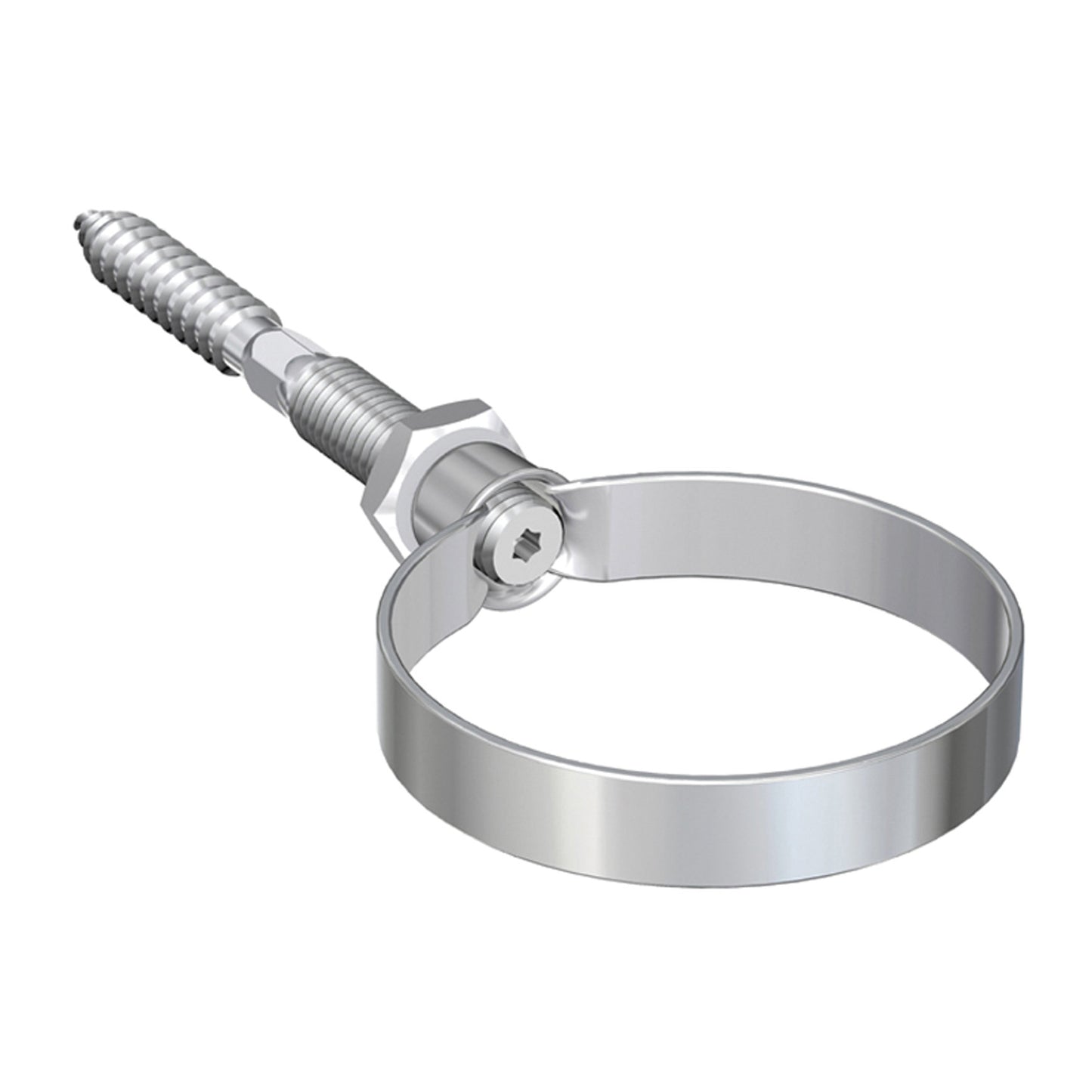

Flamco wall bracket, type BM - HK, M8 x 15 mm

Flamco wall bracket, type BM - HK, M8 x 15 mm

SKU:264702

Cg. 5.96
Cg. 5.96
Sale Sold out
tax included
In stock
View full details

Specifications

Application
steel pipe
Connection size
15 mm, M8
Diameter
15 mm
Eancode
8712874361126
Material
steel, electrolytically galvanized, steel, sendzimir galvanized
Max. workload
1300 Newton
Max workload
1300 Newton
Temp. resistance
-40 to +250°C
Temp resistance
-40 to +250°C
Wire connection
M8

Description

This Flamco wall bracket type BM - HK is suitable for attaching a wire tube, flame tube or thin-walled steel tube. The undivided bracket guarantees a high permissible load and is easy to install.

Attachment

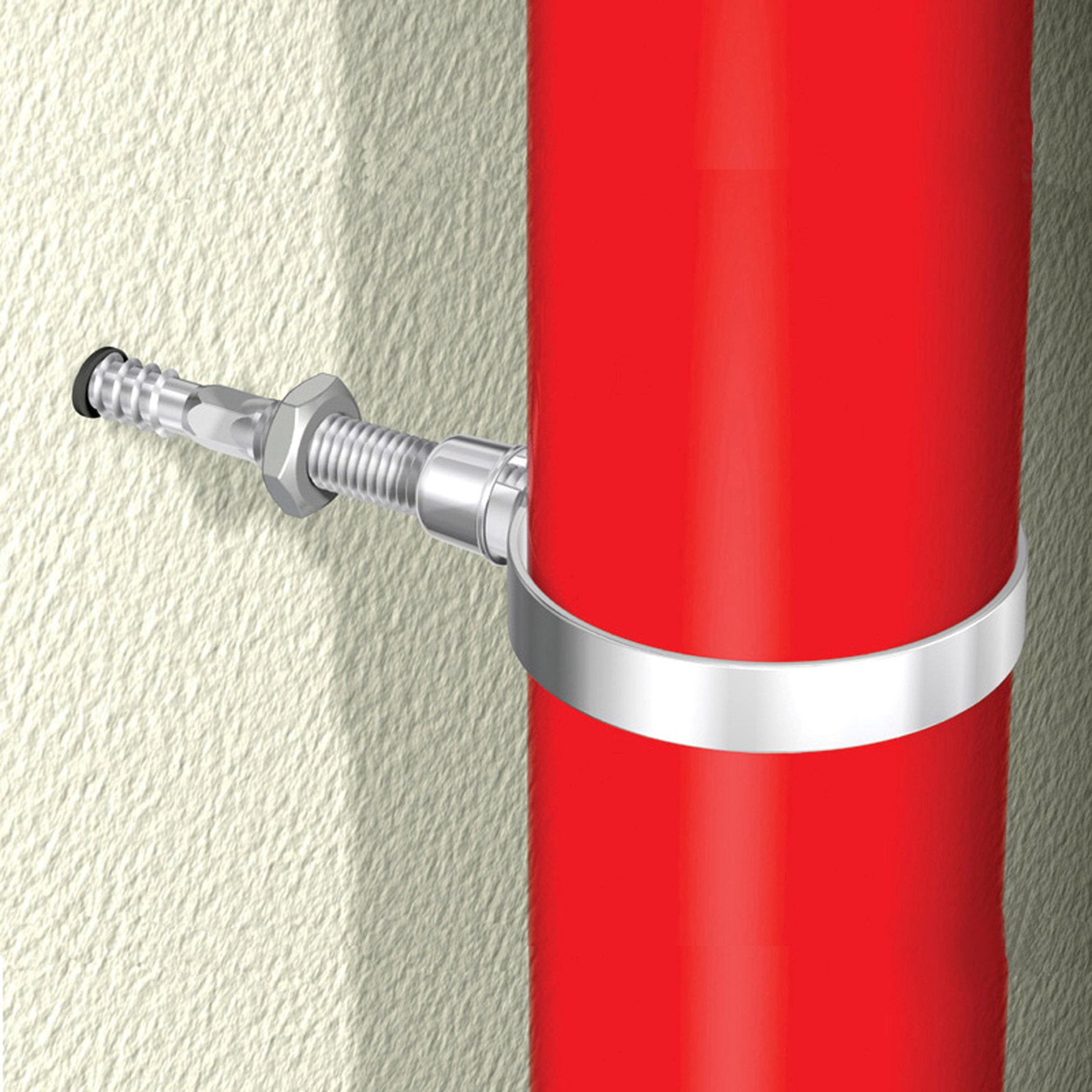

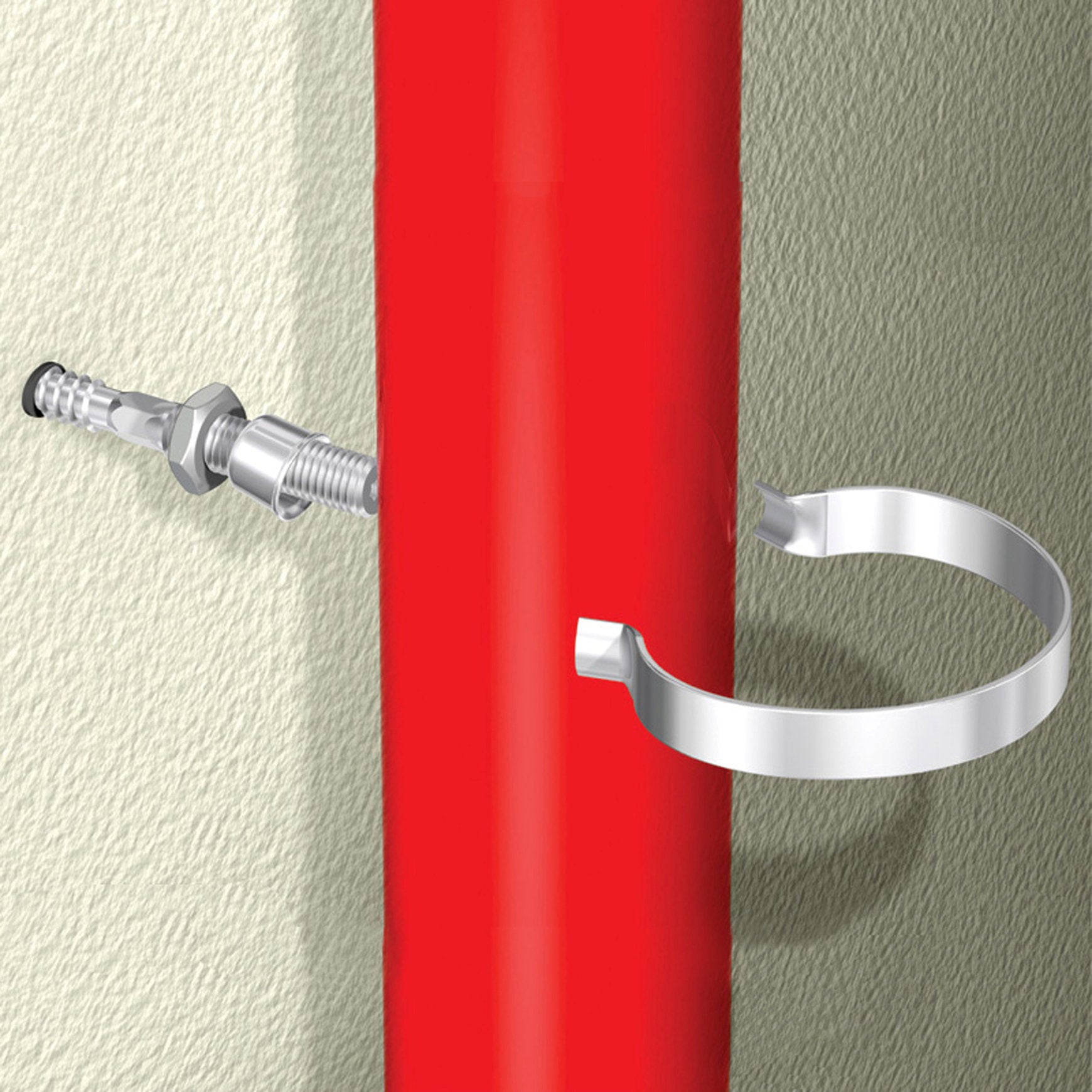

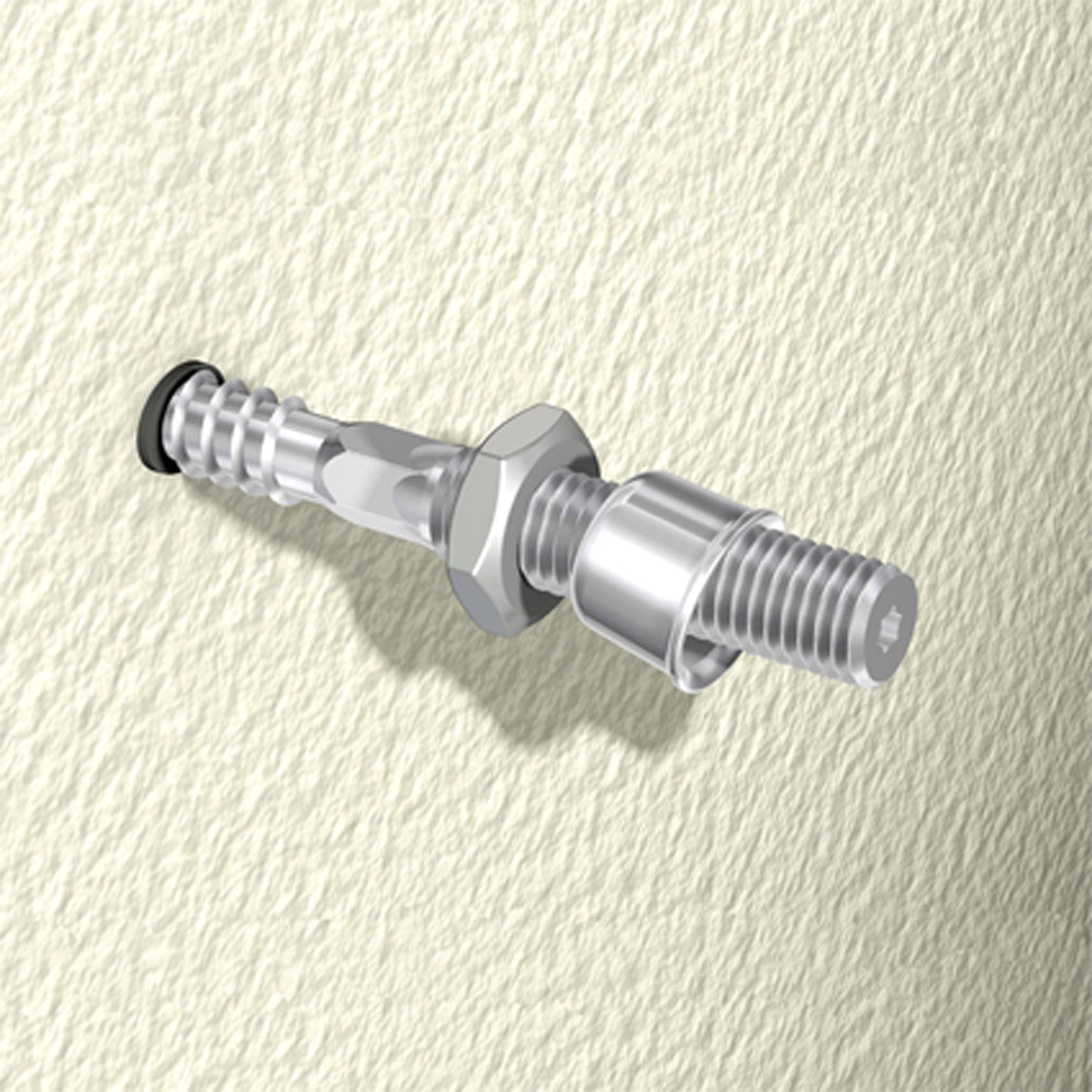

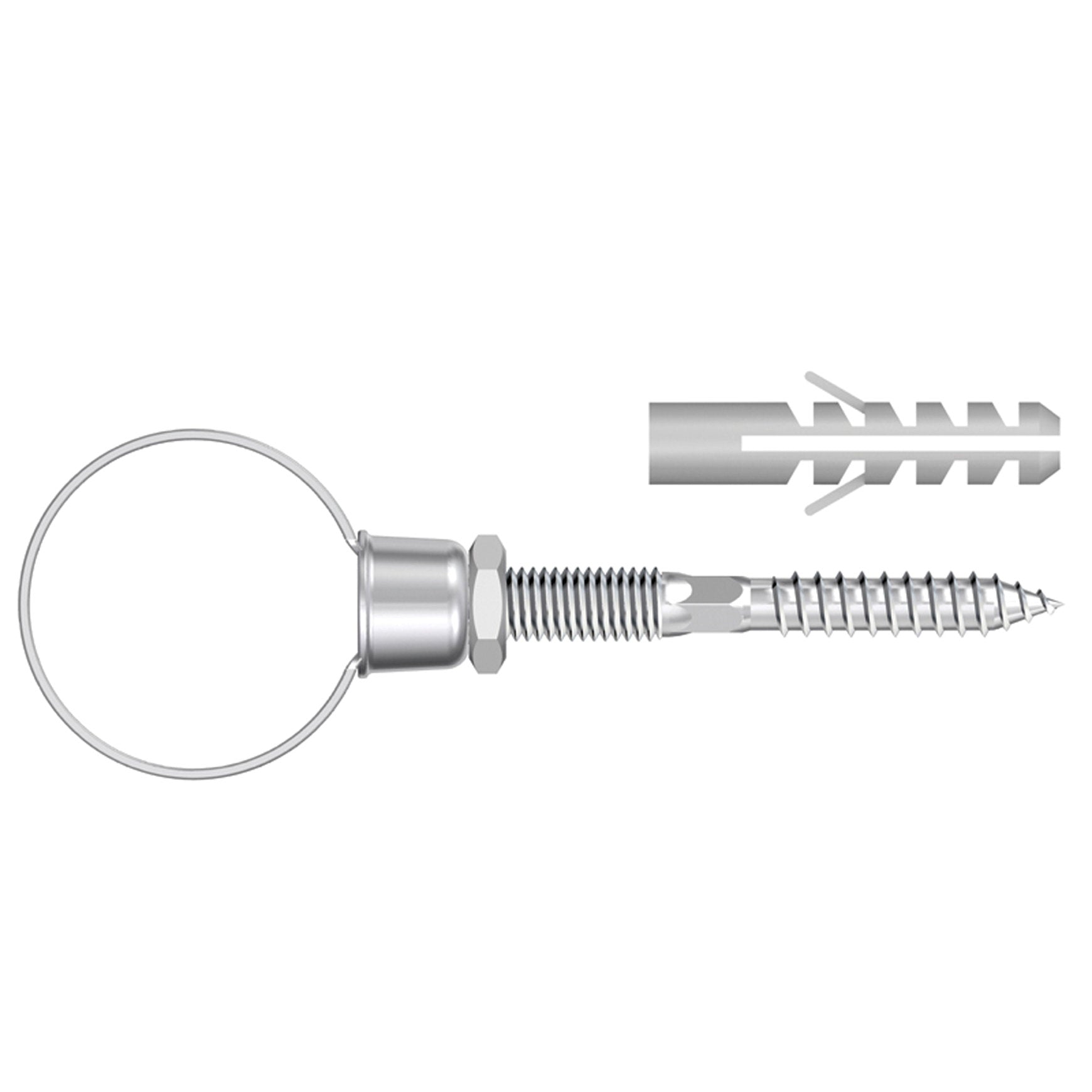

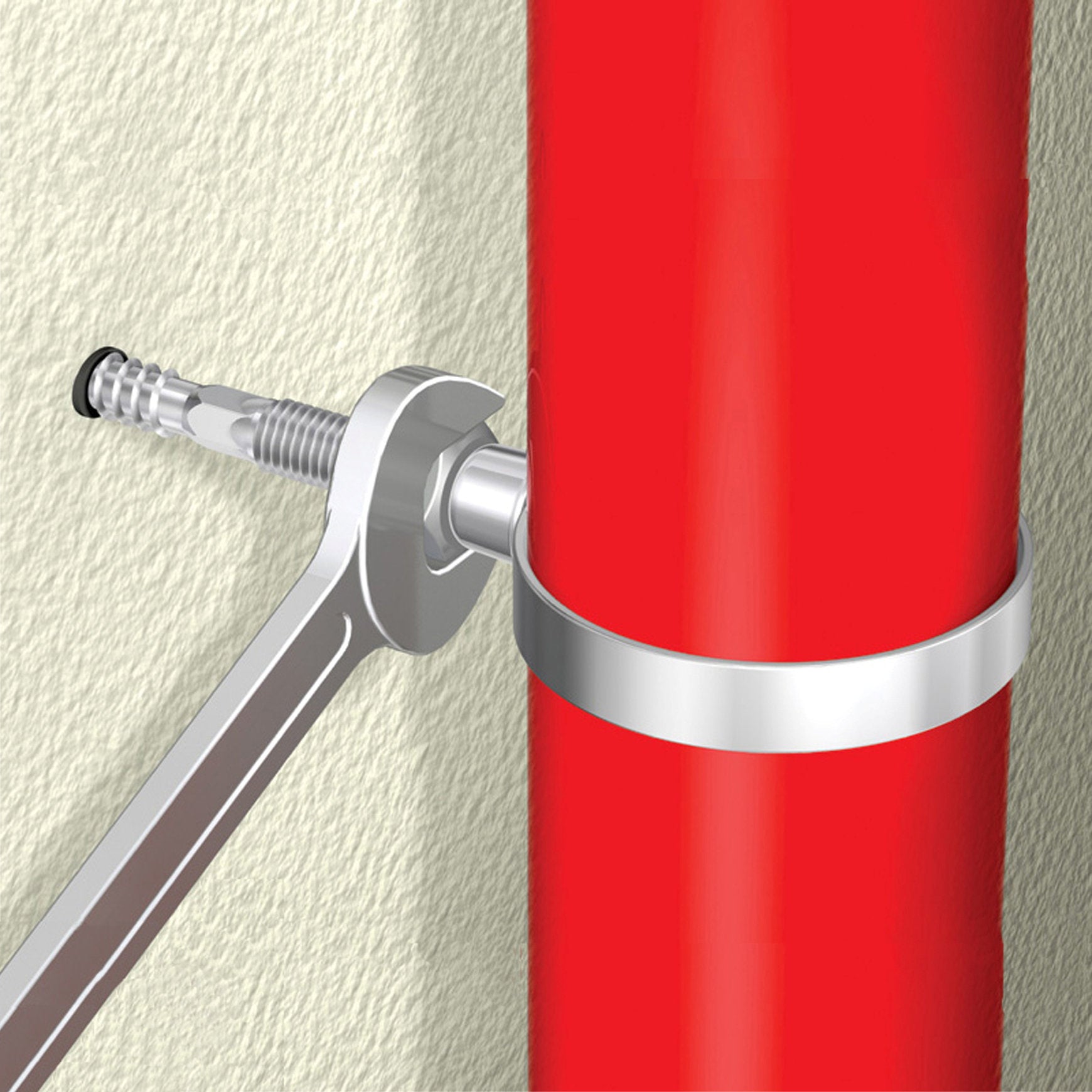

This wall bracket is supplied with a stud screw, plug and clamping bush. The stud screw, also called stud end, has a Torx connection so that it can be easily screwed into the wall. You screw the stud screw into the wall and attach the bracket to the stud screw with a nut. The attachment disappears behind the bracket so that it is not visible. The conical clamping bush with search edge ensures good clamping.
