Flamco wall bracket, type BMK - HK, M8 x 15 mm

Flamco wall bracket, type BMK - HK, M8 x 15 mm

SKU:264752

Cg. 9.48
Cg. 9.48
Sale Sold out
tax included
In stock
View full details

Specifications

Application
copper pipe
Connection size
15 mm, M8
Diameter
15 mm
Eancode
8712874381124
Material
copper
Max. workload
1000 Newton
Max workload
1000 Newton
Quality mark
Kiwa
Temp. resistance
-40 to +120°C
Temp resistance
-40 to +120°C
Wire connection
M8

Description

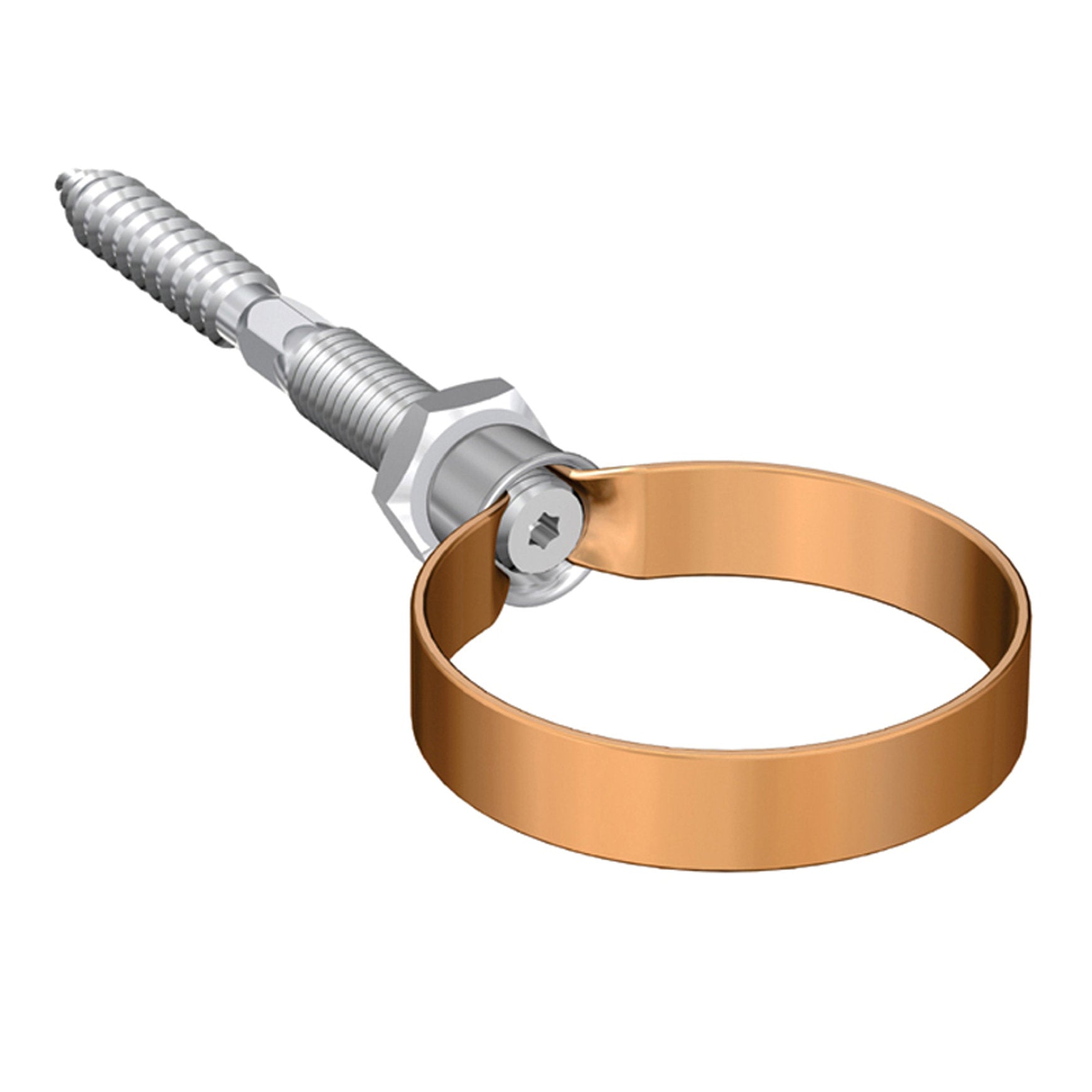

This Flamco wall bracket type BMK - HK is suitable for attaching a copper pipe. The undivided bracket guarantees a high permissible load and is easy to install.

Attachment

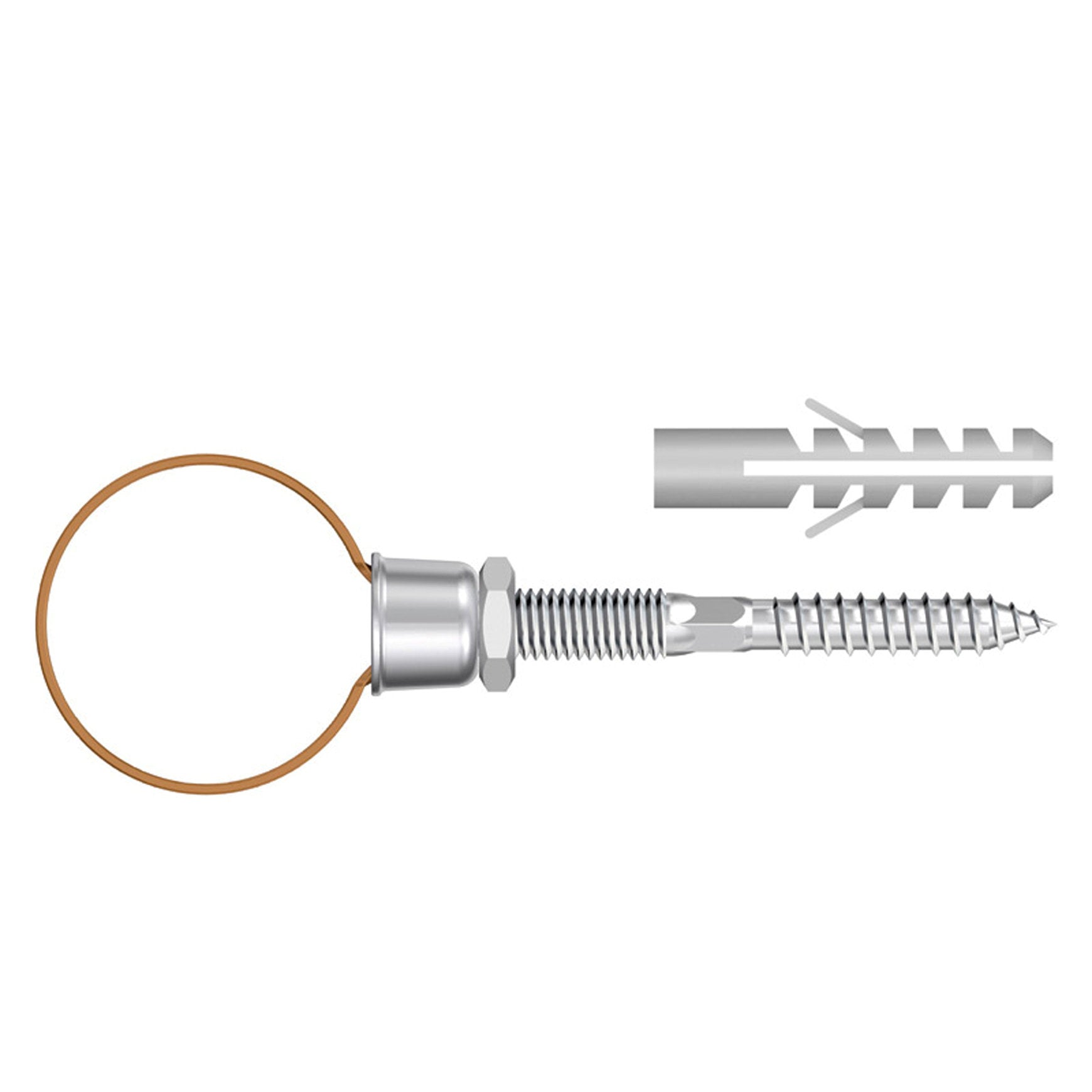

The wall bracket is supplied with a stud screw, plug and clamping bush. The stud screw, also called stud end, has a Torx connection so that it can be easily screwed into the wall. You screw the stud screw into the wall and attach the bracket to the stud screw with a nut.
The attachment disappears behind the bracket so that it is not visible. The conical clamping bush with search edge ensures good clamping.

Certificate
The bracket is provided with a Kiwa certificate, this means that you can use the wall bracket in drinking water installations.
