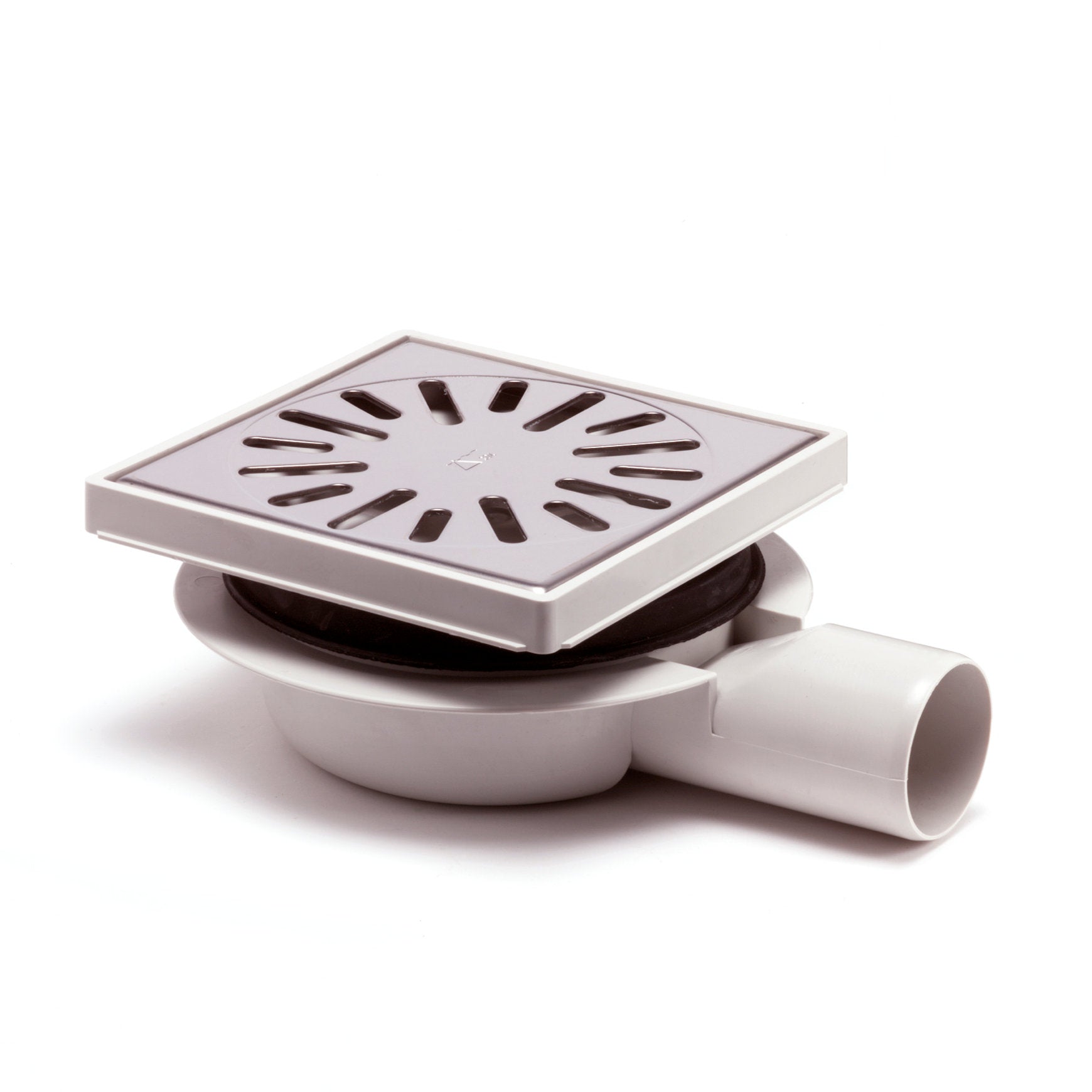

Floor drain with SS grate, ABS/SS 304, vert./hor. adj., 150x150mm, side outlet 50mm, 0.6l/s, 3kN
Floor drain with SS grate, ABS/SS 304, vert./hor. adj., 150x150mm, side outlet 50mm, 0.6l/s, 3kN
SKU:255373
Regular price
Cg. 146.84
Regular price
Sale price
Cg. 146.84
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Adjustable horizontally
15 mm
Adjustable vertically
15 mm
Application
inside
Connection size
50 mm
Connection type
spigot
Eancode
8717775930228
Grate material
stainless steel 304
Grille dimensions
150 x 150 mm
Housing material
ABS
Installation height
78 - 93 mm
Length
150 mm
Load
3 kN
Odour lock
32 mm
Riser material
ABS
Side connection
50 mm
Type
4016
Width
150 mm
Description
- The grating has a reinforced edge that is turned down.
- With sbr sealing ring between well and fitting.
- With ppc plastic odor seal.
