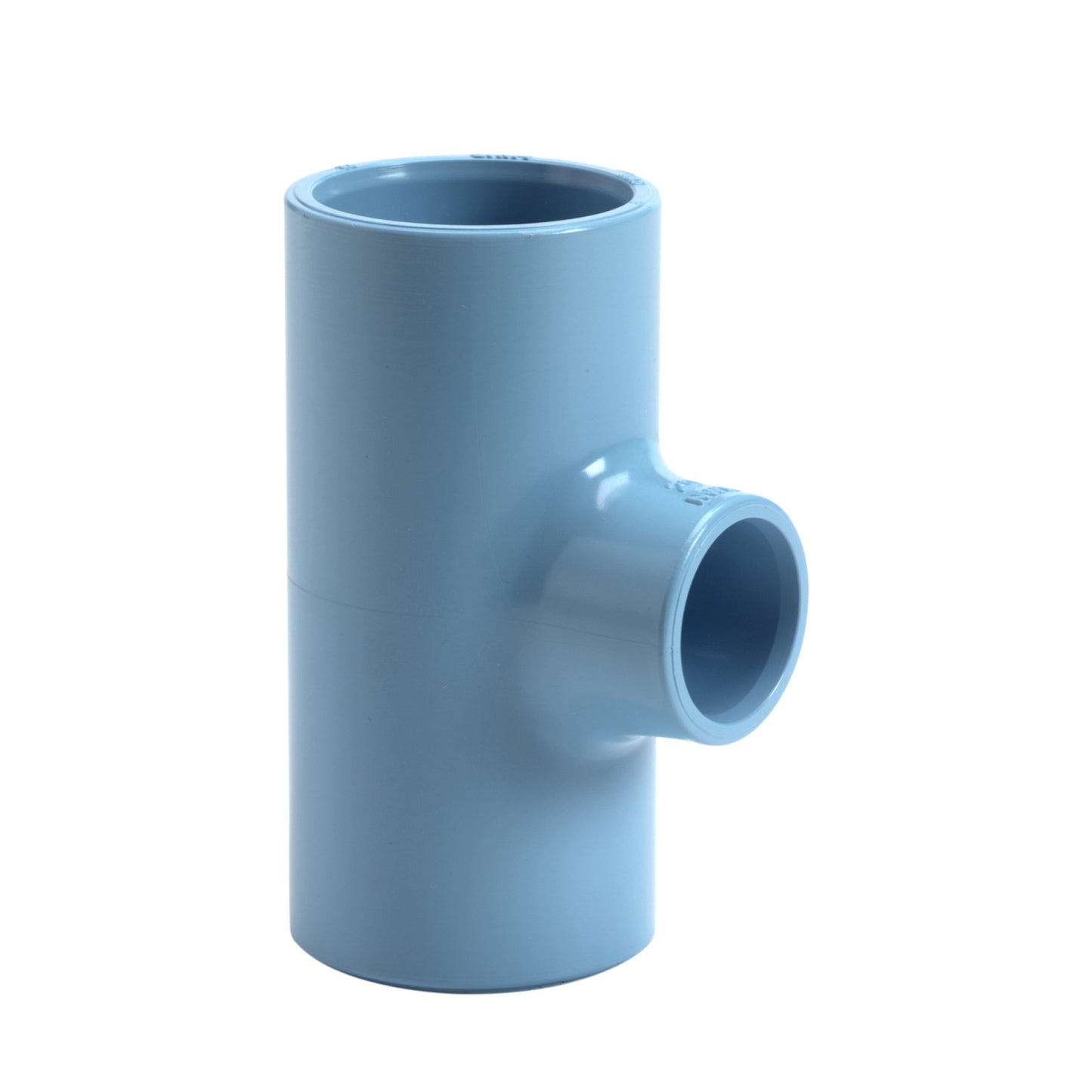

Girair reducing T-piece 90°, 3x internal glue, 32 x 20 x 32 mm

Girair reducing T-piece 90°, 3x internal glue, 32 x 20 x 32 mm

SKU:682153

Cg. 32.23
Cg. 32.23
Sale Sold out
tax included
In stock
View full details

Specifications

Angle
90 °
Class
Bs1dO
Complementary products v2
ProductListDrop
Connection size
20 mm, 32 mm
Connection type
internal adhesive
Diameter
20 mm, 32 mm
Eancode
3343340281409
Material
pvr

Description

This Girair 90° Elbow T-piece is used in compressed air piping systems. The blue color indicates that it is suitable for compressed air.

Properties

The Girair compressed air 90° Elbow T-piece is resistant to static and alternating pressure, tensile forces, is maintenance-friendly and completely leak-proof.

Material

The PVR material is fully recyclable.

Fire safety

The Girair system is flame retardant according to class M2 and fire class Bs1do.

Assembly

The Girair 90° Elbow T-piece is quick and easy to assemble because it is light in weight. For assembling the system you need the following: a pipe cutter, deburrer and cold welding-polymer glue.

The assembly takes only a few steps:
  • Cut the pipe to size with a plastic pipe cutter and bevel the edge.
  • Deburr the ends and mark the insertion depth.
  • Apply a thin layer of cold welding-polymer glue to the pipe and fitting up to the insertion depth, slide the fitting straight over the pipe (do not rotate) and hold it for a few seconds.
After assembly and drying time, a pressure test must be done. The test lasts 12 hours during which no pressure drop may be observed. The test pressure must be 1.5 times the working pressure with a maximum of 12.5 bar.

Note: The Girair system is not suitable for medicinal air, flammable gases or applications that require the absence of silicones.
