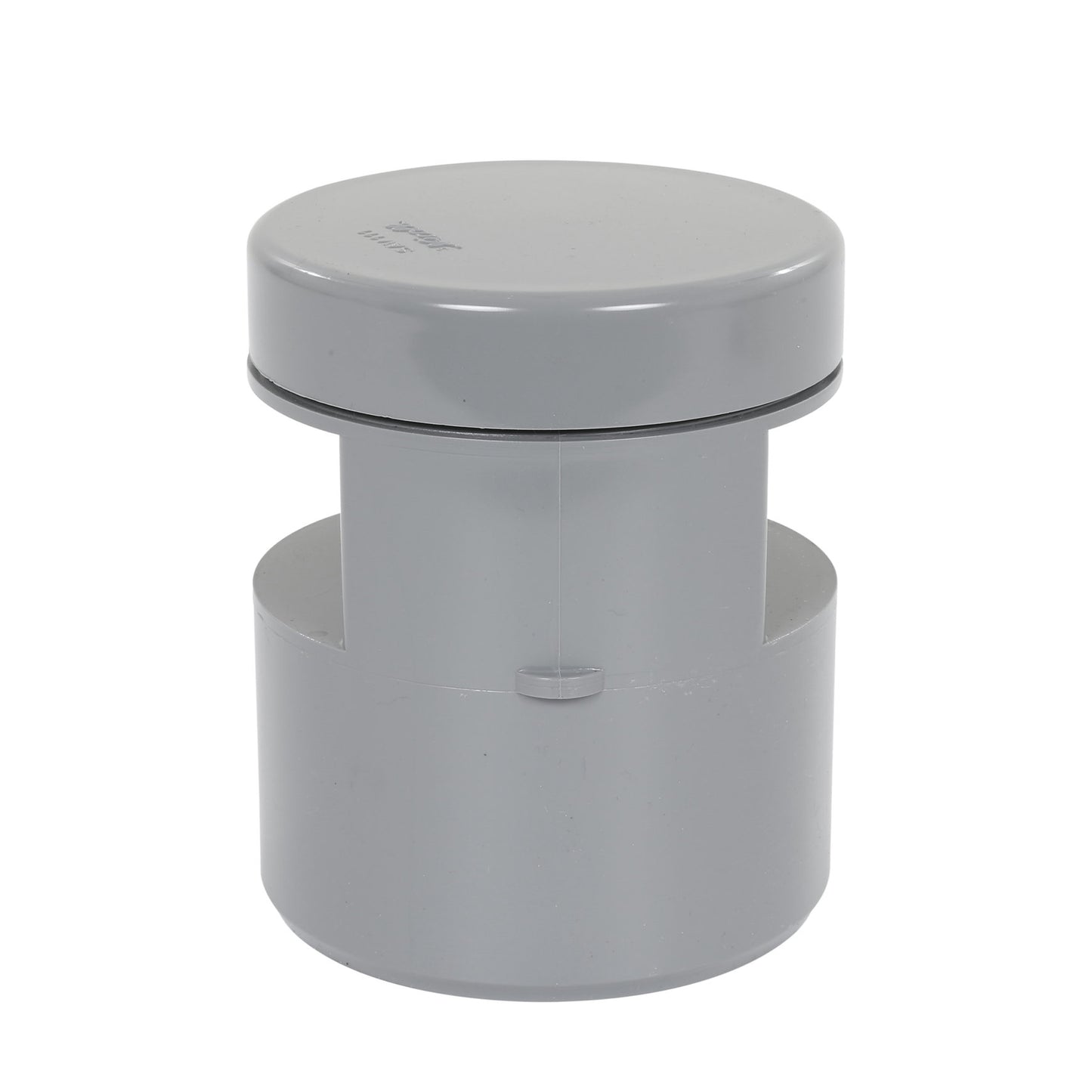

Nicoll automatic PVC aerator, diameter 100 - 110 mm

Nicoll automatic PVC aerator, diameter 100 - 110 mm

SKU:256926

Cg. 405.10
Cg. 405.10
Sale Sold out
tax included
In stock
View full details

Specifications

Assortments
wca1001103
Complementary products v2
ProductListDrop
Connection size
100 mm, 110 mm
Diameter
100 mm, 110 mm
Eancode
3309039186004
Height
132 mm
Material
pvc (polyvinyl chloride)
Two badescription
Nicoll automatische pvc beluchter, diameter 100 - 110 mm
Two badescription en
Nicoll automatic PVC aerator, diameter 100 - 110 mm

Description

  • To ensure sufficient ventilation, eliminating the need for multiple ventilation caps on the roof.
  • Under normal conditions, the membrane seals the pipe.
  • Effect on:
    • Air pressure: in this case the air pressure on the membrane is low, so no contaminated air can escape.
    • Vacuum: the vacuum created in the pipe pushes the membrane upwards, so that it can let in the necessary air.
  • Important: install vertically.
  • Capacity 18.3 l/sec.
