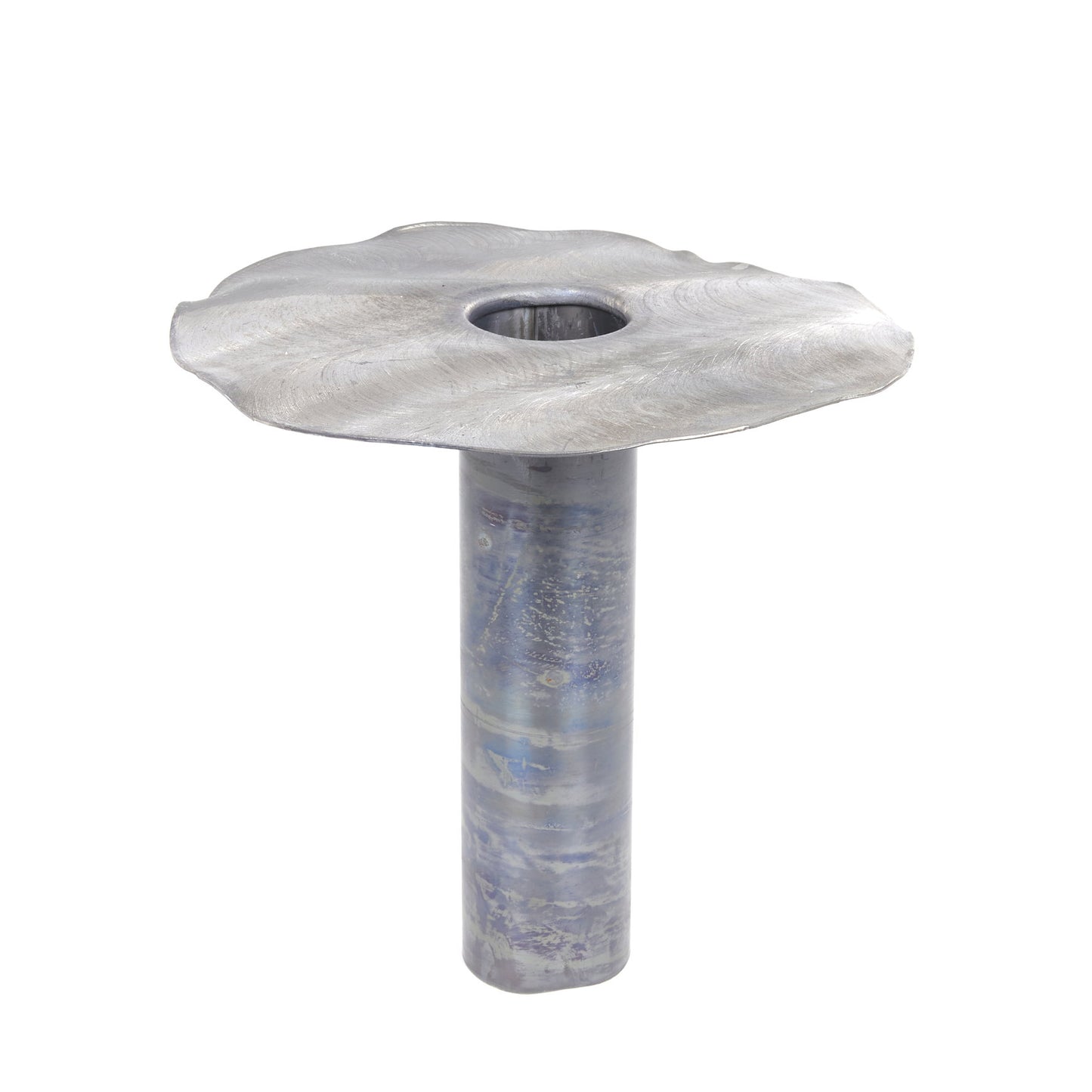

Parapet outlet, lead, bottom spout, 25 pounds, spout 80 mm, d = 300 mm
Parapet outlet, lead, bottom spout, 25 pounds, spout 80 mm, d = 300 mm
SKU:161646
Regular price
Cg. 127.49
Regular price
Sale price
Cg. 127.49
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca9020021
Complementary products v2
ProductListDrop
Connection size
80 mm
Drain
80 mm
Drain opening
50.2 cm²
Material
lead
Width
300 mm
Description
A gutter is used for the drainage of rainwater from a flat roof. The gutter consists of a plate and a drain pipe. The diameter of the drain pipe depends on the amount of rainwater to be drained.
25 pounds lead
The term 25 pounds lead refers to the thickness and weight of the applied lead. At 25 pounds, the thickness is 2.2 mm and the weight is 25 kilograms per m².
Drainage capacity
As a rule of thumb for the drainage capacity of a rainwater drainage, 1 cm² drain opening area is used per 1 m² roof area. Depending on the required rainwater drainage area, one or more drains / hwa pipes are applied.
