Rawinso box gutter, polyester, light grey, RAL 7035, l = 6 m, 170 mm

Rawinso box gutter, polyester, light grey, RAL 7035, l = 6 m, 170 mm

SKU:15578418

Cg. 583.98
Cg. 583.98
Sale Sold out
tax included
In stock
View full details

Specifications

Assortments
wca1010350
Brand previously
Ubbink
Complementary products v2
ProductListDrop
Connection size
170 mm
Diameter
170 mm
Eancode
8717108005654
Length
6 m
Material
polyester
Precursor
421401
Ral
7035
Two badescription
Rawinso bakgoot, polyester, lichtgrijs, 170 mm, l = 6 m
Two badescription en
Rawinso box gutter, polyester, light grey, 6 m, 170 mm
Type
M170

Description

This box gutter is shape-retaining. The polyester box gutter has a very low coefficient of expansion and high resistance to atmospheric pollution.

Assembly

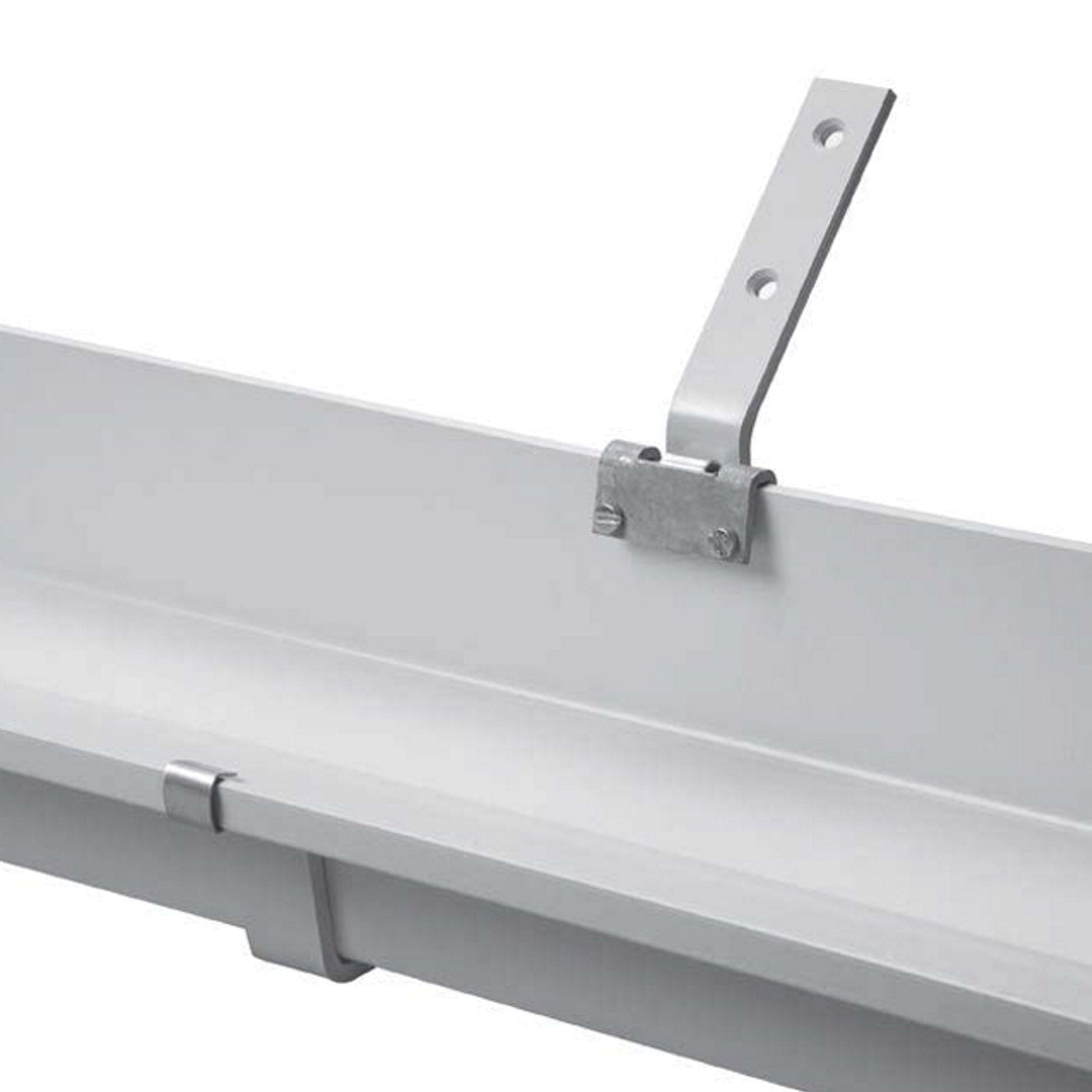

1 fixing bracket must be attached for each gutter section. This should be placed on the middle gutter bracket to evenly distribute shrinkage and expansion towards both ends of the gutter. The maximum centre-to-centre distance of the gutter brackets is 60 cm. The required width of a box gutter depends on the roof area. The box gutter is normally used for a roof area between 80 and 130 m² The box gutters are easy to attach using the accessories and have a minimum lifespan of 30 years.

Assortment

The assortment for attachments for polyester box gutters includes gutter brackets, connectors, fixing brackets, end caps, corner pieces and outlets.

Ubbink/Rawinso

Rawinso has taken over the full production of Ubbink box gutters. Rawinso box gutters is now the new name for Ubbink box gutters.
