RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 25 bar, 1½"

RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 25 bar, 1½"

SKU:653753

Cg. 105.78
Cg. 105.78
Sale Sold out
tax included
In stock
View full details

Specifications

Connection size
1½"
Connection type
female thread
Diameter
1½"
Eancode
8717108001335
Material
brass, chrome plated
O-ring
NBR
Oring
NBR
Passage / bore
full flow
Passage bore
full flow
Pressure class
25 bar
Quality mark
WRAS
Series
Export
Type
RIV 4171

Description

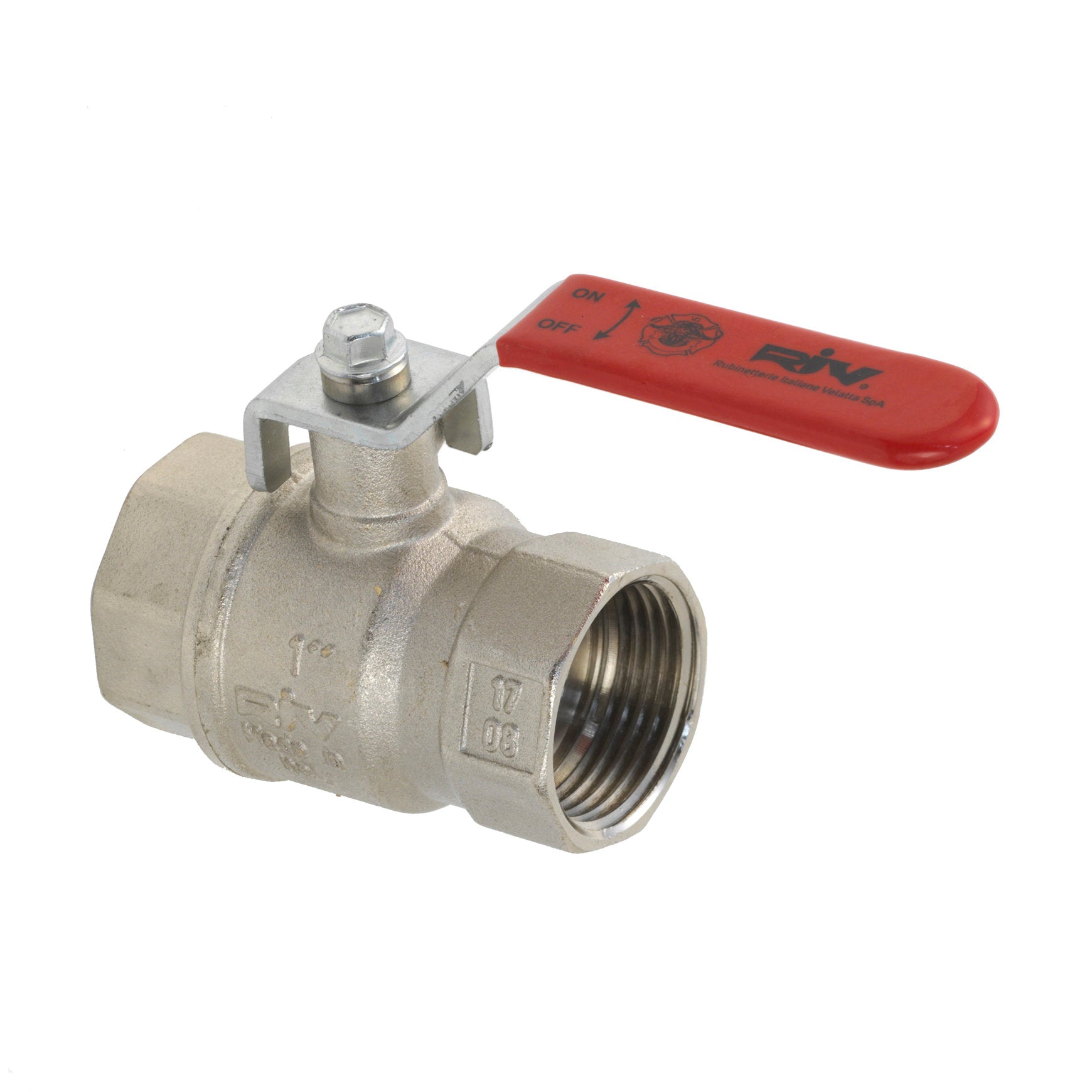

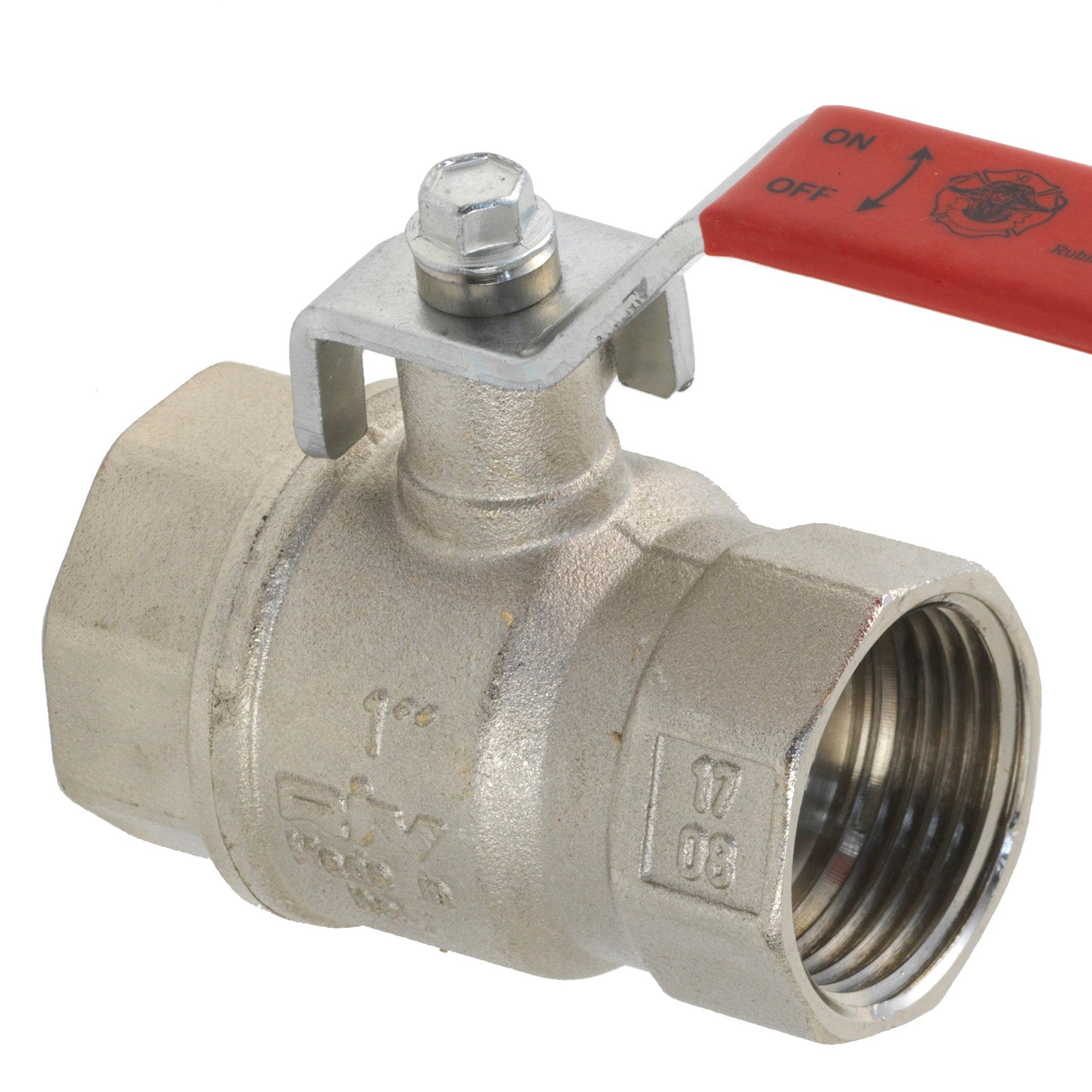

This RIV ball valve, type 4171, also known as a ball valve, is used to quickly and easily open or close a water pipe. The internal ball can be operated quickly and user-friendly through the lever. This ball valve has a full bore, which means there is no narrowing in the valve.

This ball valve is suitable for a working pressure of up to 40 bar at a temperature of up to 95 °C. The temperature range of this ball valve is -20 °C to +110 °C.
