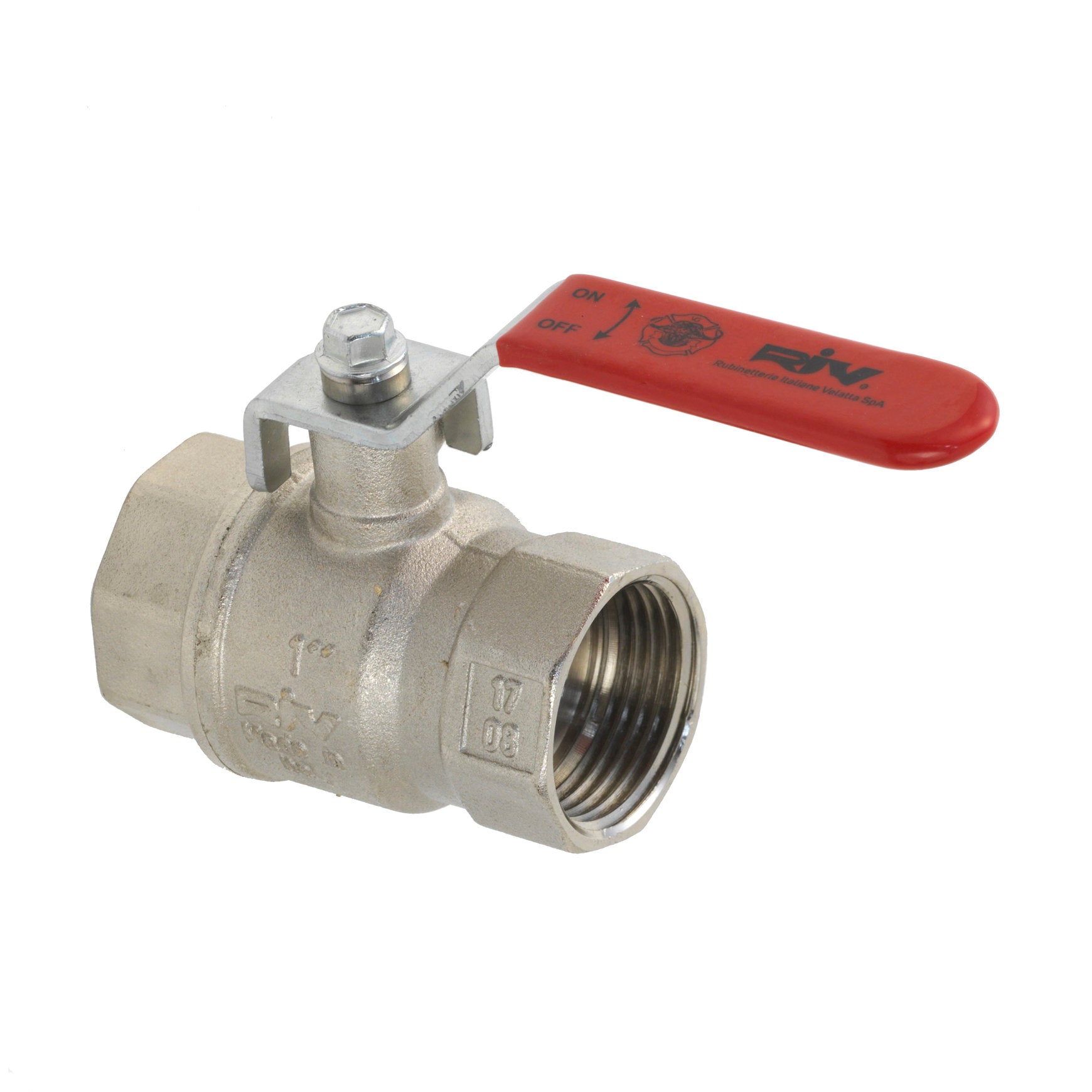

RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 25 bar, 2"

RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 25 bar, 2"

SKU:653754

Cg. 162.93
Cg. 162.93
Sale Sold out
tax included
In stock
View full details

Specifications

Connection size
2"
Connection type
female thread
Diameter
2"
Material
brass, chrome plated
O-ring
NBR
Oring
NBR
Passage / bore
full flow
Passage bore
full flow
Pressure class
25 bar
Quality mark
WRAS
Series
Export
Type
RIV 4171

Description

This RIV ball valve, type 4171 is used to quickly and easily open or close a water pipe. The lever allows the internal ball to be operated quickly and user-friendly. This ball valve has a full bore, meaning there is no constriction in the valve.

This ball valve is suitable for a working pressure of up to 40 bar at a temperature of up to 95°C. The temperature range for this ball valve is -20 °C to +110 °C.
