RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 40 bar, ½"
RIV ball valve, chrome-plated brass, 2x female thread, type 4171, 40 bar, ½"
SKU:653749
Regular price
Cg. 20.66
Regular price
Sale price
Cg. 20.66
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Complementary products v2
ProductListDrop
Connection size
½"
Connection type
female thread
Diameter
½"
Eancode
8717108001304
Material
brass, chrome plated
O-ring
NBR
Oring
NBR
Passage / bore
full flow
Passage bore
full flow
Pressure class
40 bar
Quality mark
WRAS
Series
Export
Type
RIV 4171
Description

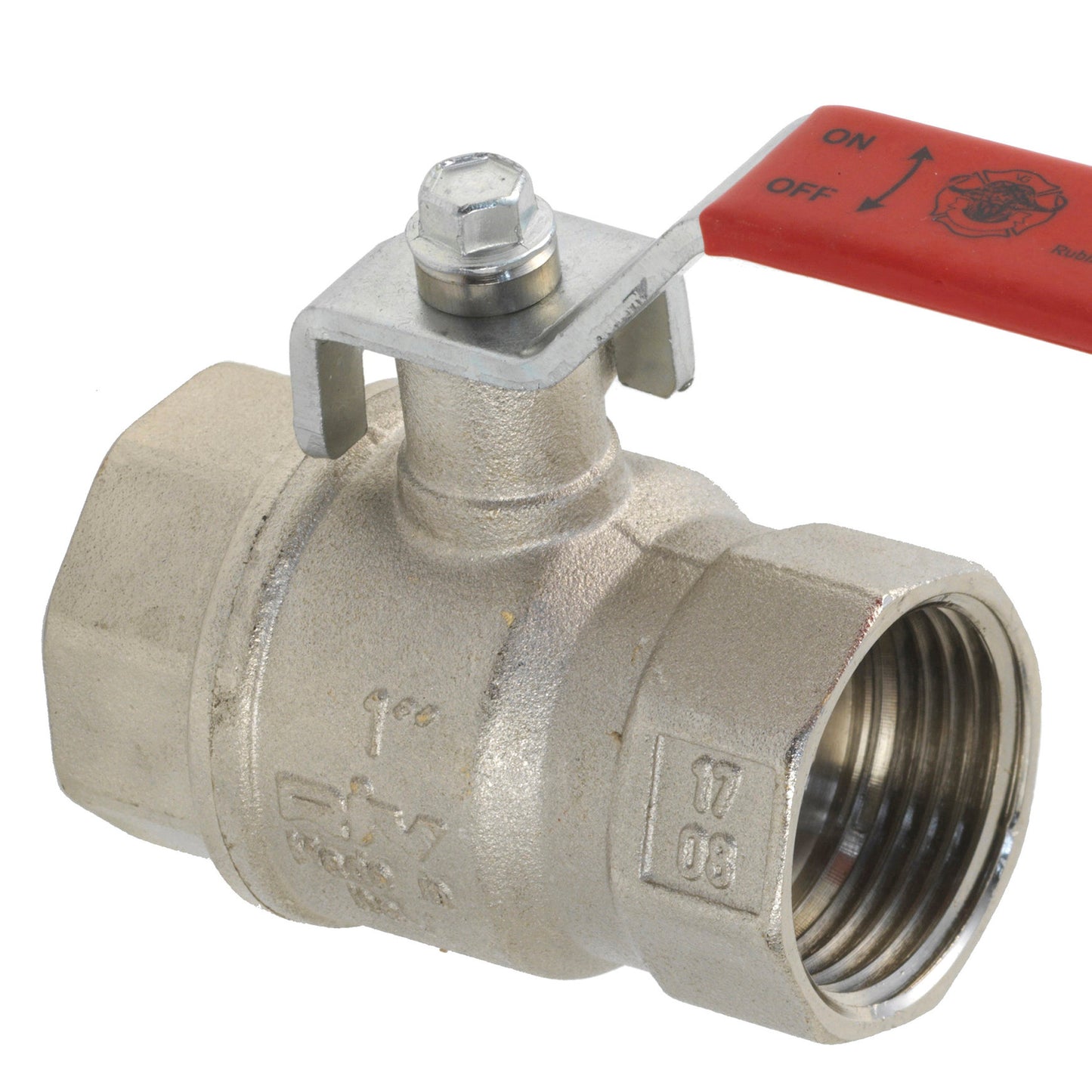

This RIV ball valve, type 4171, also known as a ball valve, is used to quickly and easily open or close a water pipe. The internal ball can be operated quickly and user-friendly through the lever. This ball valve has a full bore, which means there is no narrowing in the valve.
This ball valve is suitable for a working pressure of up to 40 bar at a temperature of up to 95 °C. The temperature range of this ball valve is -20 °C to +110 °C.
