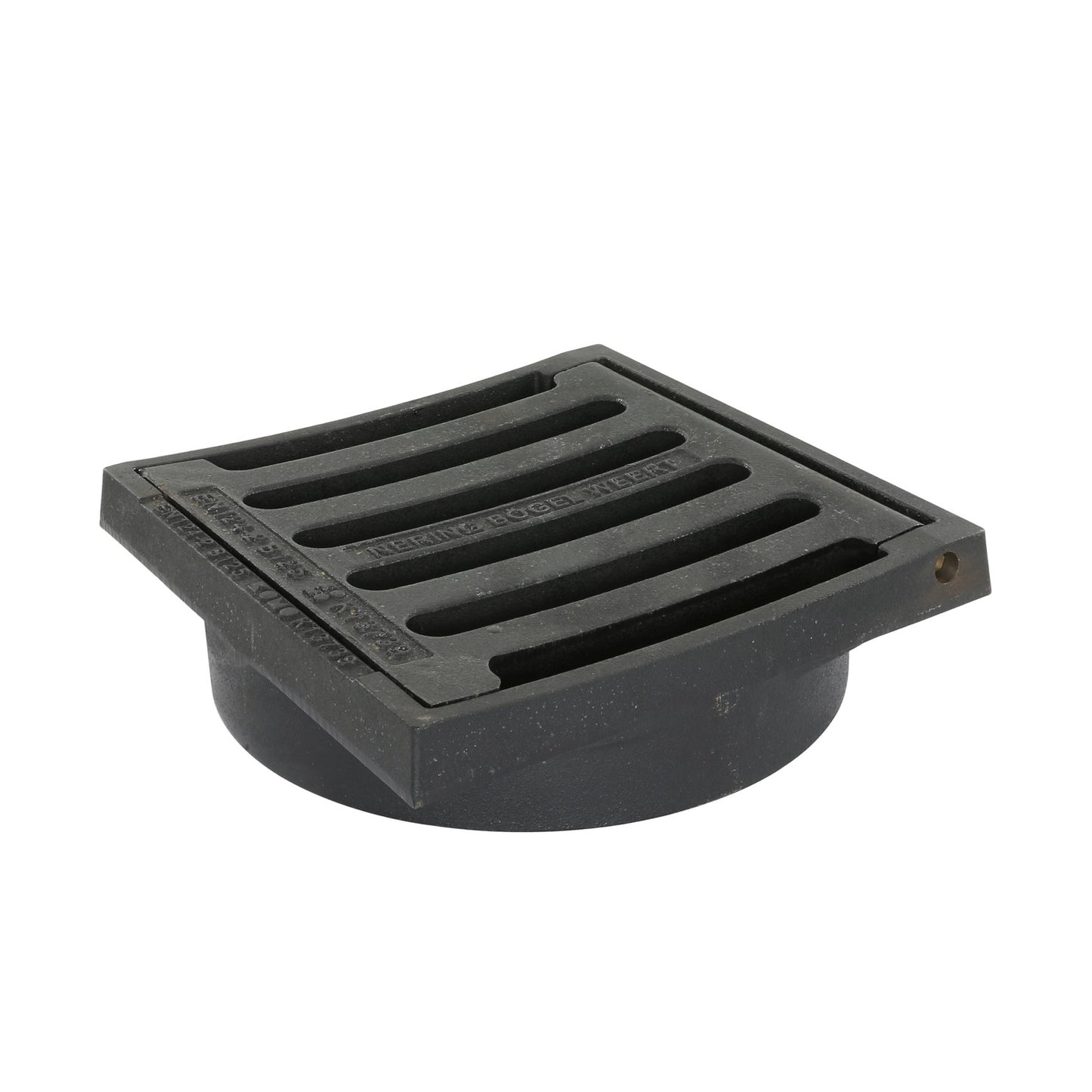

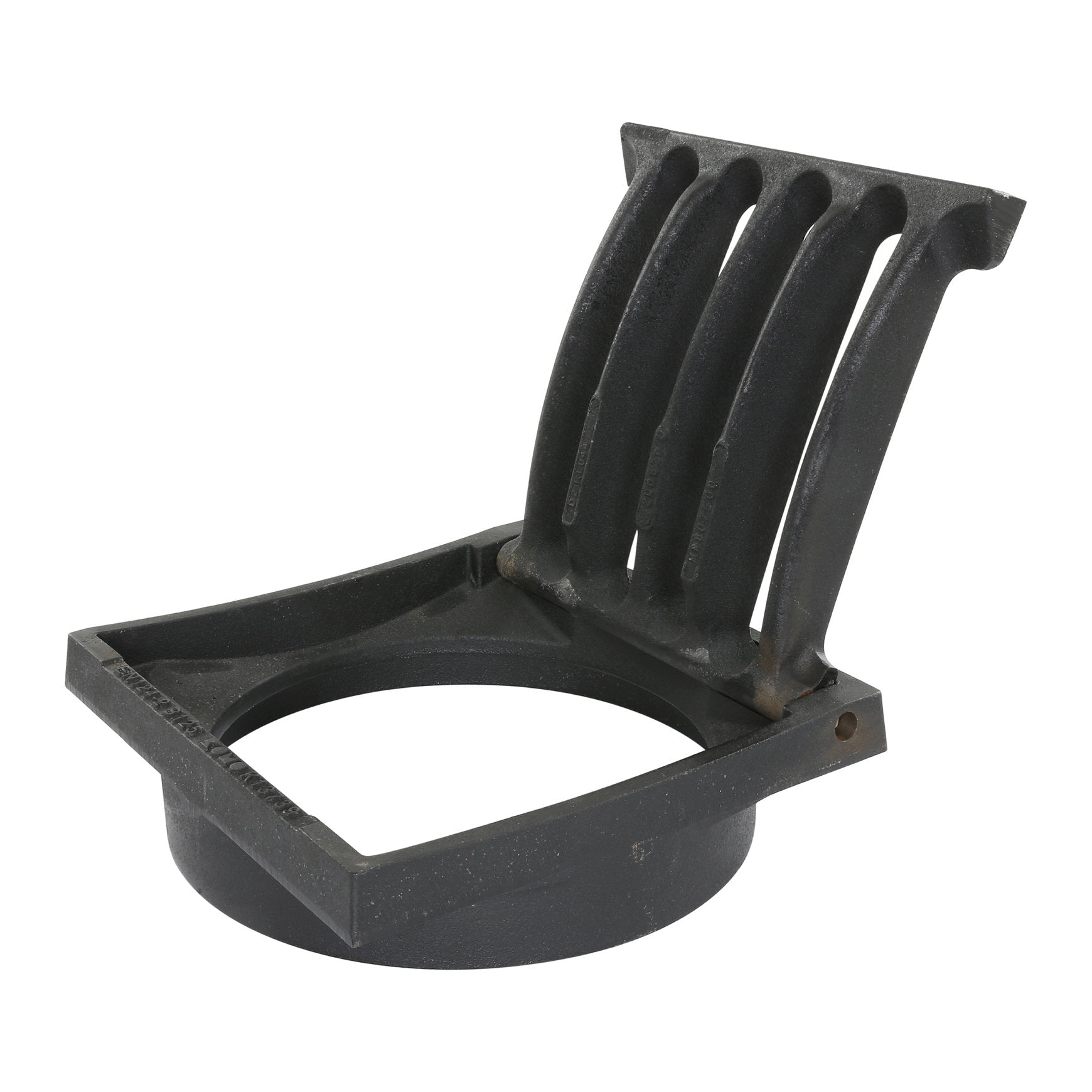

Road gully, type BS 422 DR / OB 315, hollow grate, cast iron, B125, 330 x 330 mm
Road gully, type BS 422 DR / OB 315, hollow grate, cast iron, B125, 330 x 330 mm
SKU:920003
Regular price
Cg. 218.04
Regular price
Sale price
Cg. 218.04
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca1010104
Class
B125
Complementary products v2
ProductListDrop
Connection size
315 mm
Diameter
315 mm
Eancode
8717108001465
Height
50 mm
Height of chamber
50 mm
Length
330 mm
Locking mechanism
no
Material
cast iron
Quality mark
KOMO, NEN-EN 124 / BRL 9203
Surface
330 x 330 mm
Type
BS 422 DR / OB 315
Width
330 mm
Description
A road gully grid is indispensable for draining rainwater from paved surfaces such as roads and car parks. The gully collects the water and drains it in a controlled manner, preventing puddles and flooding.
Advantages of a road gully
- Effective rainwater drainage from roads and paved surfaces.
- Easy installation and connection to the drain.
Installation
Place the road gully grid on a hopper under the road surface and connect it to the drain pipe. If necessary, use a gully riser to achieve the correct height. Ensure that the top of the gully is level with the paving for a neat finish.Do you want to buy a road gully grid or need more information?
The desired road gully grid can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which road gully grid would be best? Contact one of our product specialists for advice without obligation.
