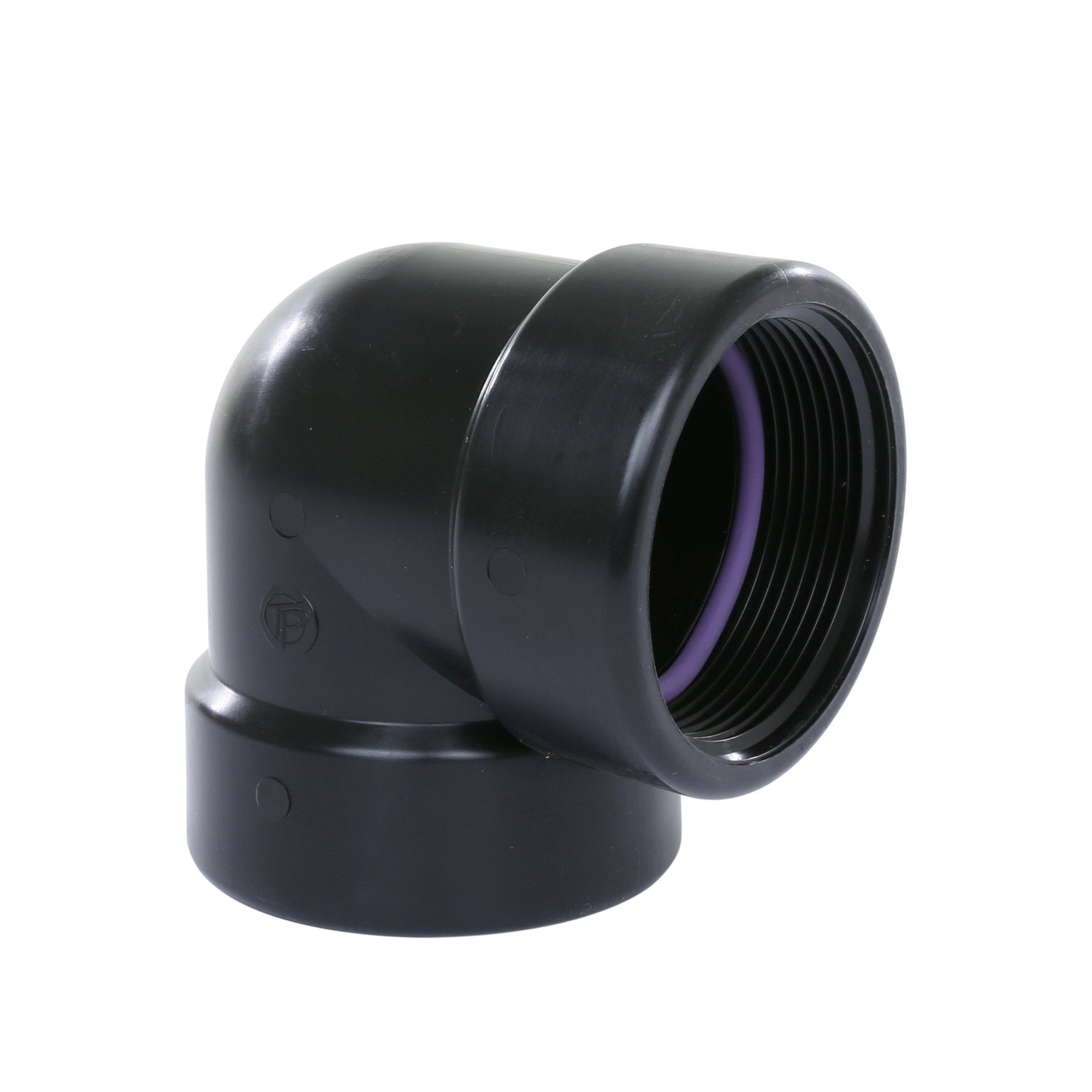

Self-Seal elbow 90°, PP, 2x female thread, 6 bar, 1"
Self-Seal elbow 90°, PP, 2x female thread, 6 bar, 1"
SKU:629214
Regular price
Cg. 10.73
Regular price
Sale price
Cg. 10.73
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010450
Complementary products v2
ProductListDrop
Connection size
1"
Connection type
female thread
Diameter
1"
Eancode
8717108008013
Pressure class
6 bar
Description
Self-Seal threaded fittings have a built-in O-ring for installation without Teflon tape. This saves time and material during installation. After installation, these couplings are still easy to turn without causing leakage.
This elbow joint can be used, for example, to connect two fittings or to extend a water pipe at a 90- degree angle.
The Self-Seal coupling has a nominal pressure of 6 bar. The maximum pressure is 8 bar at a temperature of 20 °C, and the maximum temperature is 60 °C. The higher the pressure, the lower the temperature the fittings can withstand, and vice versa.
