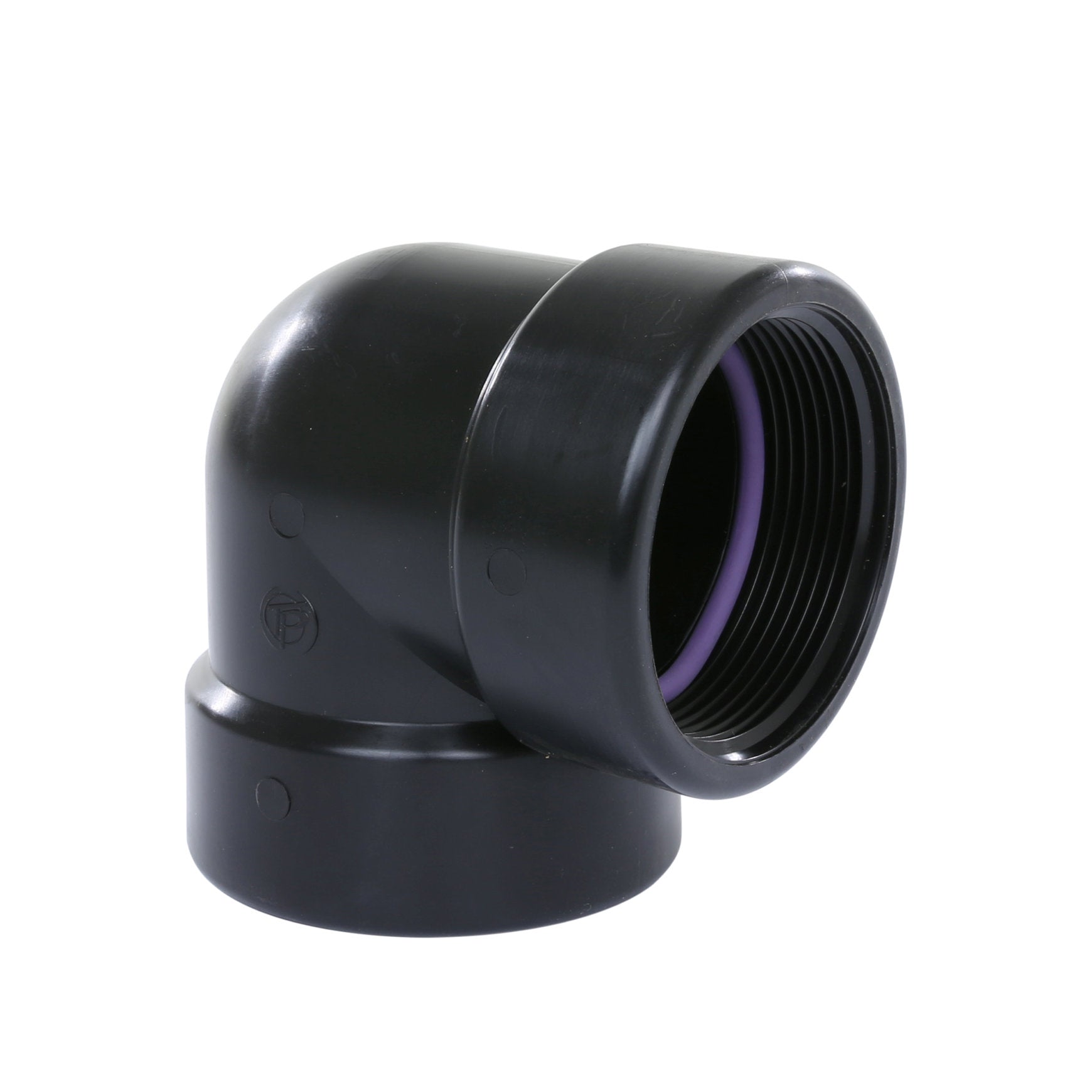

Self-Seal elbow 90°, PP, 2x female thread, 6 bar, 1¼"
Self-Seal elbow 90°, PP, 2x female thread, 6 bar, 1¼"
SKU:629216
Regular price
Cg. 24.79
Regular price
Sale price
Cg. 24.79
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Connection size
1¼"
Connection type
female thread
Diameter
1¼"
Eancode
8717108000260
Pressure class
6 bar
Description
Self-Seal wire fittings have a built-in o-ring for installation without Teflon tape. This saves time and material during installation. After installation, these couplings can still be easily rotated without any leakage occurring.
For example, this elbow can be used to connect two fittings, or to extend a water pipe at a 90 degree angle.
The Self-Seal coupling has a nominal pressure of 6 bar. The maximum pressure is 8 bar at a temperature of 20 °C, and the maximum temperature is 60 °C. The higher the pressure, the lower the temperature the fittings can withstand, and vice versa.
