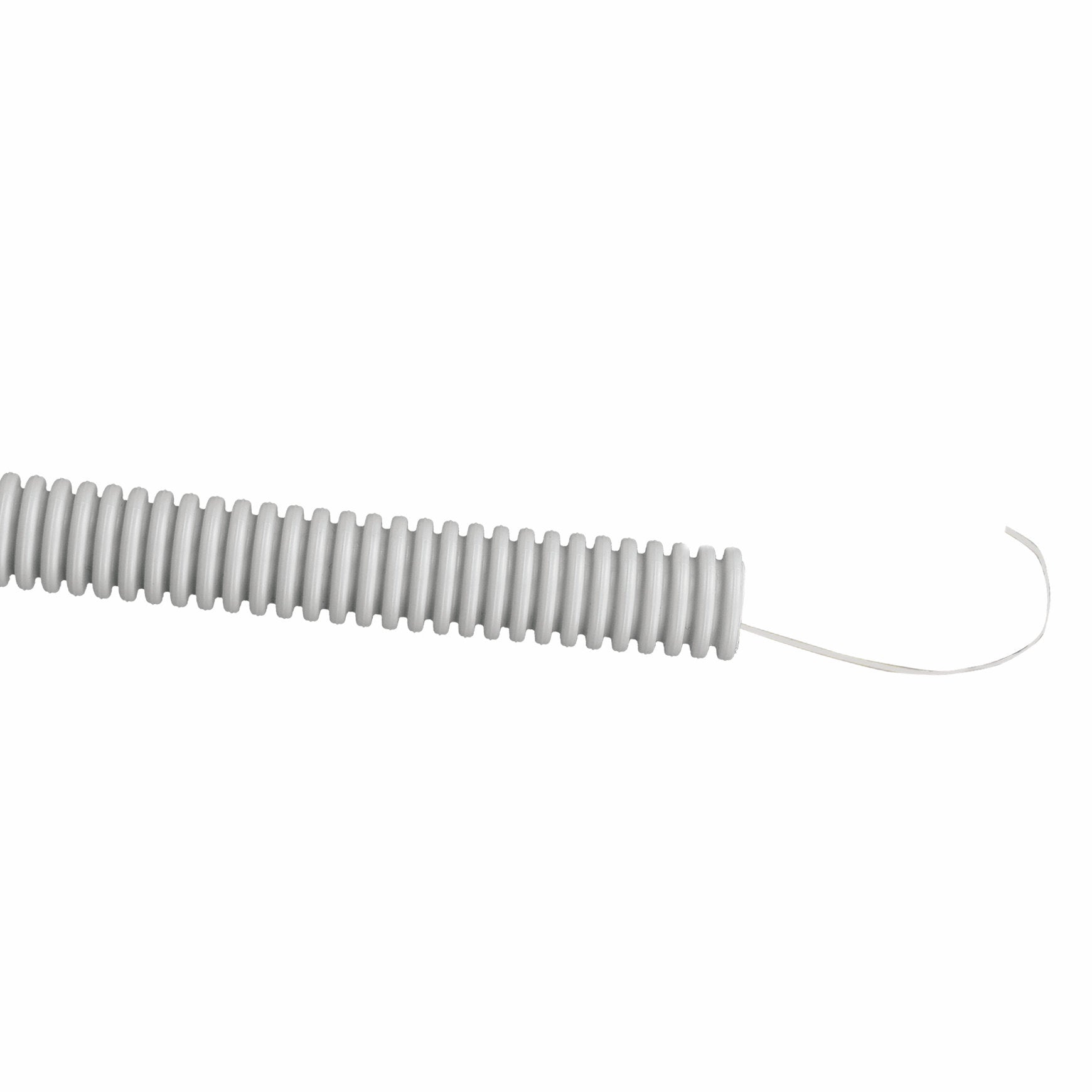

Snelflex pre-wired flexible conduit with pull wire, 16 mm, diam pull wire 0,79 mm, 100 m

Snelflex pre-wired flexible conduit with pull wire, 16 mm, diam pull wire 0,79 mm, 100 m

SKU:15000234

Cg. 112.18
Cg. 112.18
Sale Sold out
tax included
In stock
View full details

Specifications

Assortments
wca7001012
Complementary products v2
ProductListDrop
Connection size
16 mm
Core insulation
PVC
Jacket colour
light grey
Length
100 m
Outer casing
PP
Outer diameter
16 mm
Quality mark
Kema

Description

  • A sturdy flexible conduit made of high-quality polypropylene. The conduit has high impact resistance and is easy to work with.
  • To increase the fire safety of electrical installations, Snelflex conduits are manufactured in a flame-retardant, self-extinguishing and halogen-free version.
  • Standards:
    • EN61386-1
    • EN61386-22
    • EN60423
  • Class:
    • ICTA3422
  • Ribbed tube made of polypropylene copolymer.
  • Flame-retardant masterbatch.
  • Pressure resistance: 750N at 23°C.
  • Impact resistance: 6J at -5°C.
  • Minimum operating temperature: -5°C.
  • Maximum operating temperature: +90°C.
  • As additional insulation: maximum voltage 1000 V.
  • Fire class: non-flammable.
  • Halogen-free:
    • IEC 60754-1.
    • IEC 60754-2.
  • Low smoke:
    • IEC 61034-2.
