TECElogo AKB pipe PE-RT/AI/PE-RT, 16 mm, l = 100 m

TECElogo AKB pipe PE-RT/AI/PE-RT, 16 mm, l = 100 m

SKU:15583356

Cg. 644.32
Cg. 644.32
Sale Sold out
tax included
In stock
View full details

Specifications

Assortments
wca17000011
Complementary products v2
ProductListDrop
Connection size
16 mm
Diameter
16 mm
Eancode
4027255019683
Length
100 m
Material
PE-RT, aluminium
Precursor
15184038
Quality mark
Kiwa
Two badescription
TECElogo AKB buis PE-RT/AI/PE-RT, 16 mm, l = 100 m
Two badescription en
TECElogo AKB pipe, 16 mm, l = 100 m

Description

This TECElogo AKB pipe, also known as a multilayer pipe, is used in drinking water and central heating installations. The pipe is especially ideal for use in underfloor heating, where flexibility and long-term exposure to higher temperatures are important.

In addition to this multi-layer pipe, the TECElogo range includes various other couplings, such as:
  • Supply pipes.
  • Elbow pieces.
  • T-pieces.
  • Couplings.
  • Tools.

Properties

The TECElogo pipe has a maximum operating temperature of 70 °C and a maximum pressure of 10 bar for drinking water and heating systems.

Material

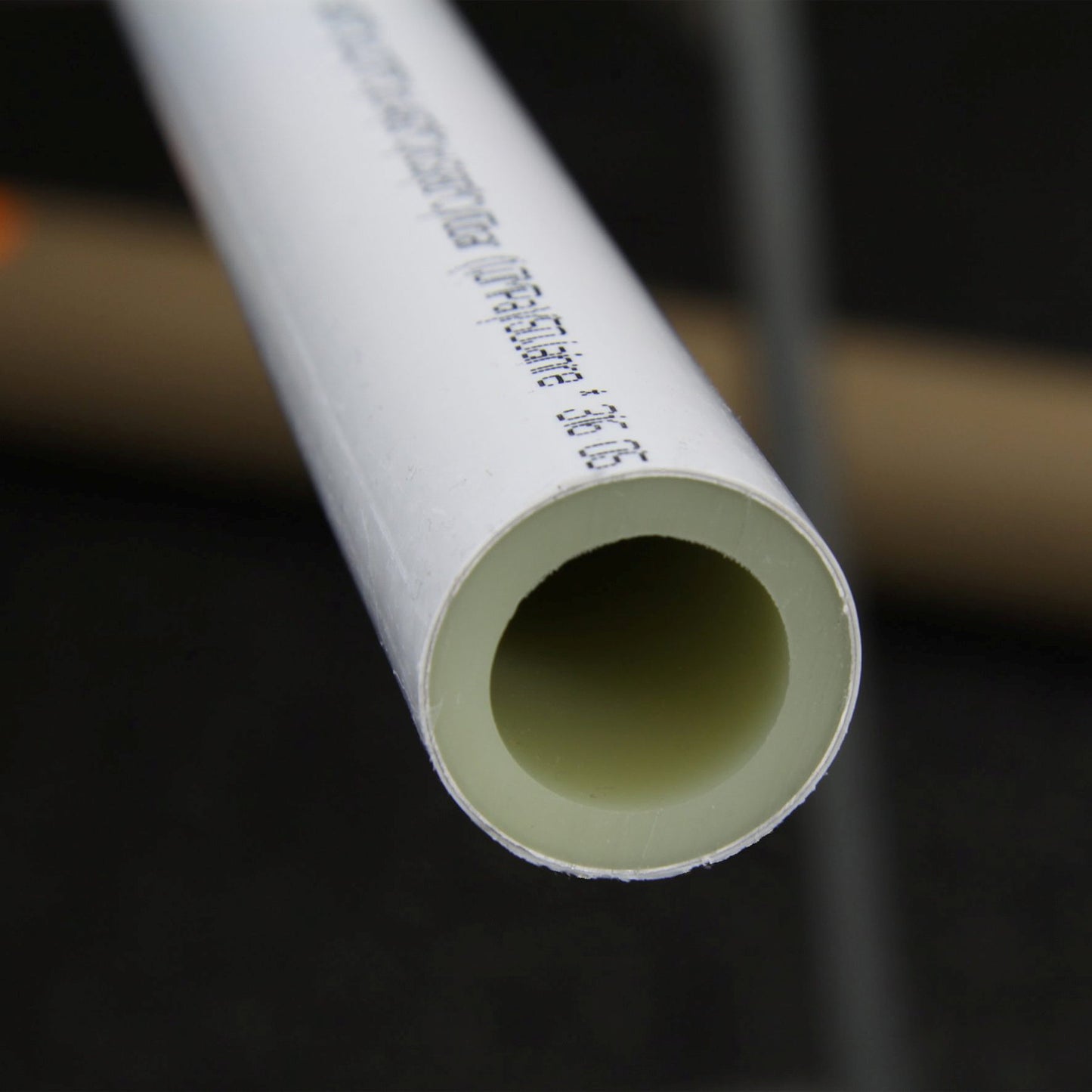

The TECElogo pipe consists of multiple pipe layers. The inner layer is made of PE-RT plastic, which ensures that the pipe is easy to bend. The intermediate layers consist of an adhesive layer, with the aluminum making the pipe oxygen-tight. The outer layer consists of a protective coating of PE-RT.

Assembly

To assemble the multi-layer pipe, you can use the handy toolbox which includes a pipe cutter, calibration, and chamfering tools. Since the TECElogo system uses push-fit fittings, no special pressing tools are required.

The assembly of the pipe goes in a few steps:
  • Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
  • Insert the pipe into the coupling and check through the inspection window to ensure the pipe is inserted far enough into the fitting.
  • The clamp ring inside the coupling creates a secure connection, with the O-rings providing the seal.
  • Made the wrong connection? Use the disassembly spanner to dismantle the connection.
After assembling, the system should be checked for tightness.
