Trevitech dry-running protection, type Logicstop PLUS
Trevitech dry-running protection, type Logicstop PLUS
SKU:15531086
Regular price
Cg. 161.82
Regular price
Sale price
Cg. 161.82
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca6100025
Complementary products v2
ProductListDrop
Two badescription
Trevitech droogloopbeveiliging, Logicstop PLUS
Two badescription en
Trevitech dry-running protection, type Logicstop PLUS
Type
Logicstop Plus
Voltage
230 V
Description
The Trevitech Logicstop PLUS dry-run protection device stops the pump in the event of a water shortage, thus preventing it from running dry. It also switches the pump off if the power consumption exceeds 10 A, thus also protecting the pump against overcurrent.
The dry-run/pump protection device is plugged into the wall socket, and the pump is then connected to it. As soon as the water stops flowing, the dry-run protection device will switch the pump off. This prevents damage to the pump caused by running dry.
In the event of a temporary power failure, the dry-run protection will automatically switch the pump back on as soon as the power is restored.
The Logicstop PLUS is suitable for pumps with a power consumption of 6 to 10 ampere.
The dry-run/pump protection device is plugged into the wall socket, and the pump is then connected to it. As soon as the water stops flowing, the dry-run protection device will switch the pump off. This prevents damage to the pump caused by running dry.
In the event of a temporary power failure, the dry-run protection will automatically switch the pump back on as soon as the power is restored.
The Logicstop PLUS is suitable for pumps with a power consumption of 6 to 10 ampere.
Setting
This dry-run protection device adjusts itself to the values it measures when the pump is working properly:- Plug the pump into the socket and make sure it is working properly.
- Then plug the dry-run protection device into the wall socket and plug the pump in.
- After a few seconds, the protection device will save the measured current as a default value.

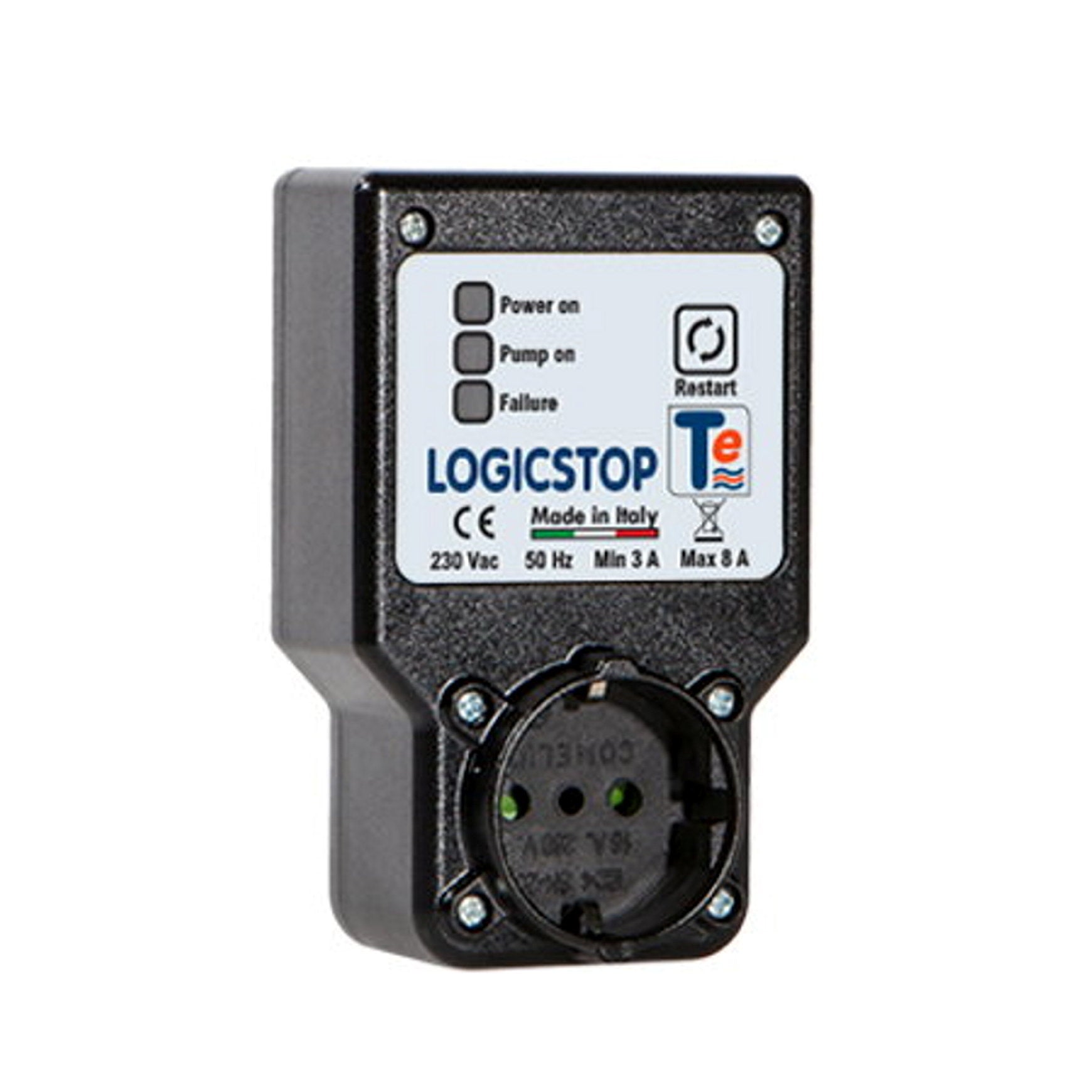

Display
The dry-run protection device has a clear display showing the following:- Power on.
- Pomp on.
- Fault (dry running or overcurrent).
- Restart.
Do you want to buy a dry-run protection device or need more information?
The desired dry-run protection device can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which dry-run protection device would be best for your situation? Contact one of our pump specialists for advice without obligation.
