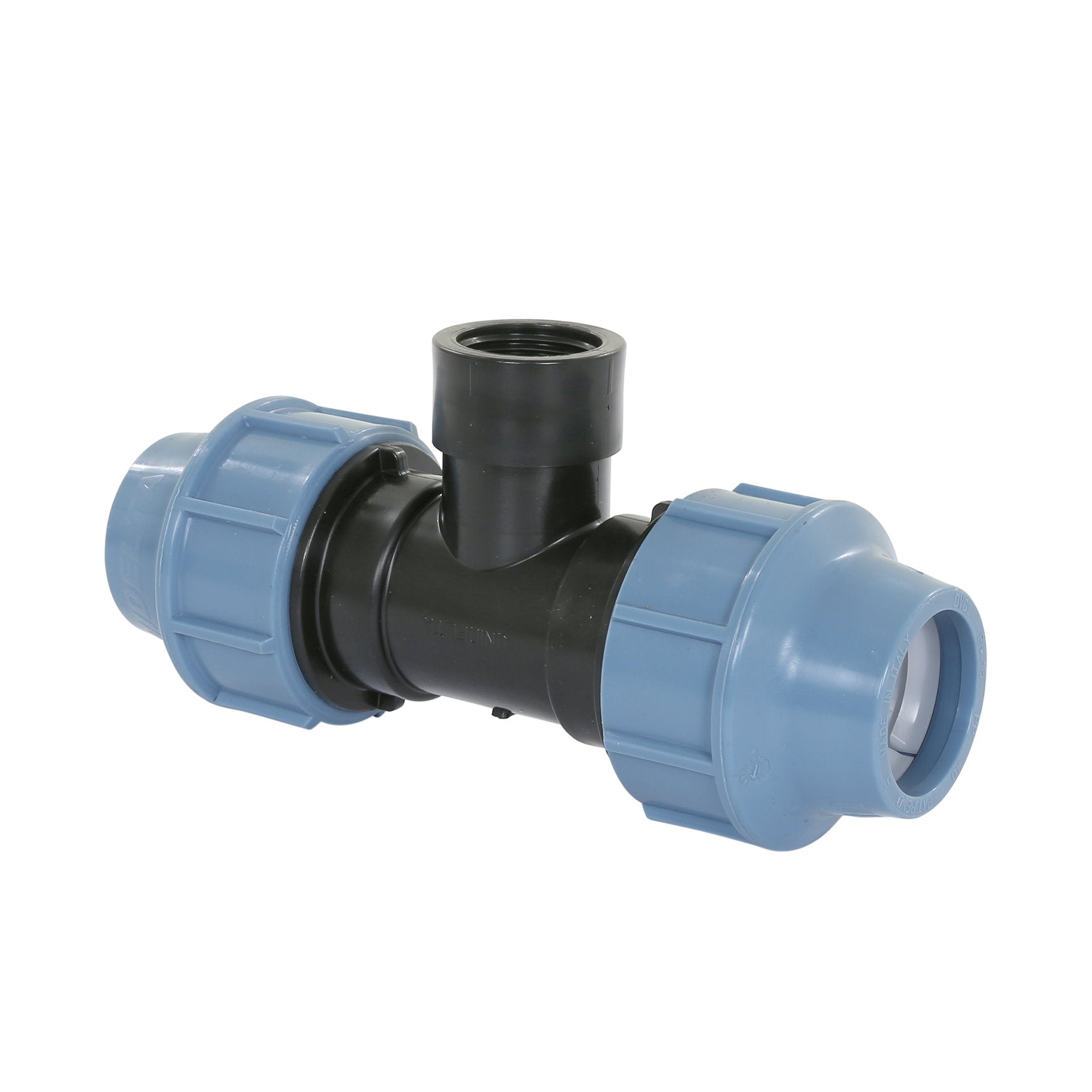

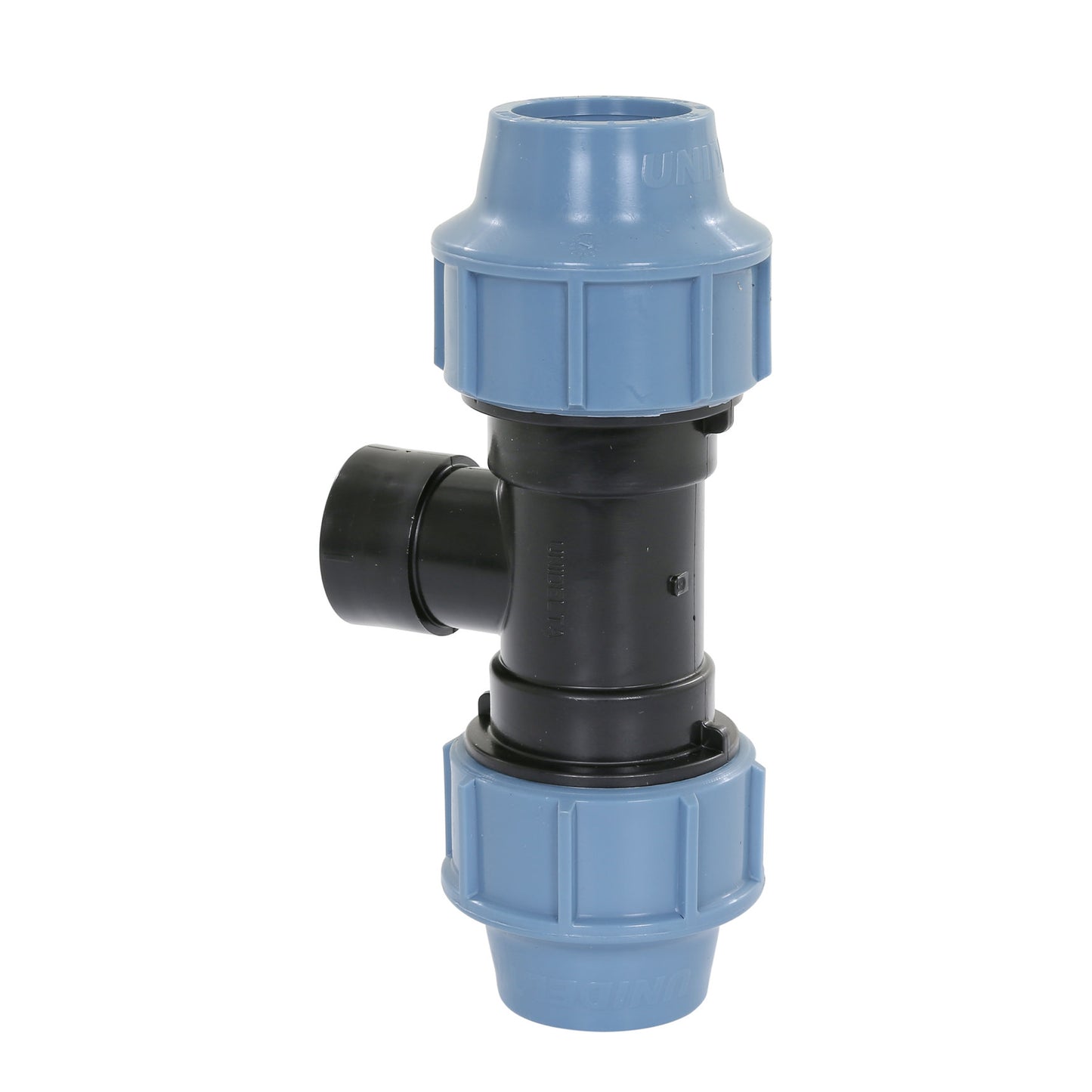

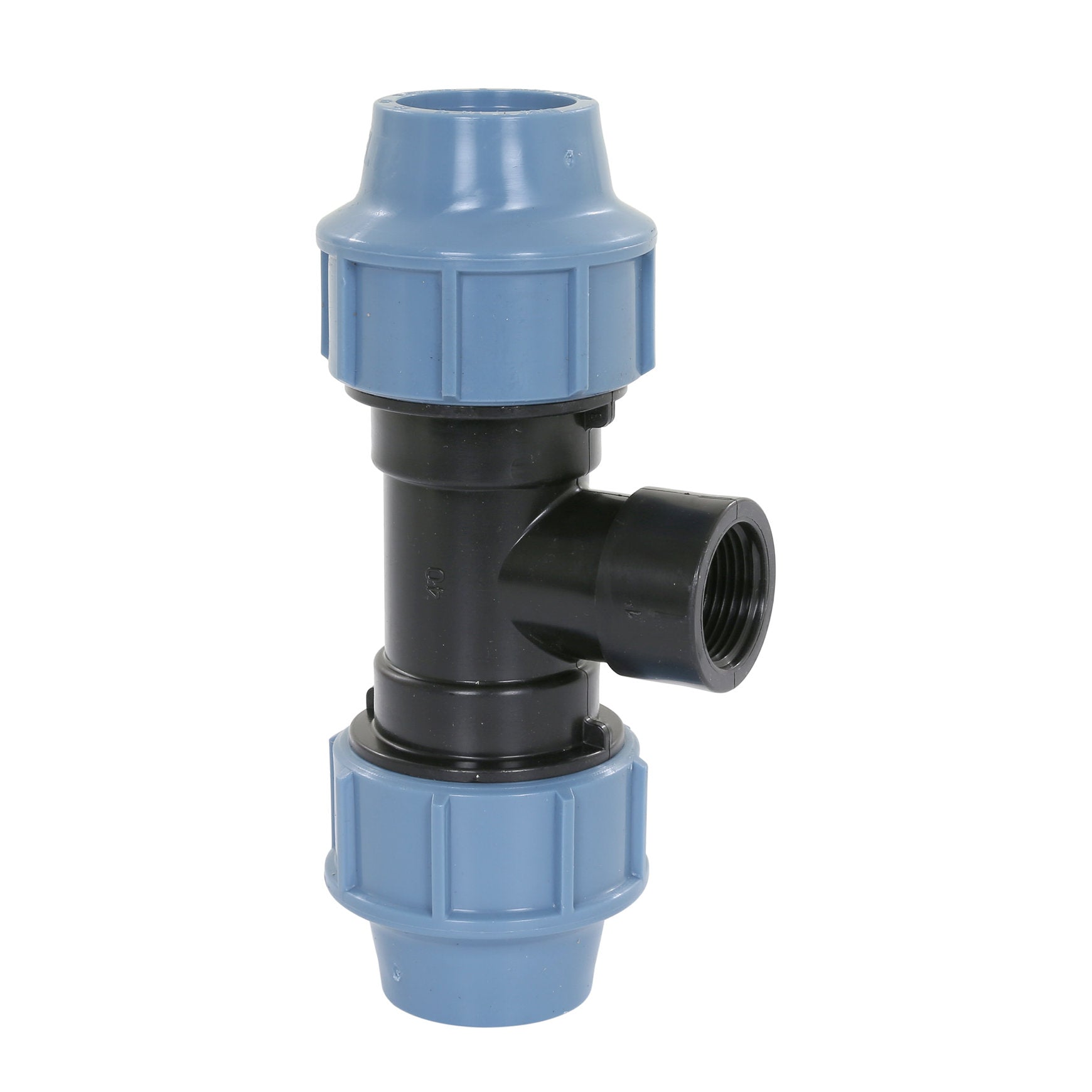

Unidelta threaded T-piece 90°, PP, 2x clamp/1x female thread, Kiwa, 16 bar, 20 mm x ¾"
Unidelta threaded T-piece 90°, PP, 2x clamp/1x female thread, Kiwa, 16 bar, 20 mm x ¾"
SKU:819309
Regular price
Cg. 9.43
Regular price
Sale price
Cg. 9.43
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Connection size
20 mm, ¾"
Connection type
clamp x female thread
Diameter
20 mm, ¾"
Eancode
8030884001154
Material
pp (polypropyleen)
Pressure class
16 bar
Quality mark
Kiwa
Description
This Unidelta screw T-piece is suitable for drinking water pipes. This coupling can, for example, be used to connect a polyethylene hose to the pressure side of a pump. The solid coupling is pull-resistant and is often used by professionals.
Assembly
Saw or cut the PE pressure pipe at a right angle and insert it until it reaches the stop edge of the polyethylene coupling. Then tighten the nut firmly, the coupling is ready for use. If desired, you can tighten the nut another half turn with a suitable wrench or spanner.
