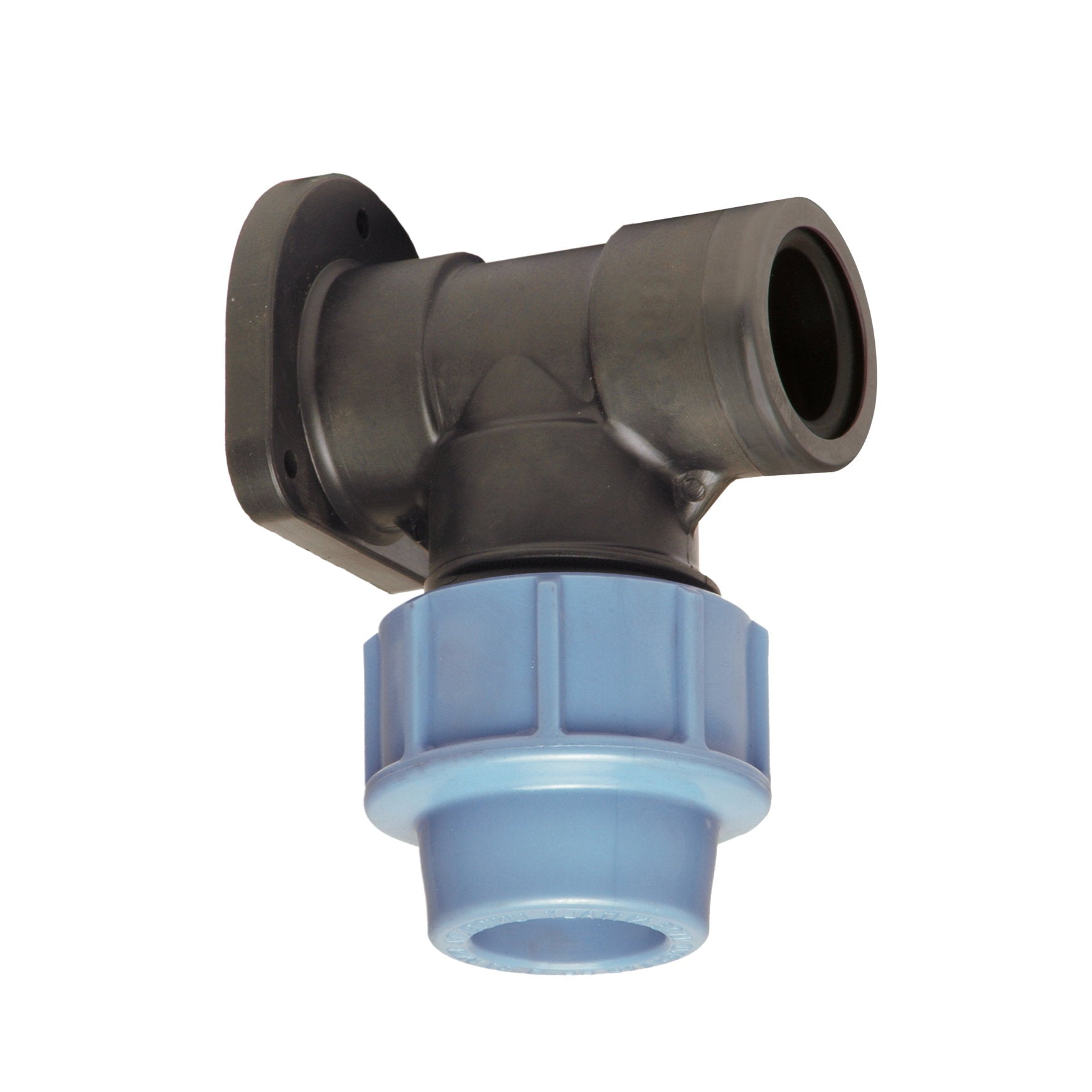

Unidelta wall plate elbow, PP, clamp x female thread, 16 bar, 20 mm x ½"
Unidelta wall plate elbow, PP, clamp x female thread, 16 bar, 20 mm x ½"
SKU:819349
Regular price
Cg. 17.27
Regular price
Sale price
Cg. 17.27
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Connection size
20 mm, ½"
Connection type
clamp x female thread
Diameter
20 mm, ½"
Eancode
8030884007835
Material
pp (polypropyleen)
Pressure class
16 bar
Quality mark
Kiwa
Description
This Unidelta wall plate is suitable for drinking water pipes. You can use this coupling to connect a faucet to a PE pipe. The wall plate can be attached to a wall or pole, for example. The sturdy coupling is pull-resistant and is often used by professionals.
Installation
Cut the PE pressure pipe straight or use a cutter and insert it until it reaches the stop edge of the polyethylene coupling. Then tighten the nut firmly, the coupling is ready for use. If desired, you can tighten the nut half a turn more with a suitable wrench or spanner.
