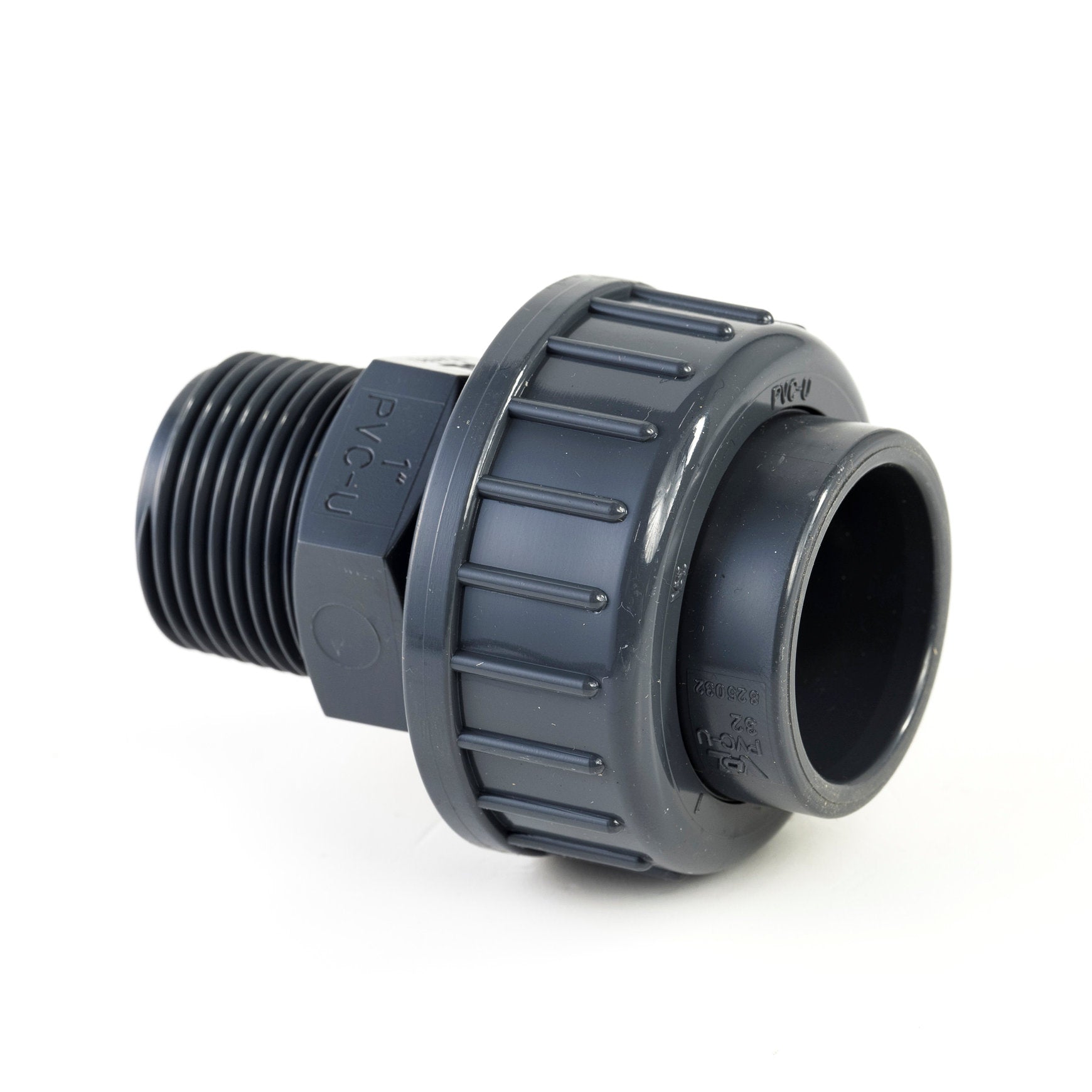

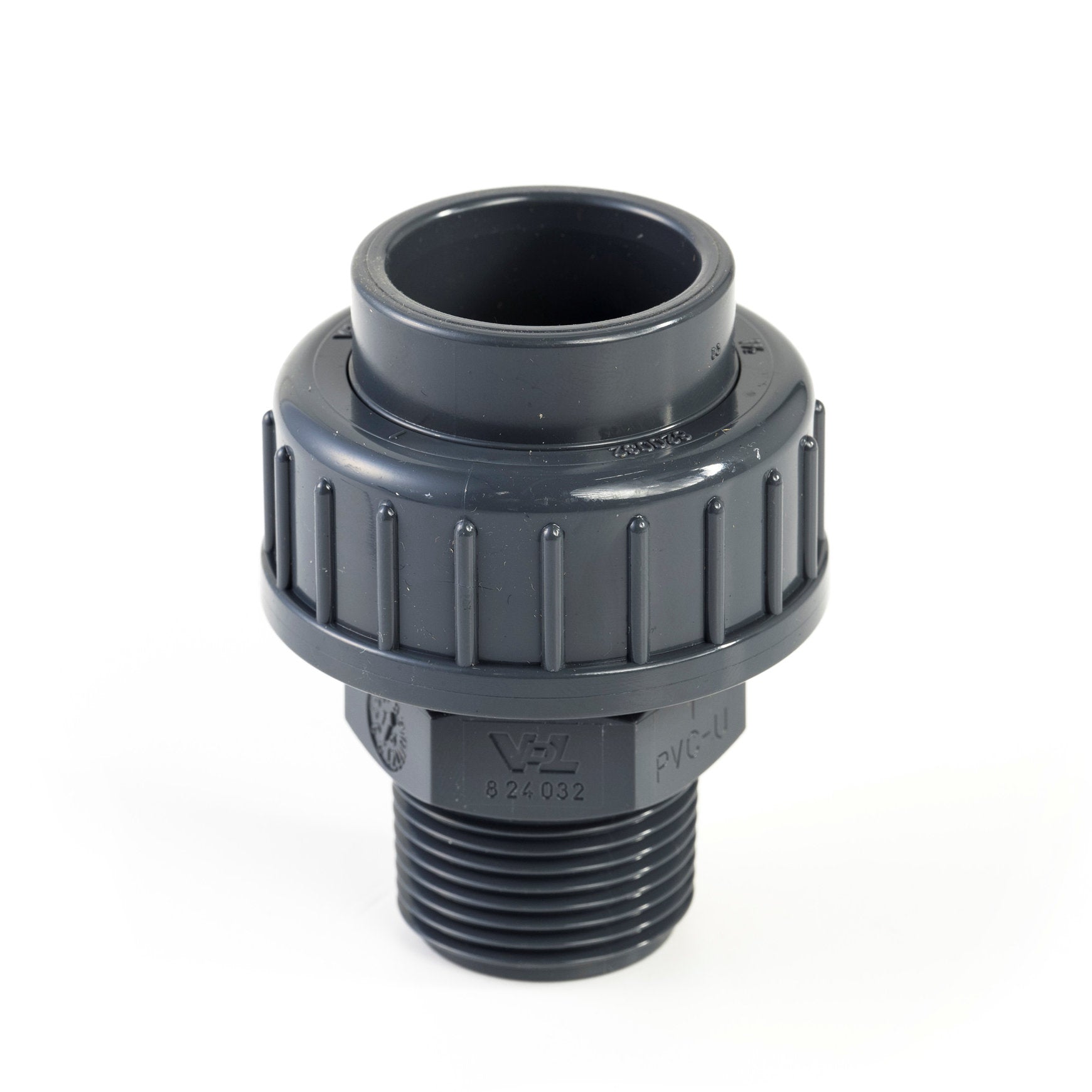

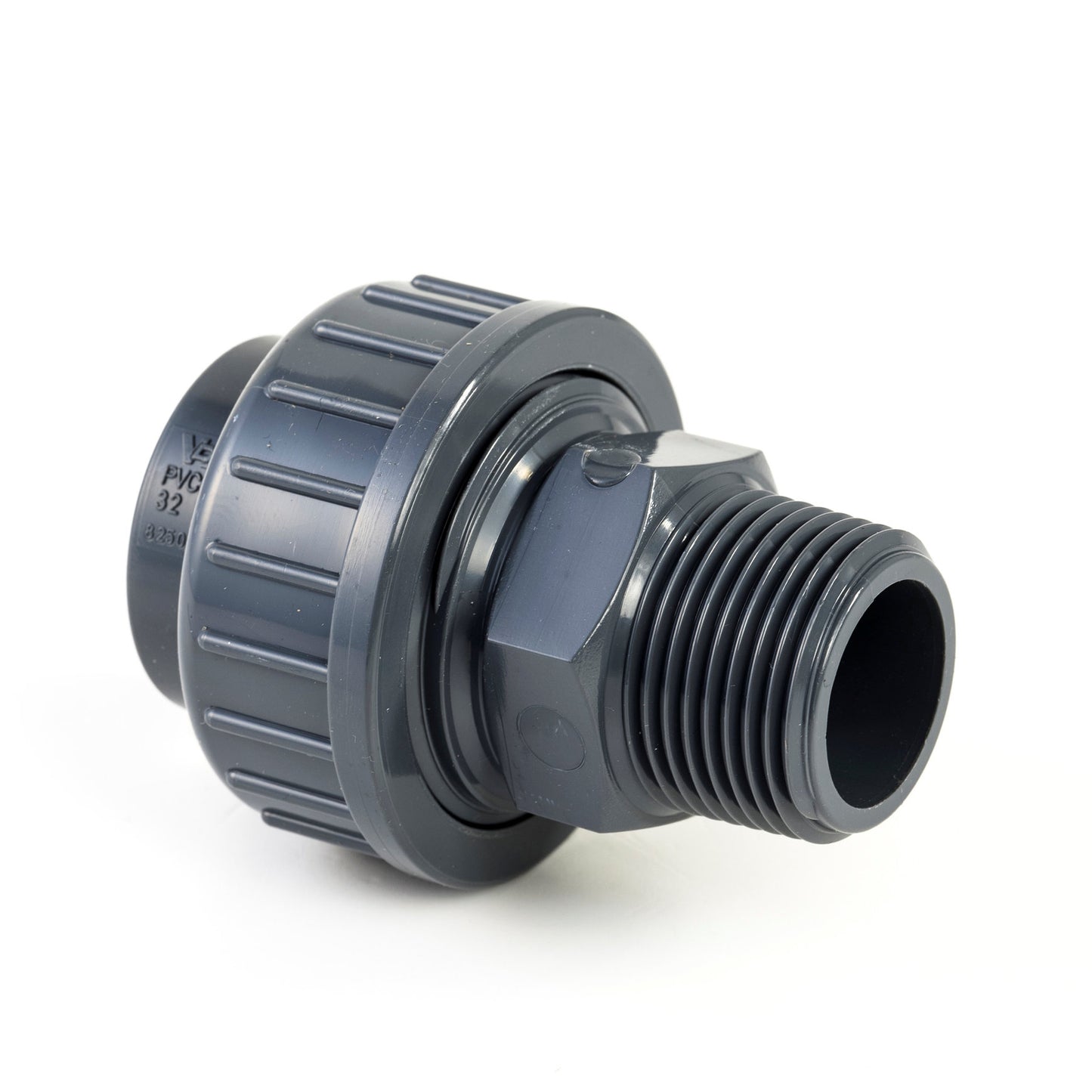

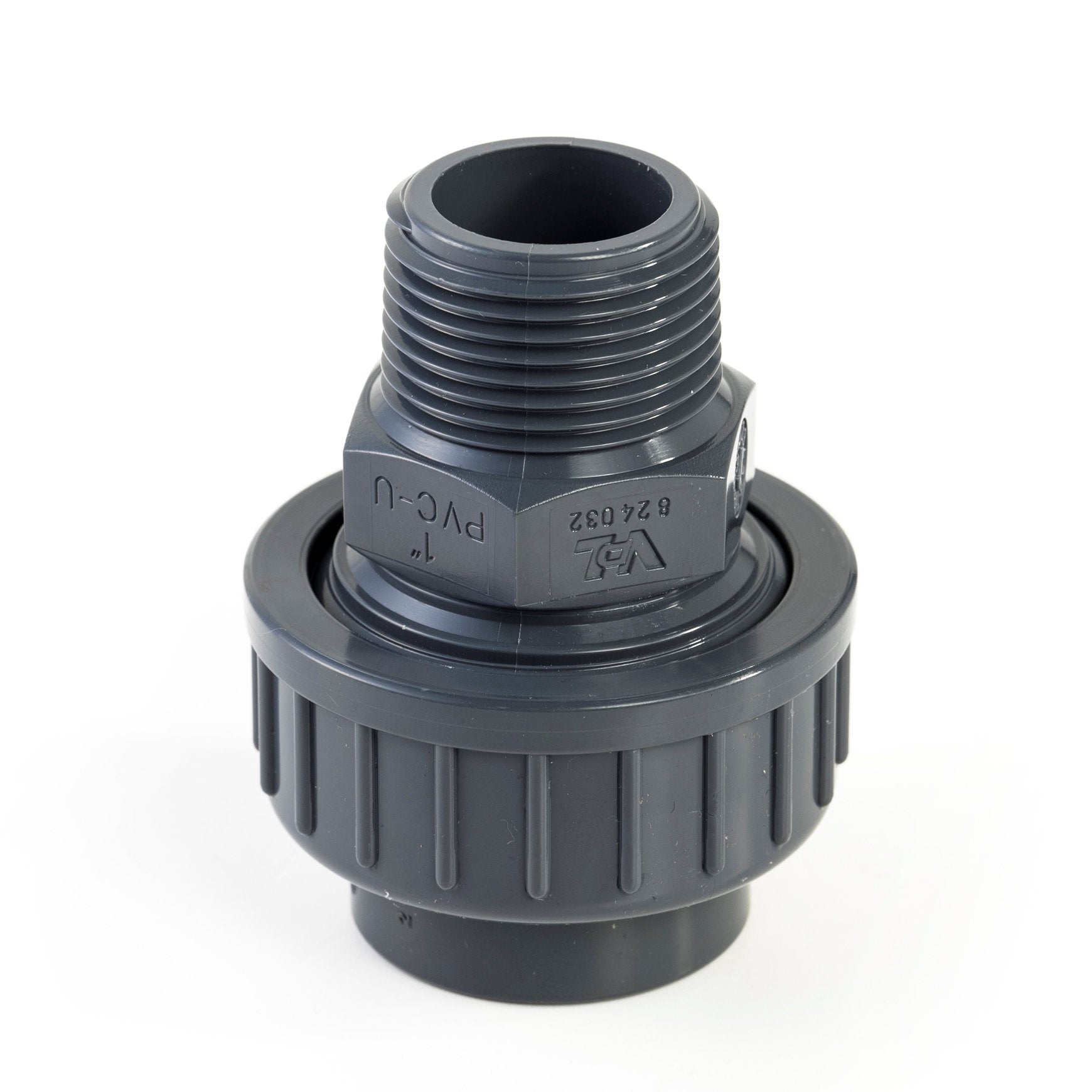

VDL 3-piece connector, PVC-U, glue socket x male thread, EPDM, 16 bar, 32 mm x 1"
VDL 3-piece connector, PVC-U, glue socket x male thread, EPDM, 16 bar, 32 mm x 1"
SKU:716096
Regular price
Cg. 17.63
Regular price
Sale price
Cg. 17.63
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1", 32 mm
Connection type
male thread x internal glue
Diameter
1", 32 mm
Eancode
8717284022759
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Description

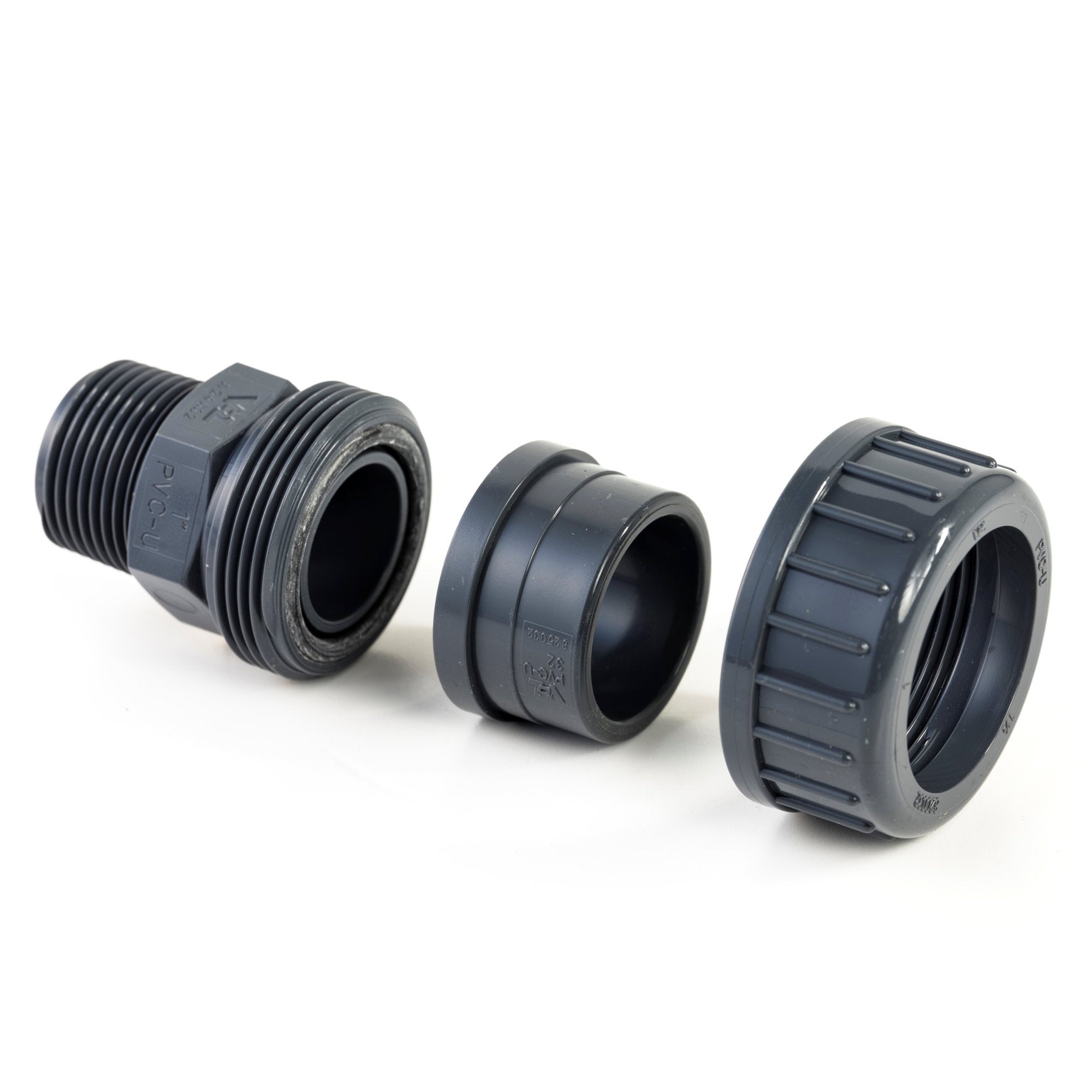

This 3-piece connector can be used to connect pressure pipes, pressure fittings and accessories. An advantage of using a 3-piece connector is that you can easily and quickly disconnect and reconnect it. To disconnect, simply unscrew the union nut.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
