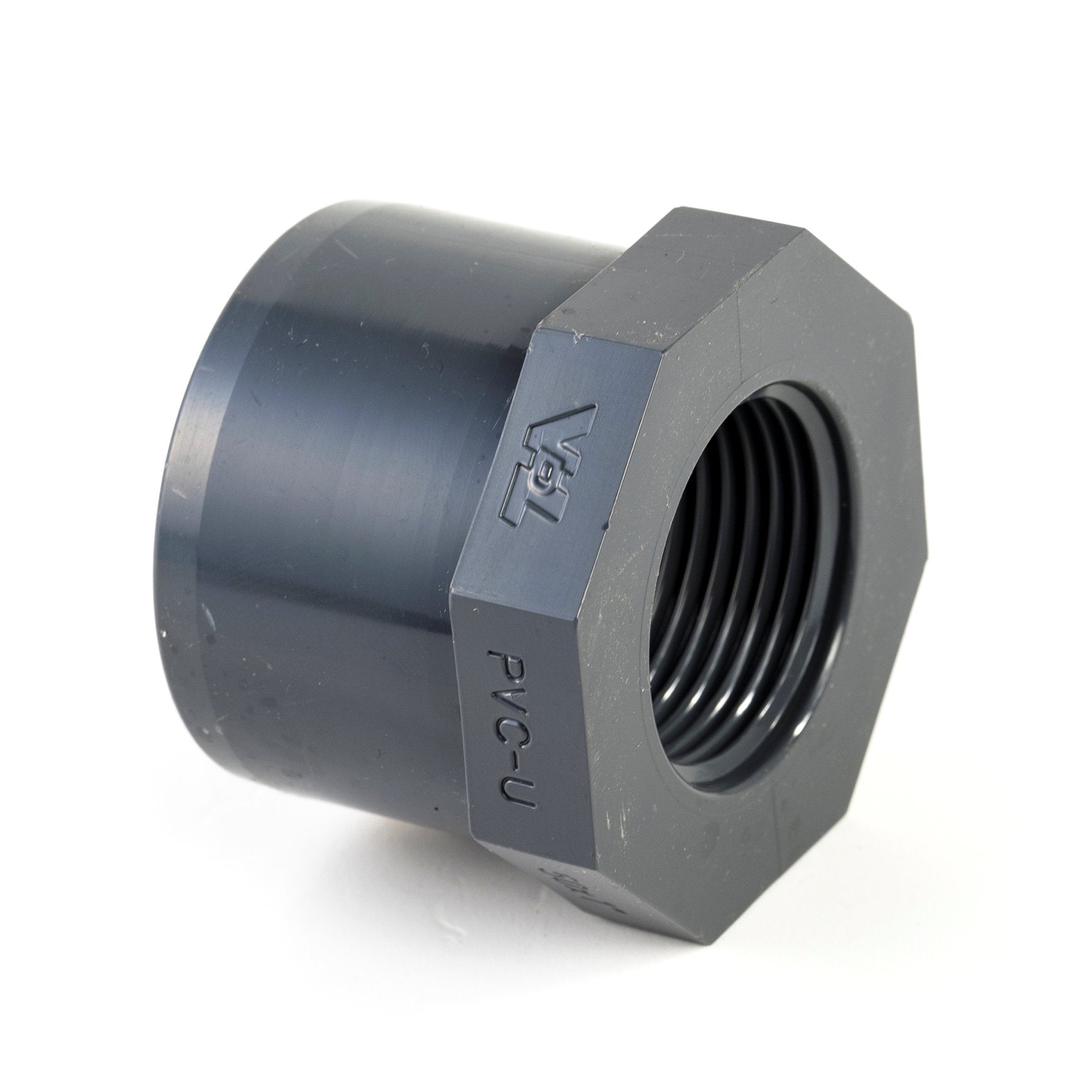

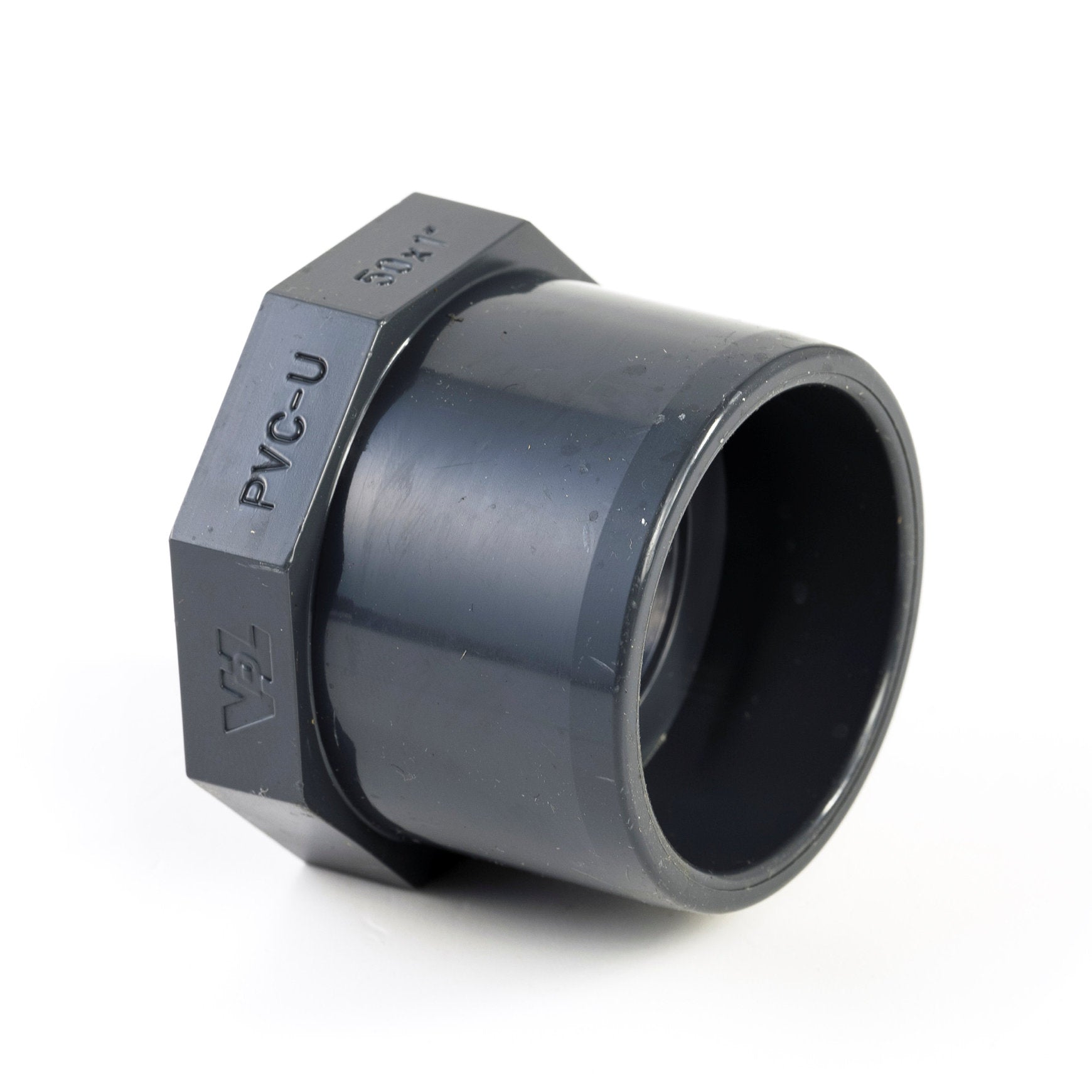

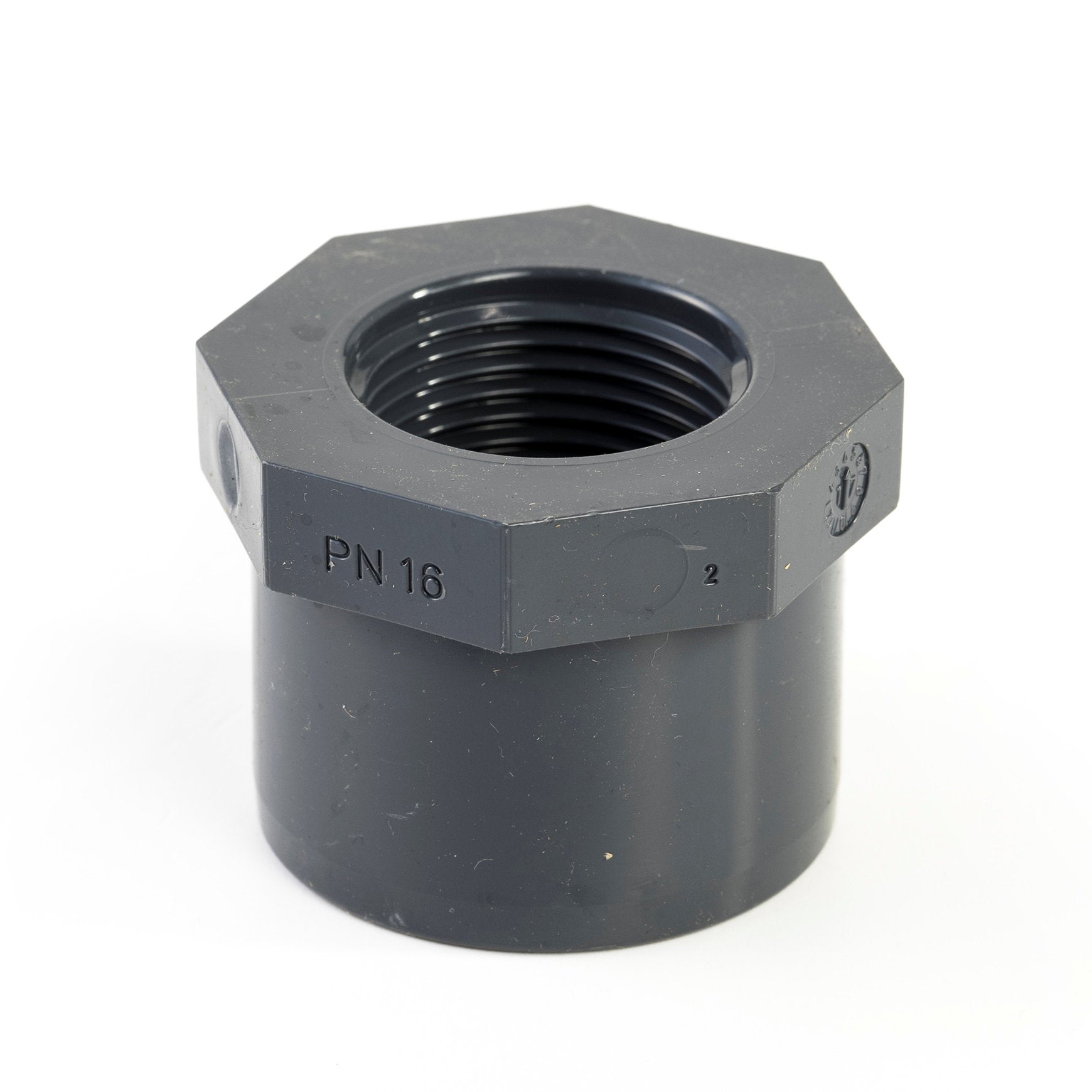

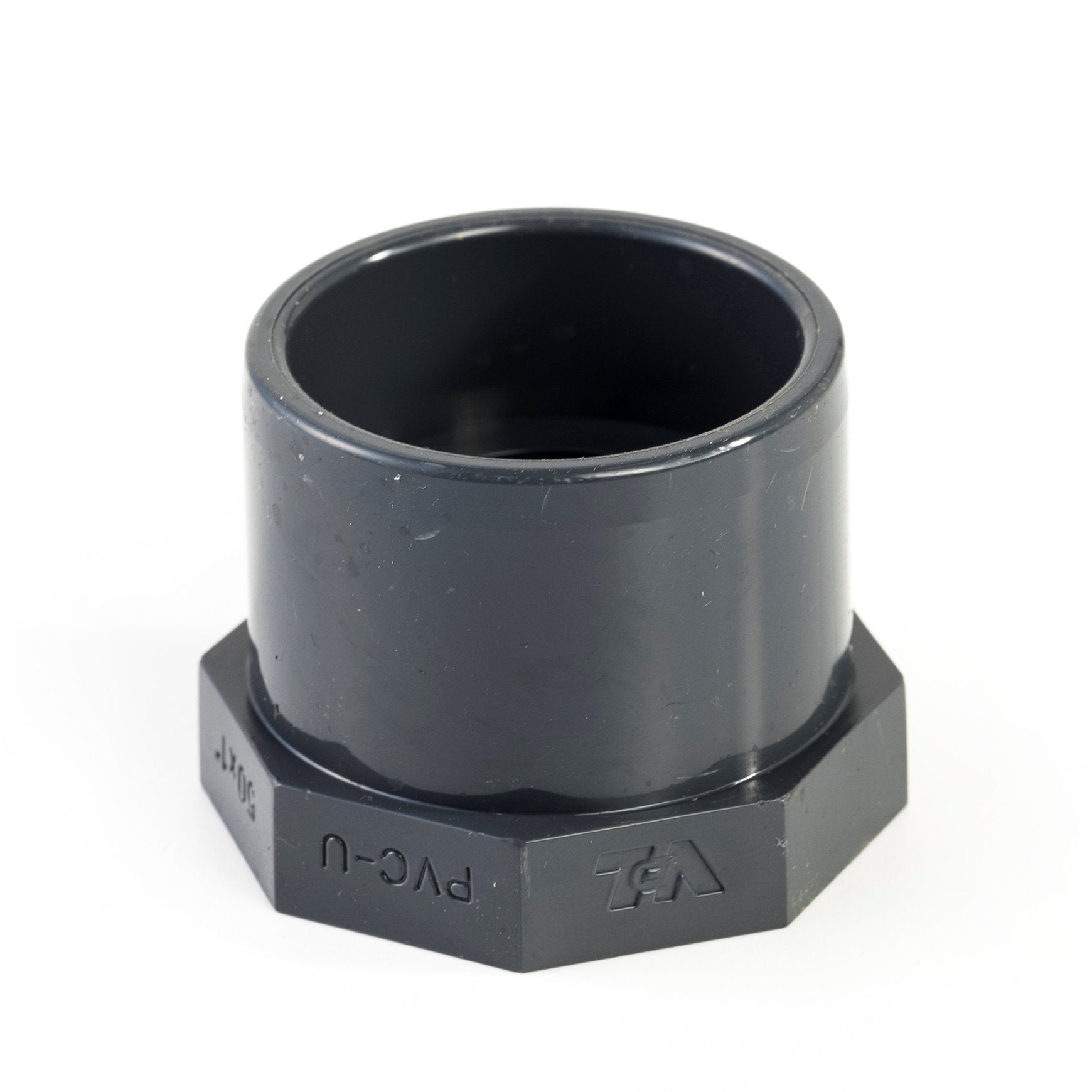

VDL threaded adaptor bush, type A, PVC-U, glue spigot x female thread, 16 bar, 75 mm x 1½"
VDL threaded adaptor bush, type A, PVC-U, glue spigot x female thread, 16 bar, 75 mm x 1½"
SKU:716185
Regular price
Cg. 27.05
Regular price
Sale price
Cg. 27.05
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1½", 75 mm
Connection type
female thread x external glue
Diameter
1½", 75 mm
Eancode
8717284020632
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzet-schroefring, pvc-u, uitw lijm x bidr., 75 mm x 1½"
Two badescription en
VDL thr. insert ring, ext.glue x f.thr., A, 75 mm x 1½"
Description
This threaded adaptor bush is glued into an accessory when a transition connection is needed.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
