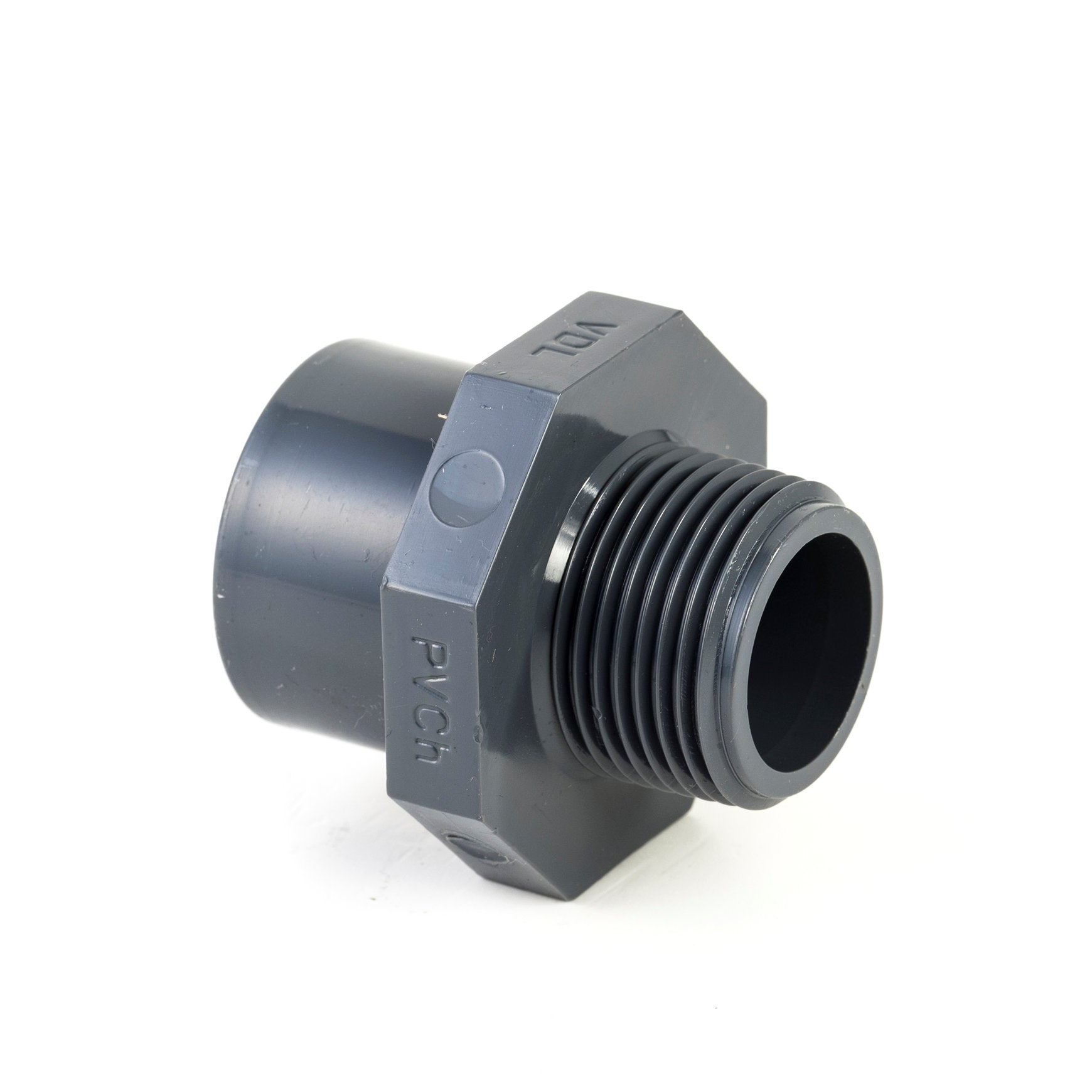

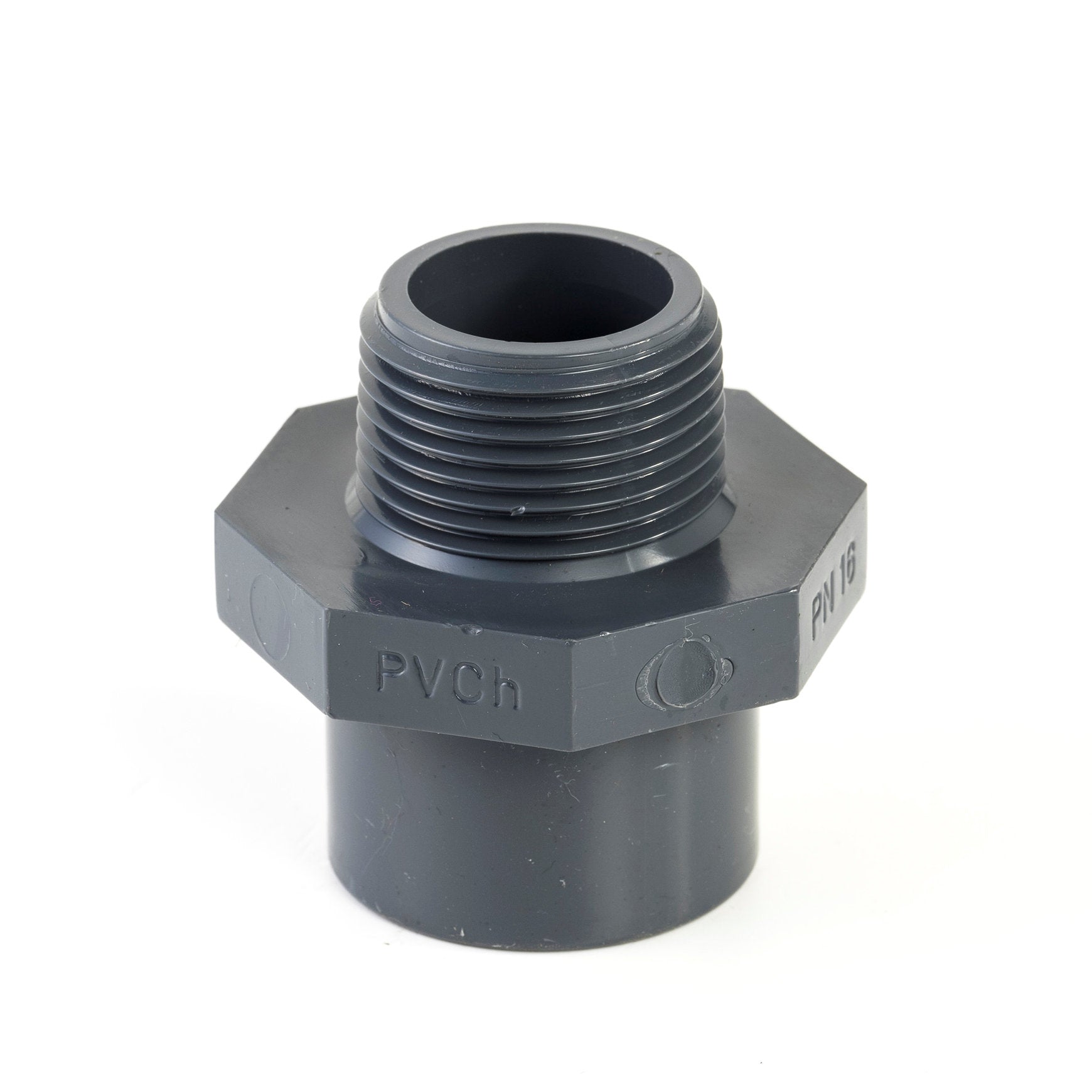

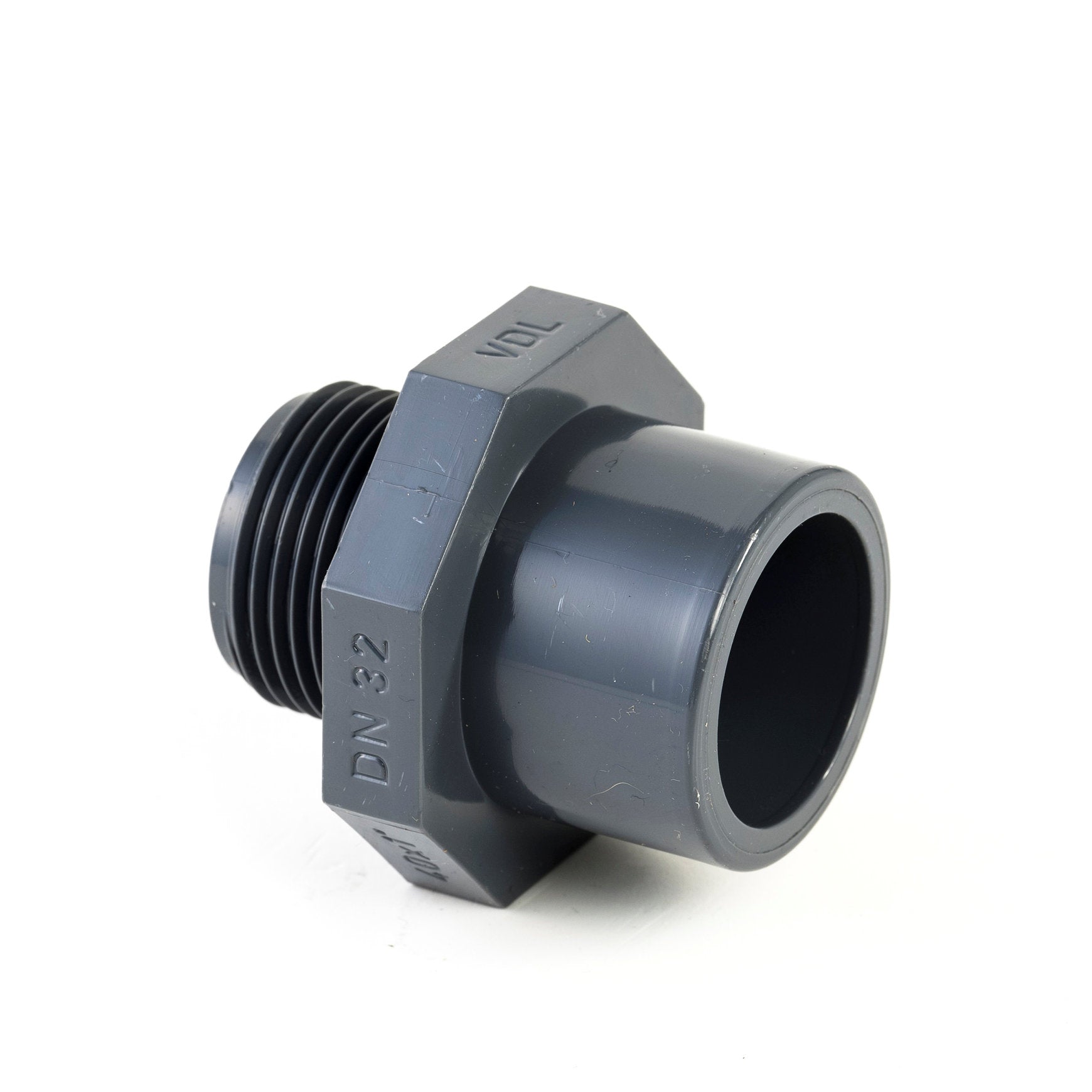

VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 40 mm x 1¼"
VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 40 mm x 1¼"
SKU:716124
Regular price
Cg. 5.83
Regular price
Sale price
Cg. 5.83
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1¼", 40 mm
Connection type
male thread x external glue
Diameter
1¼", 40 mm
Eancode
8717284022131
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzet-draadeind, pvc-u, uitw. lijm x bu.dr., 40 mm x 1¼"
Two badescription en
VDL insert thr. socket, ext. bond x m.thr., 40 mm x 1¼"
Description
This PVC male threaded adaptor fits into an accessory and includes a tightening nut. The maximum working pressure of this male threaded adaptor is 16 bar. This male threaded adaptor has a diameter of 40 mm, glue spigot and 1¼” male thread.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
