VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 25/32 mm x ¾"
VDL male threaded adaptor, PVC-U, glue spigot x male thread, 16 bar, 25/32 mm x ¾"
SKU:716122
Regular price
Cg. 5.02
Regular price
Sale price
Cg. 5.02
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
25 mm, 32 mm, ¾"
Connection type
male thread x external glue
Diameter
25 mm, 32 mm, ¾"
Eancode
8717284015089
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL inzetdraadeind, pvc-u, inw/uitw lijm x bu.dr., 32 mm x¾"
Two badescription en
VDL insert thr. socket, int/ext bond x m.thr., 25/32 mm x ¾"
Description

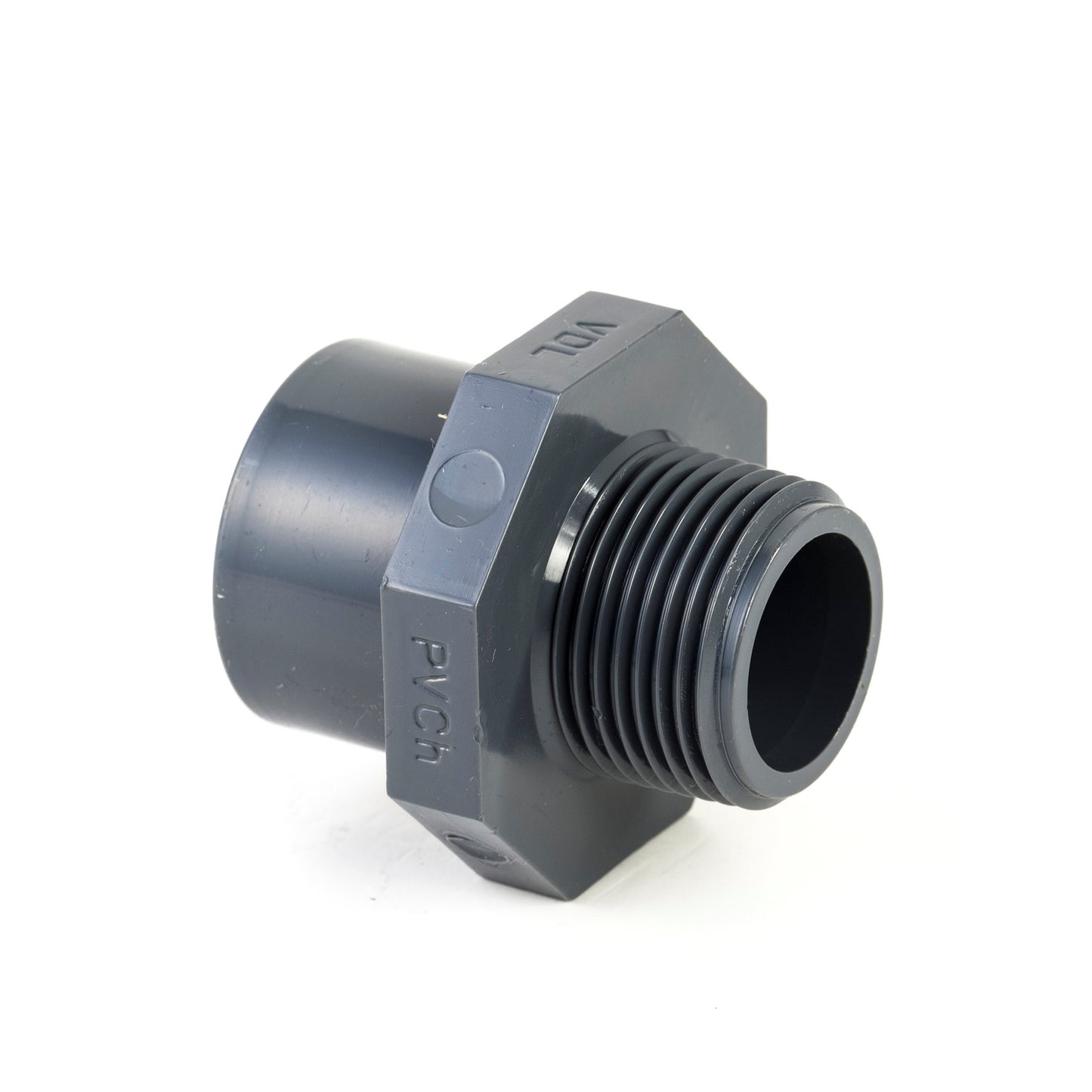

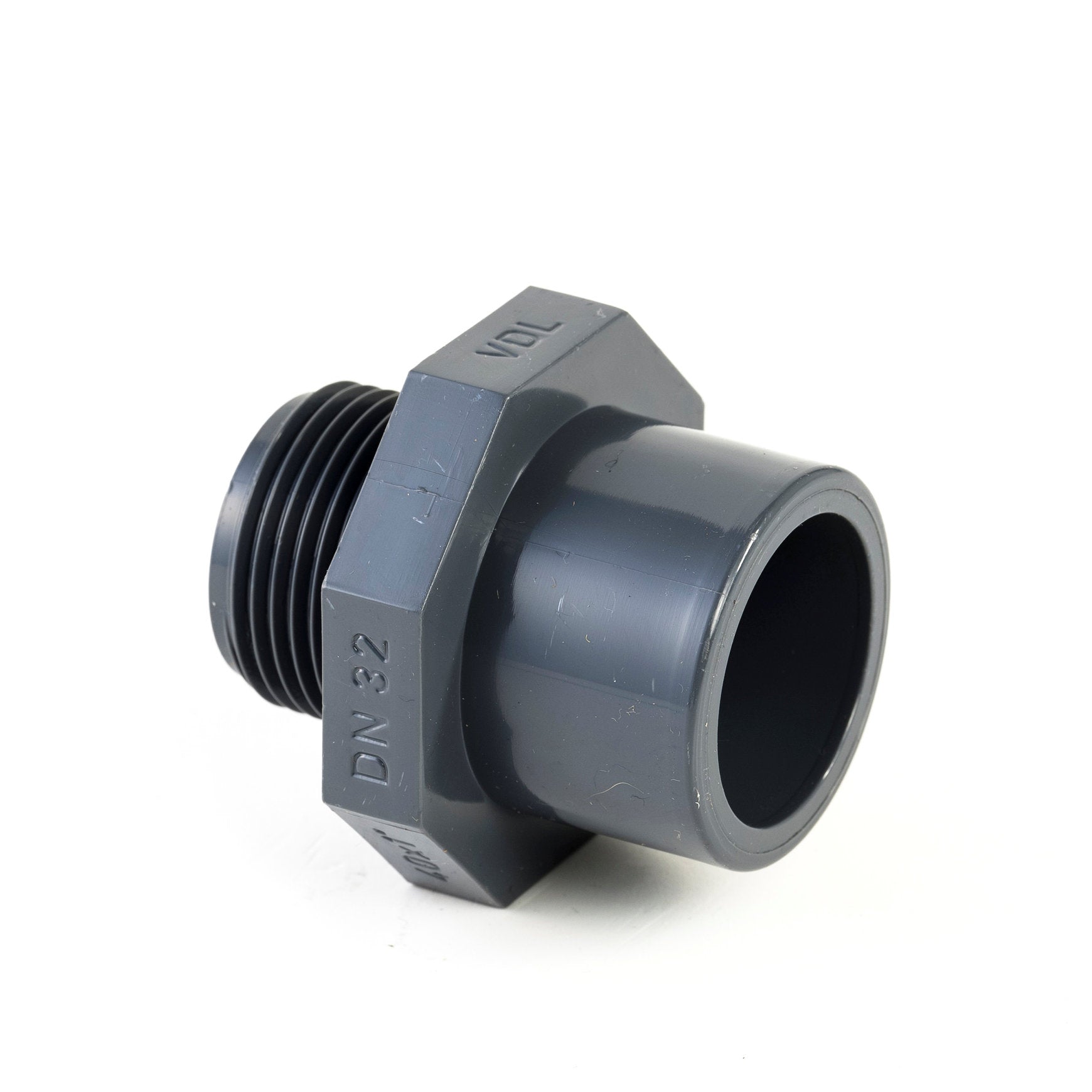

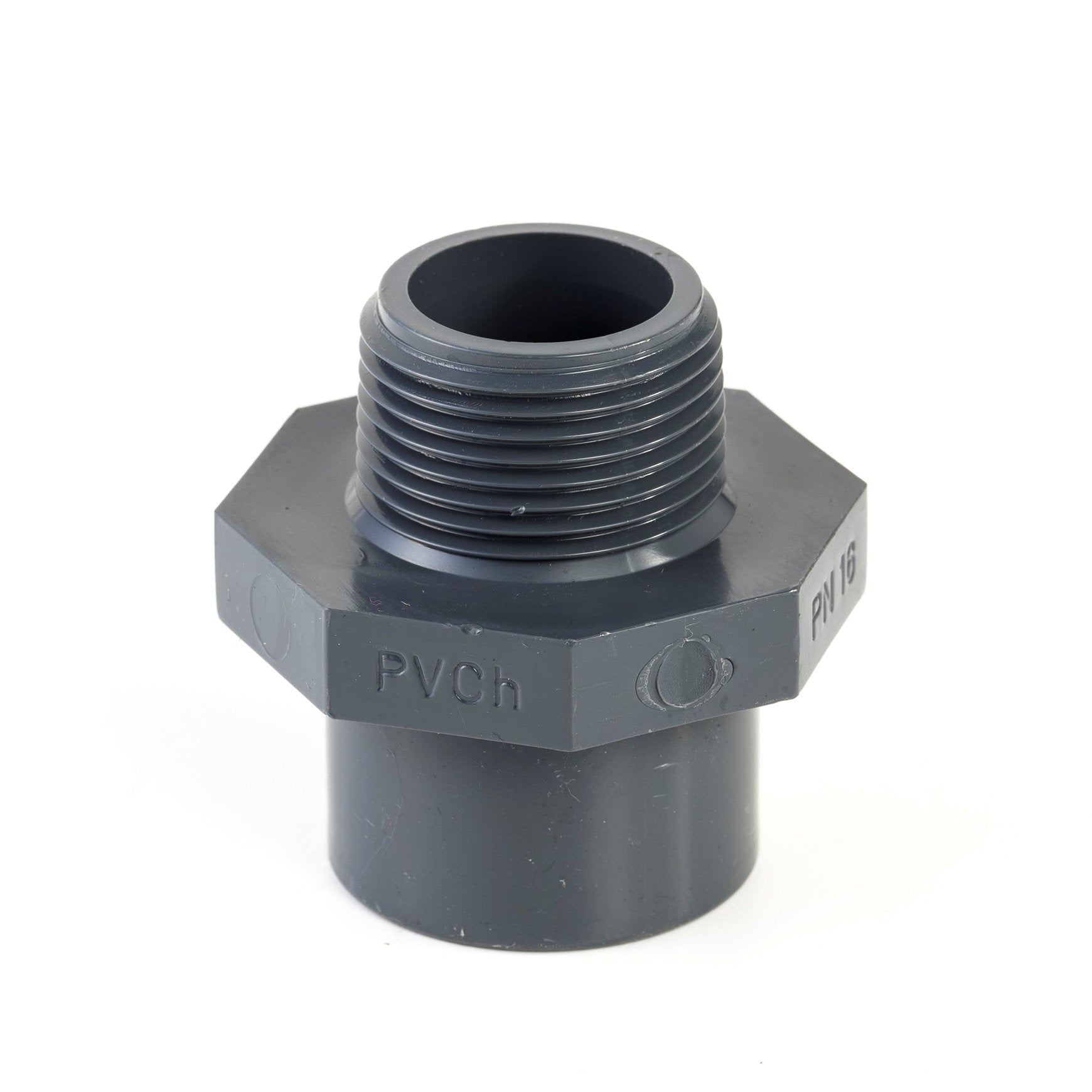

This PVC male threaded adaptor fits into an accessory and includes a tightening nut. The maximum working pressure of this male threaded adaptor is 16 bar. This male threaded adaptor has a diameter of 25/32 mm, glue spigot and ¾” male thread.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
