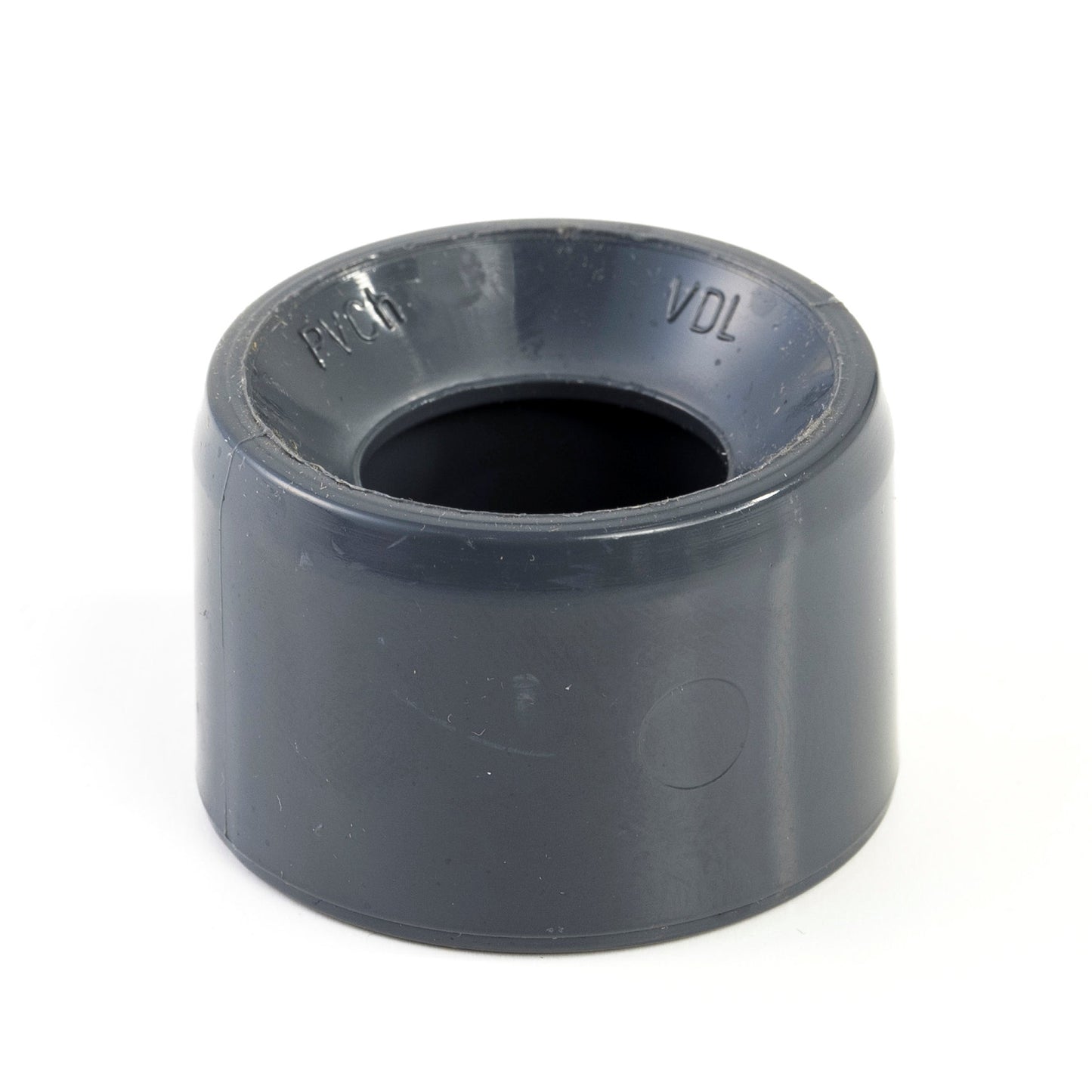

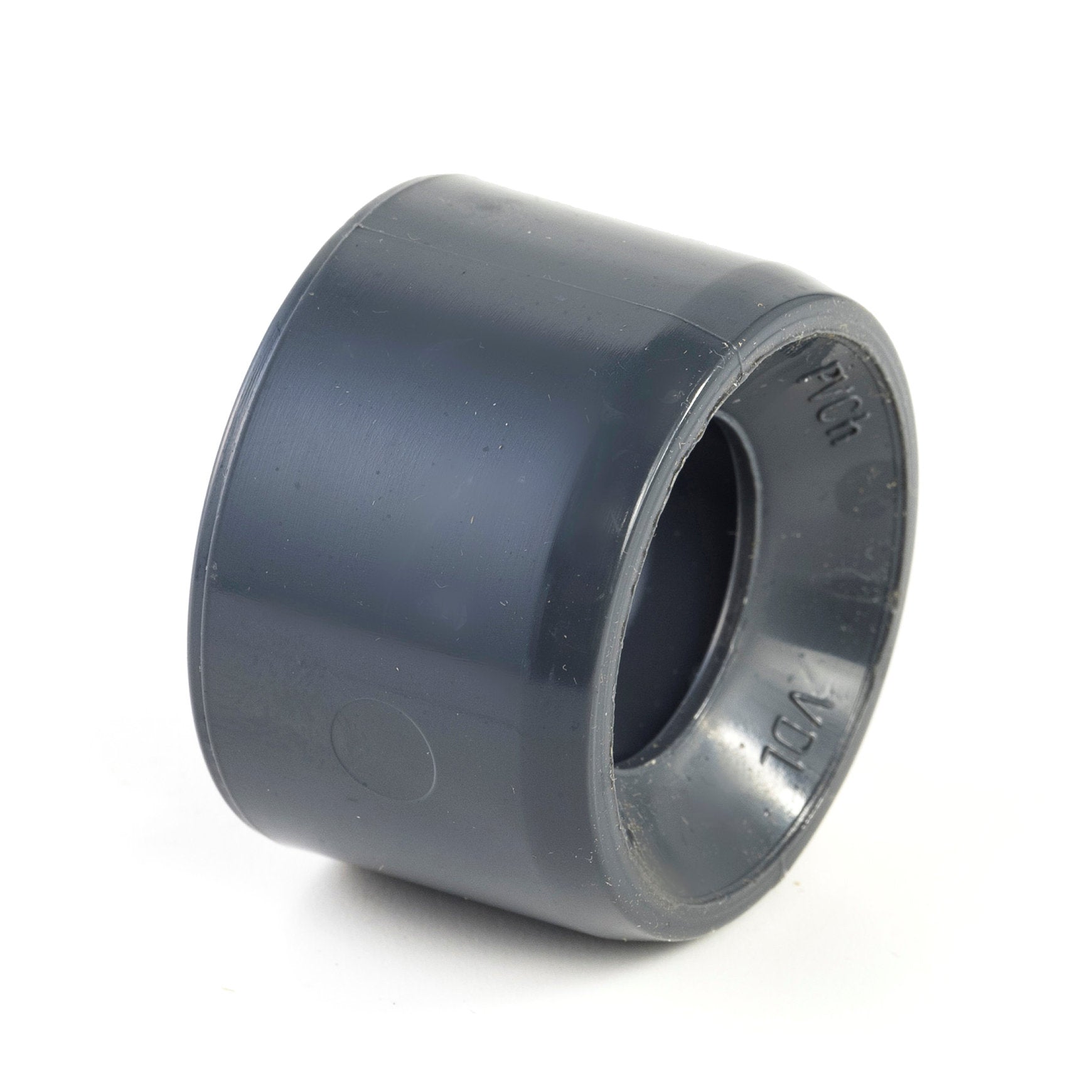

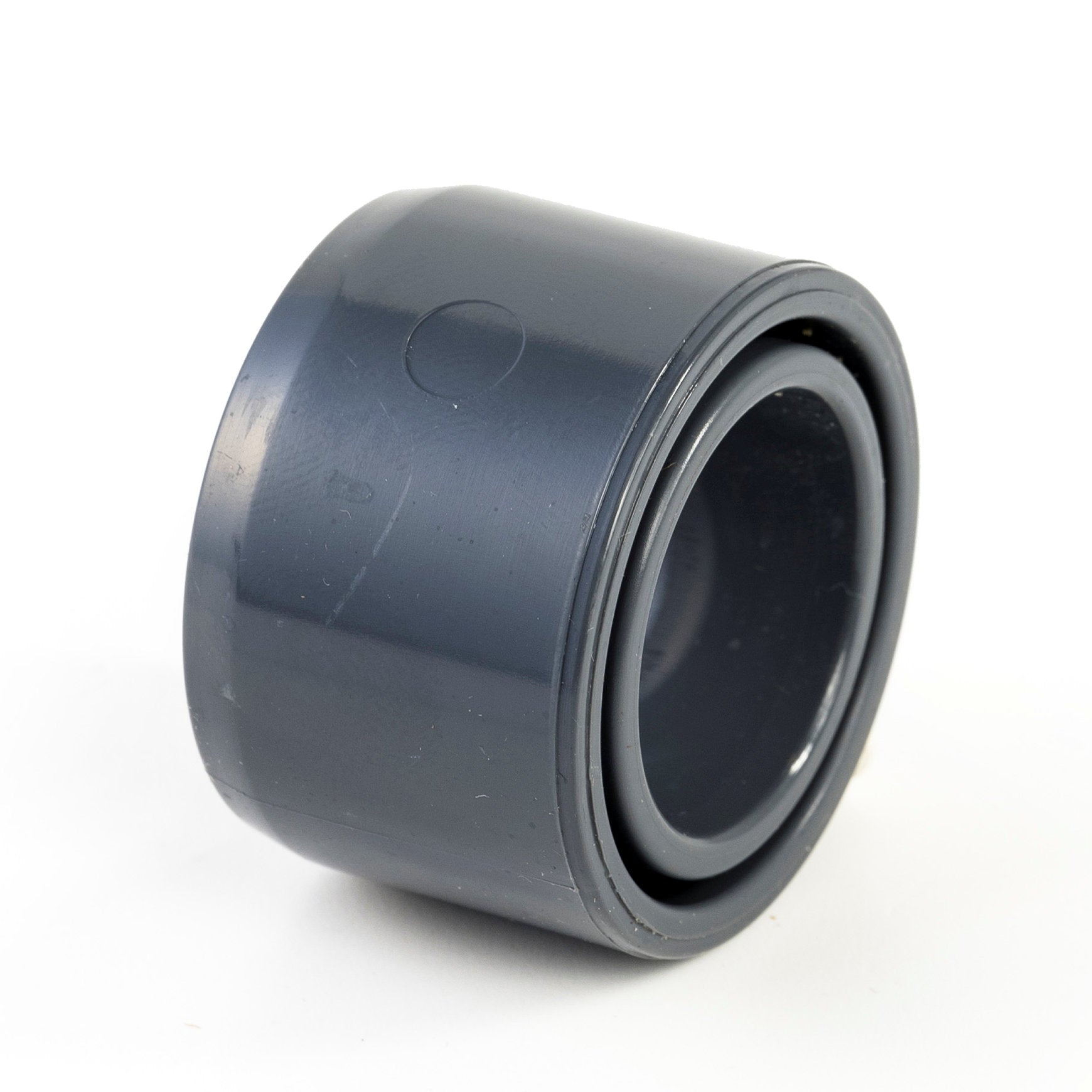

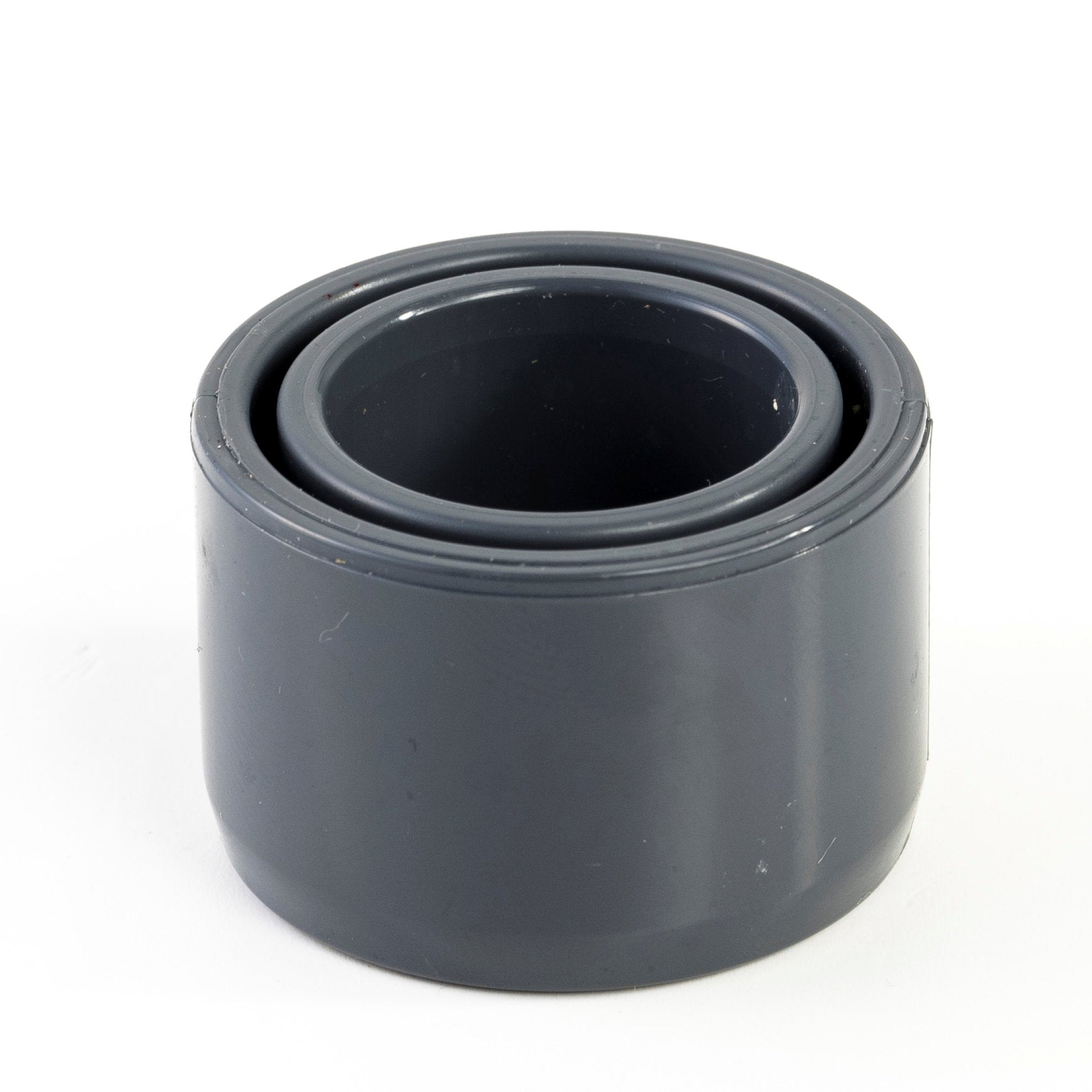

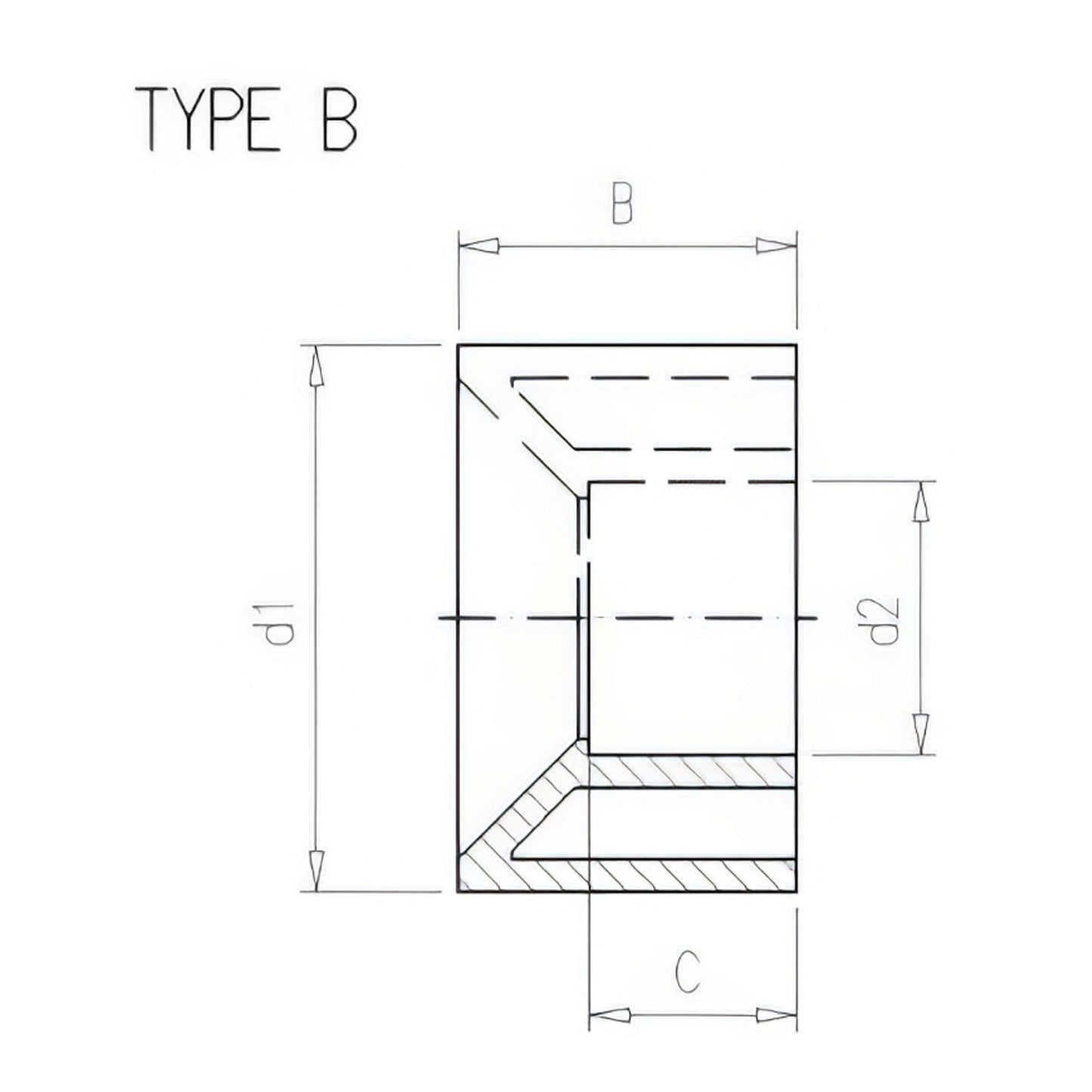

VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 63 x 32 mm
VDL reducing ring, type B, PVC-U, glue spigot x glue socket, 16 bar, 63 x 32 mm
SKU:715975
Regular price
Cg. 8.18
Regular price
Sale price
Cg. 8.18
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
32 mm, 63 mm
Connection type
internal x external glue
Diameter
32 mm, 63 mm
Eancode
8717284030471
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
16 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL verloopring, pvc-u, uitw x inw lijm, 16 bar, 63 x 32 mm
Two badescription en
VDL reducing ring, ext. x int. glue, B, 63 x 32 mm
Description
For a smaller connection, a PVC reducing ring can be glued to a PVC pipe. The maximum working pressure of this reducing ring is 16 bar. The diameter is 63 mm, glue spigot, and 32 mm glue socket.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
