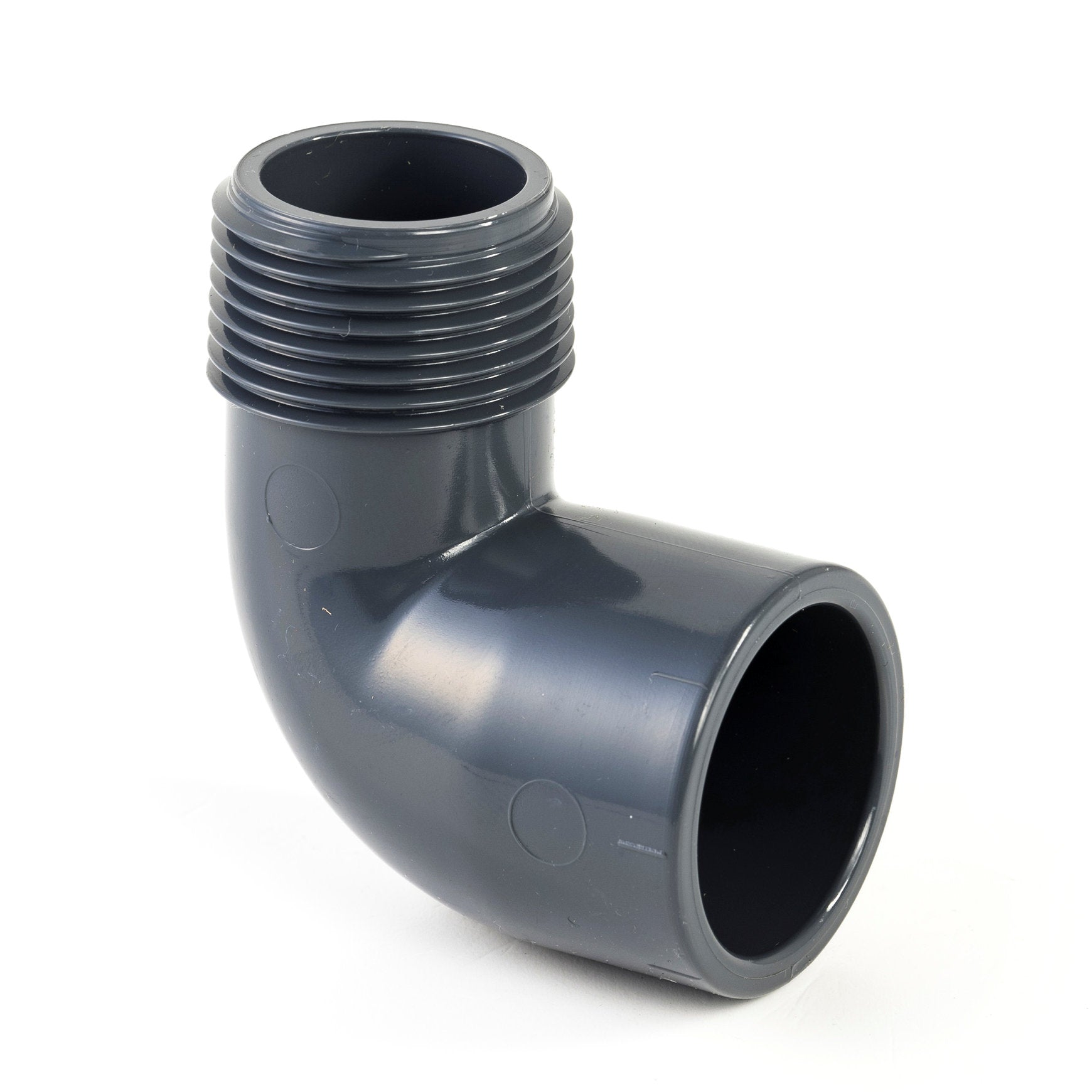

VDL elbow 90°, PVC-U, glue socket x male thread, 10 bar, 40 mm x 1¼"
VDL elbow 90°, PVC-U, glue socket x male thread, 10 bar, 40 mm x 1¼"
SKU:716066
Regular price
Cg. 7.37
Regular price
Sale price
Cg. 7.37
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Angle
90 °
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
1¼", 40 mm
Connection type
male thread x internal glue
Diameter
1¼", 40 mm
Eancode
8717284041804
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL draadknie 90°, pvc-u, inw lijm x budr, 10bar, 40mm x1¼"
Two badescription en
VDL thr. elbow 90°, int. glue x m.thr., 40 mm x 1¼"
Description
This threaded elbow allows you to a install a water pipe system at a 90-degree angle. The use of Teflon tape or sealing cord is recommended to ensure the threaded connection is watertight.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
Bonding
PVC adhesives and cleaners can be used to create a strong and waterproof bond.
