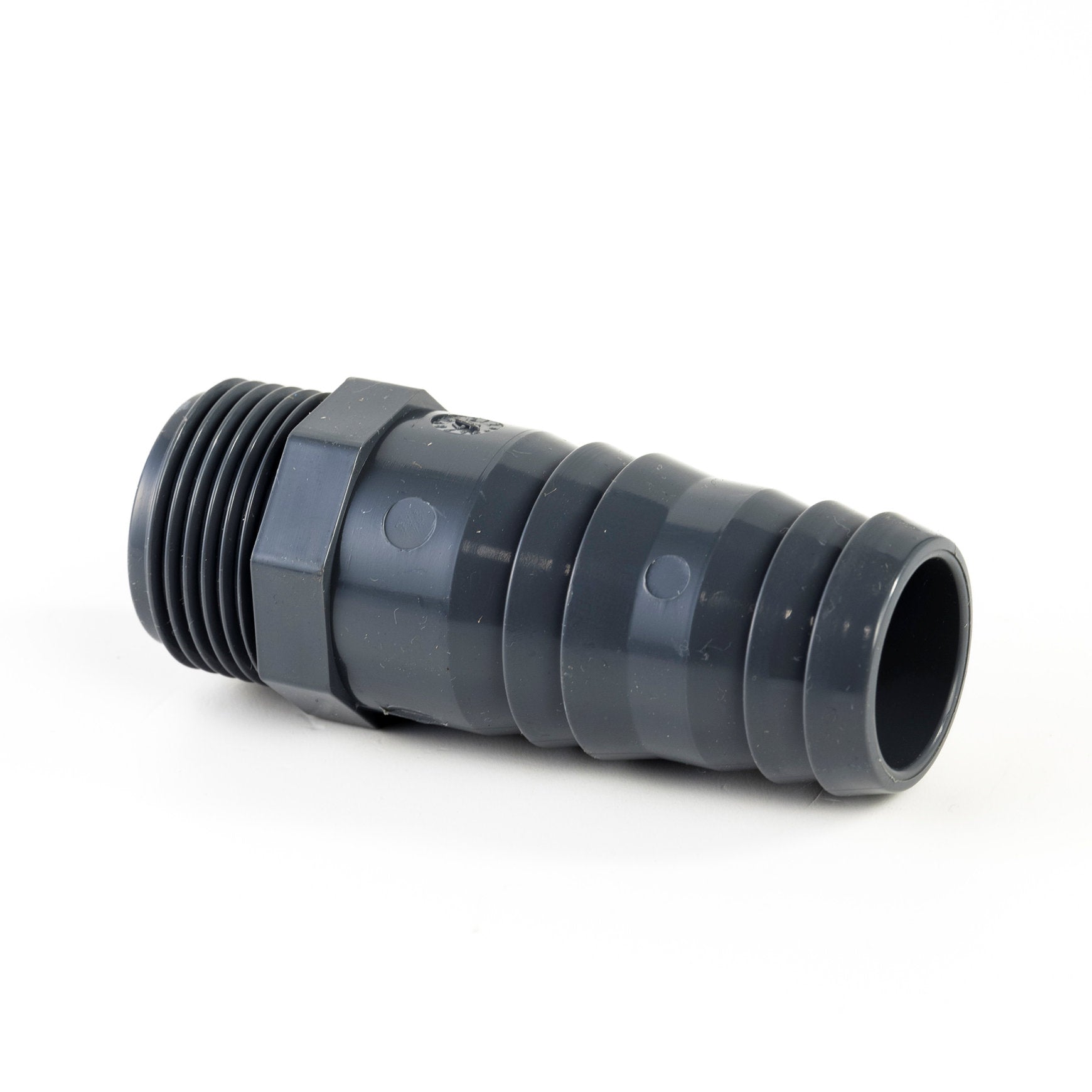

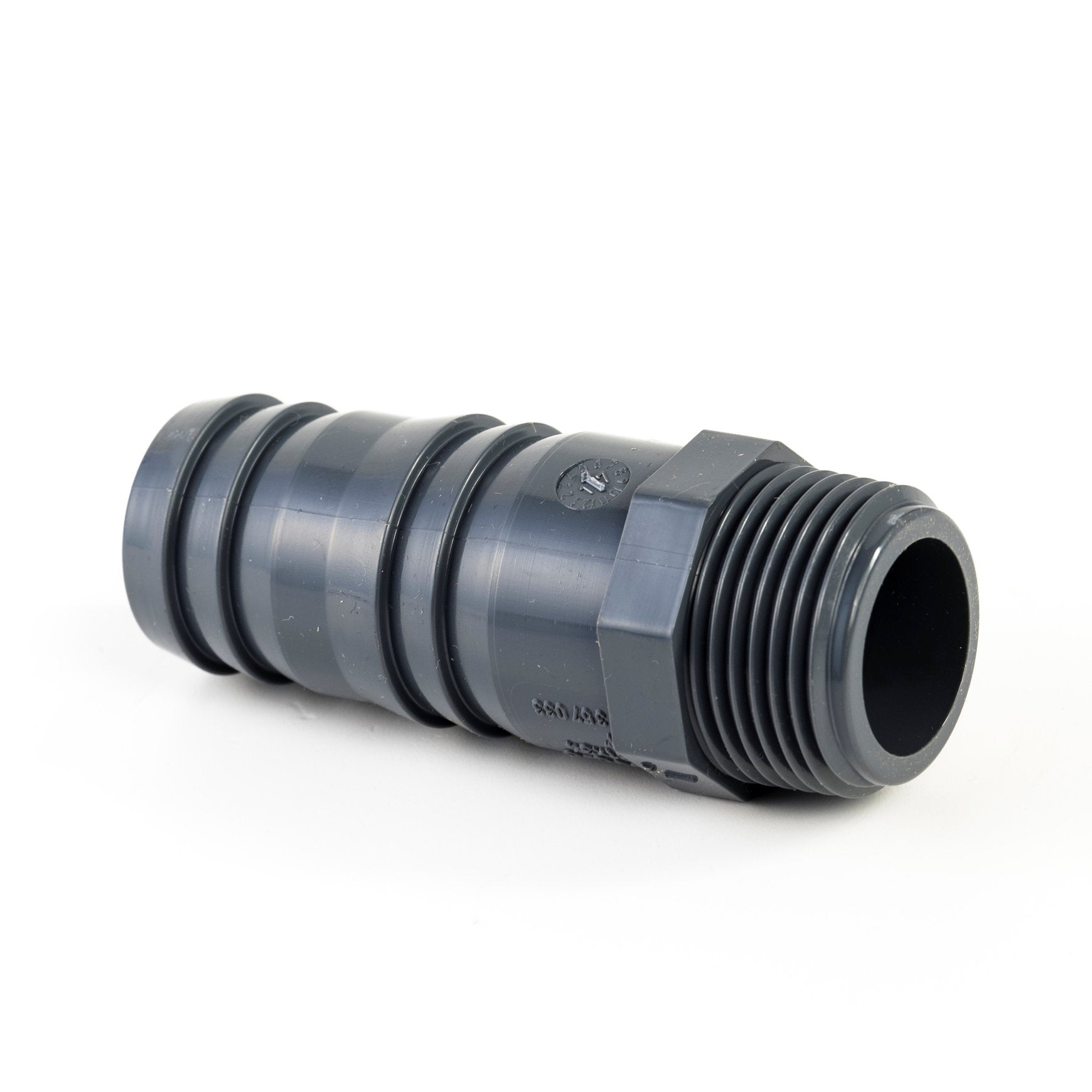

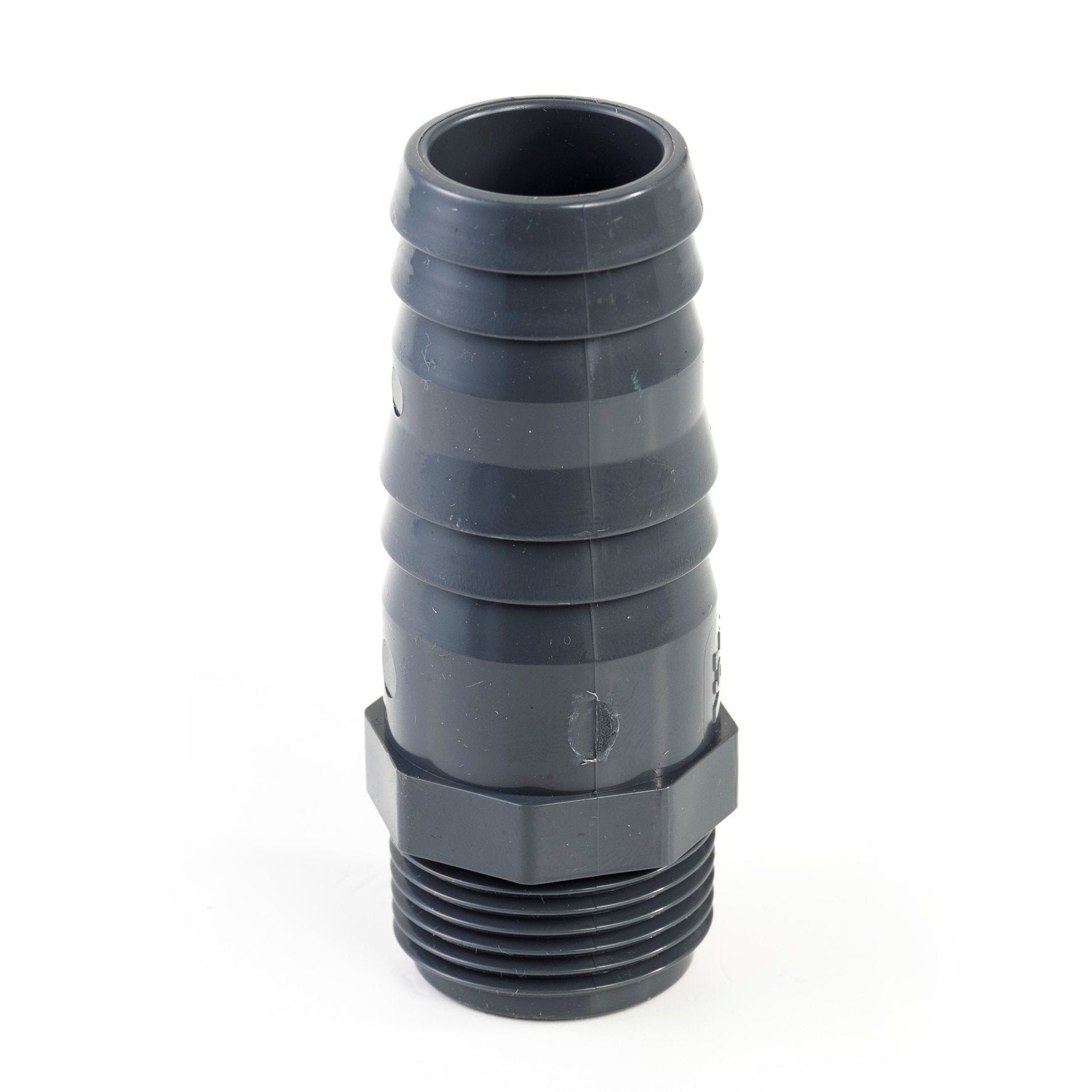

VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ½” x 22 x 20 mm
VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ½” x 22 x 20 mm
SKU:713276
Regular price
Cg. 5.83
Regular price
Sale price
Cg. 5.83
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
20 mm, 22 mm, ½"
Connection type
male thread x hose nipple
Diameter
20 mm, 22 mm, ½"
Eancode
8717284011968
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL slangtule, 2, pvc-u, bu.dr., 10 bar, ½" x 22 x 20 mm
Two badescription en
VDL thr. hose barb, 1x m.thr., ½" x 22 x 20 mm
Description
This threaded hose barb can be screwed into a female thread fitting. The use of Teflon tape or sealing cord is recommended to ensure a watertight connection.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
