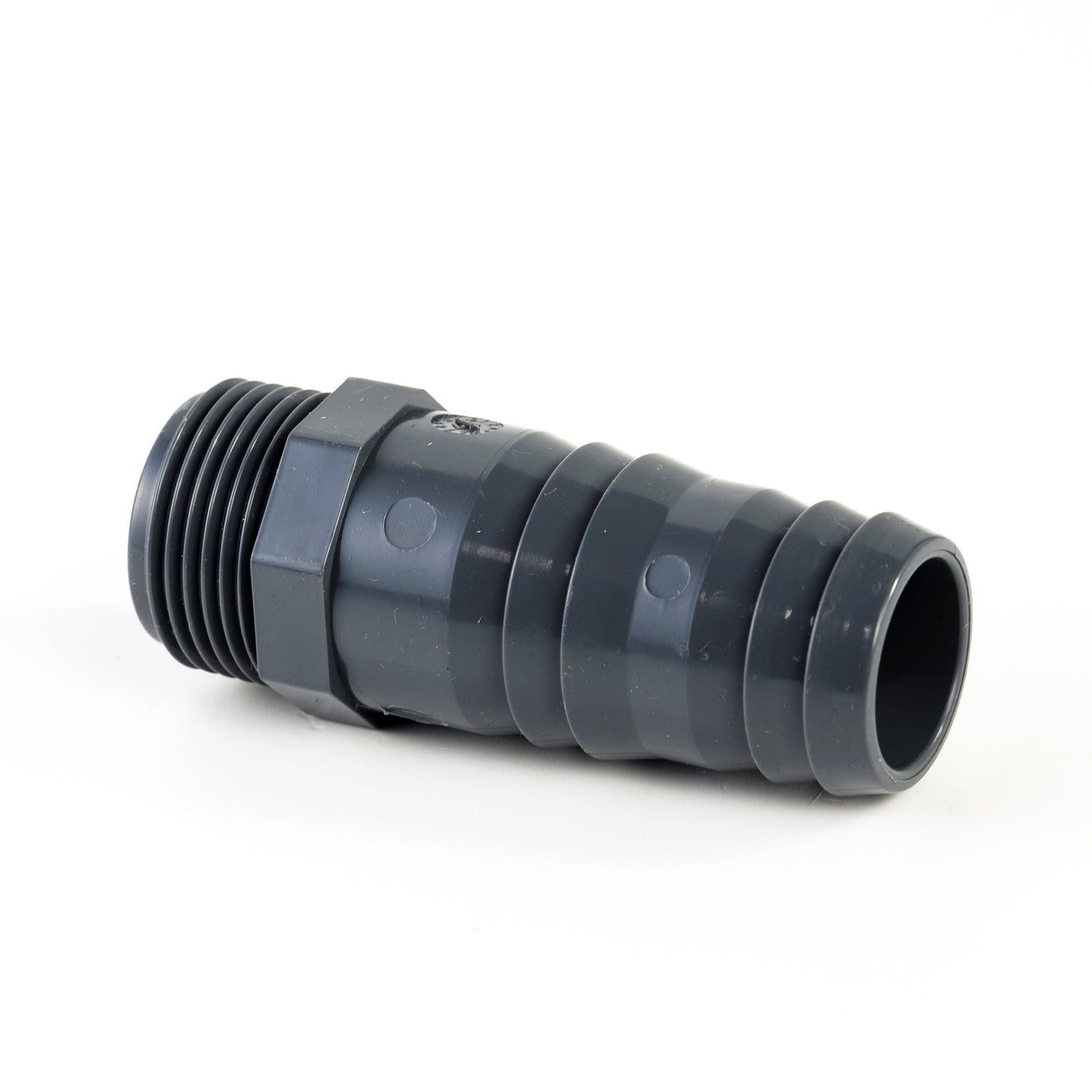

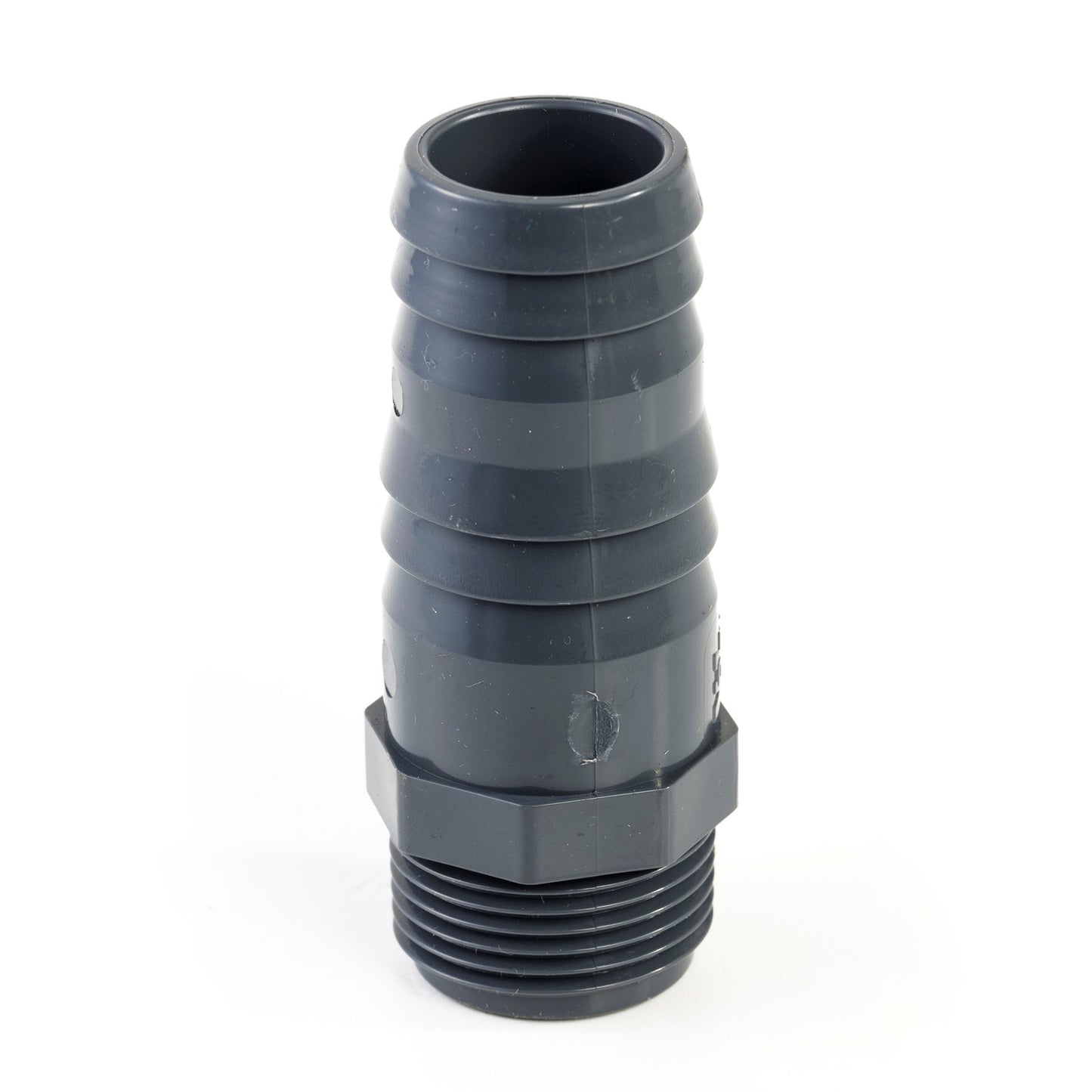

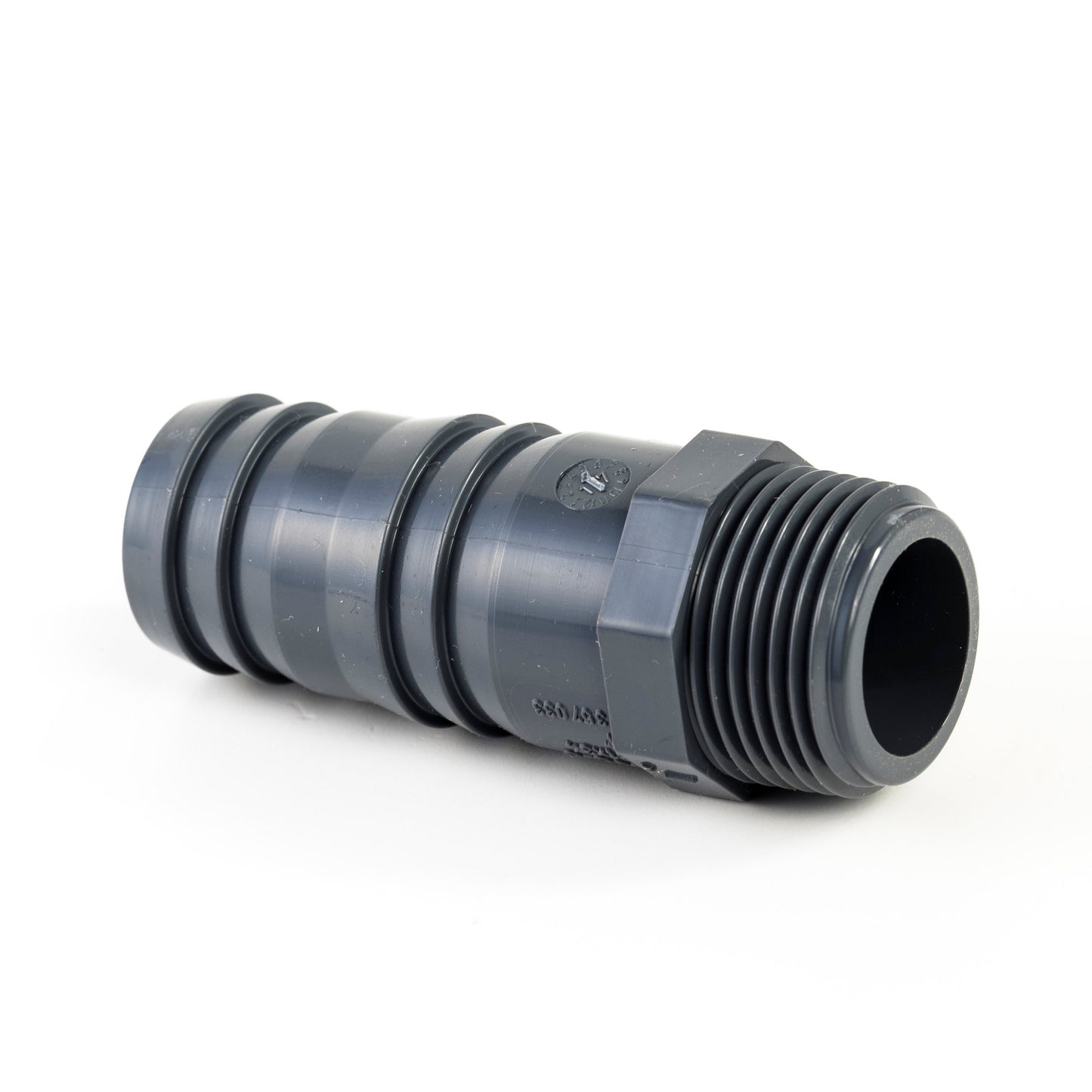

VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ¾" x 28 x 25 mm
VDL hose barb, type 2, PVC-U, male thread x hose barb, 10 bar, ¾" x 28 x 25 mm
SKU:713279
Regular price
Cg. 7.05
Regular price
Sale price
Cg. 7.05
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Connection size
25 mm, 28 mm, ¾"
Connection type
male thread x hose nipple
Diameter
25 mm, 28 mm, ¾"
Eancode
8717284012019
Material
pvc-u (polyvinyl chloride unplasticised)
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Description
This threaded hose barb can be screwed into a female thread fitting. The use of Teflon tape or sealing cord is recommended to ensure a watertight connection.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
