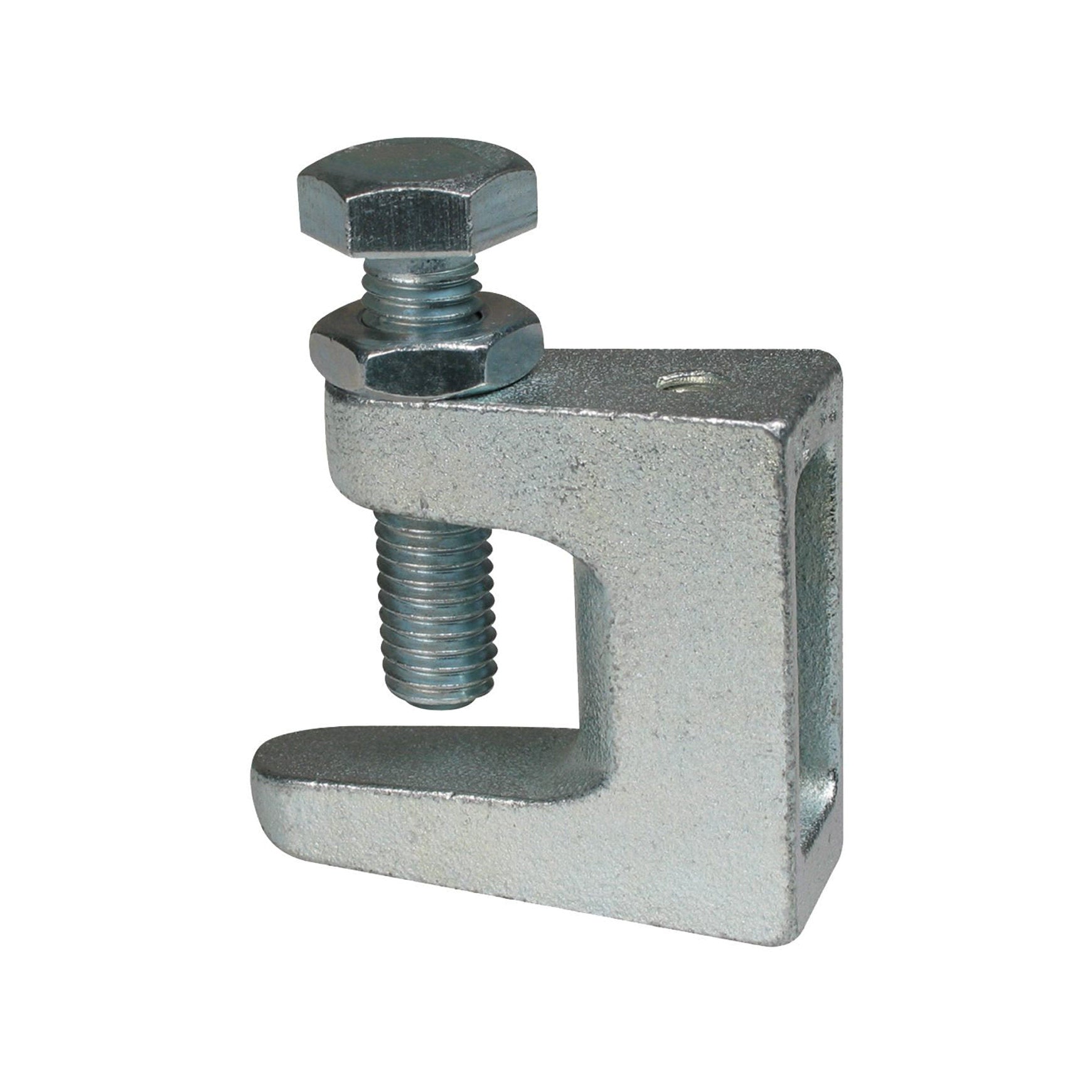

Walraven BIS beam clamp, model C, steel, vds, M10 x 20 mm
Walraven BIS beam clamp, model C, steel, vds, M10 x 20 mm
SKU:262082
Regular price
Cg. 16.15
Regular price
Sale price
Cg. 16.15
Unit price
per
In stock
Couldn't load pickup availability
Specifications
Adjusting bolt
M10
Assortments
wca3010090
Carrying capacity
250 kg
Complementary products v2
ProductListDrop
Connection size
M10
Diameter
M10
Eancode
8712993006960
Flange thickness max
20 mm
Flange thickness max.
20 mm
Material
cast iron, electrolytically galvanized
Description
This beam clamp is suitable for attachment to a flange. The beam clamp ensures secure attachment to steel structures without drilling or welding.
In accordance with VdS regulations, beam clamps attaching sprinkler pipes larger than DN65 must be secured with a safety strip to prevent slipping off sideways.
De adjusting bolt has a hexagonal head in accordance with DIN 933, strength class 8.8, screw tip with root diameter in accordance with EN ISO 4753 and locknut.
Bolt, hardened steel.
Nut, electrolytically galvanized steel.
In accordance with VdS regulations, beam clamps attaching sprinkler pipes larger than DN65 must be secured with a safety strip to prevent slipping off sideways.
De adjusting bolt has a hexagonal head in accordance with DIN 933, strength class 8.8, screw tip with root diameter in accordance with EN ISO 4753 and locknut.
Material
Beam clamp, cast iron.Bolt, hardened steel.
Nut, electrolytically galvanized steel.
Do you want to buy a beam clamp or need more information?
The desired beam clamp can be ordered easily and quickly via our website or purchased at one of our branches. Are you not yet sure which clamp would be best for your situation? Contact one of our specialists for advice without obligation.
