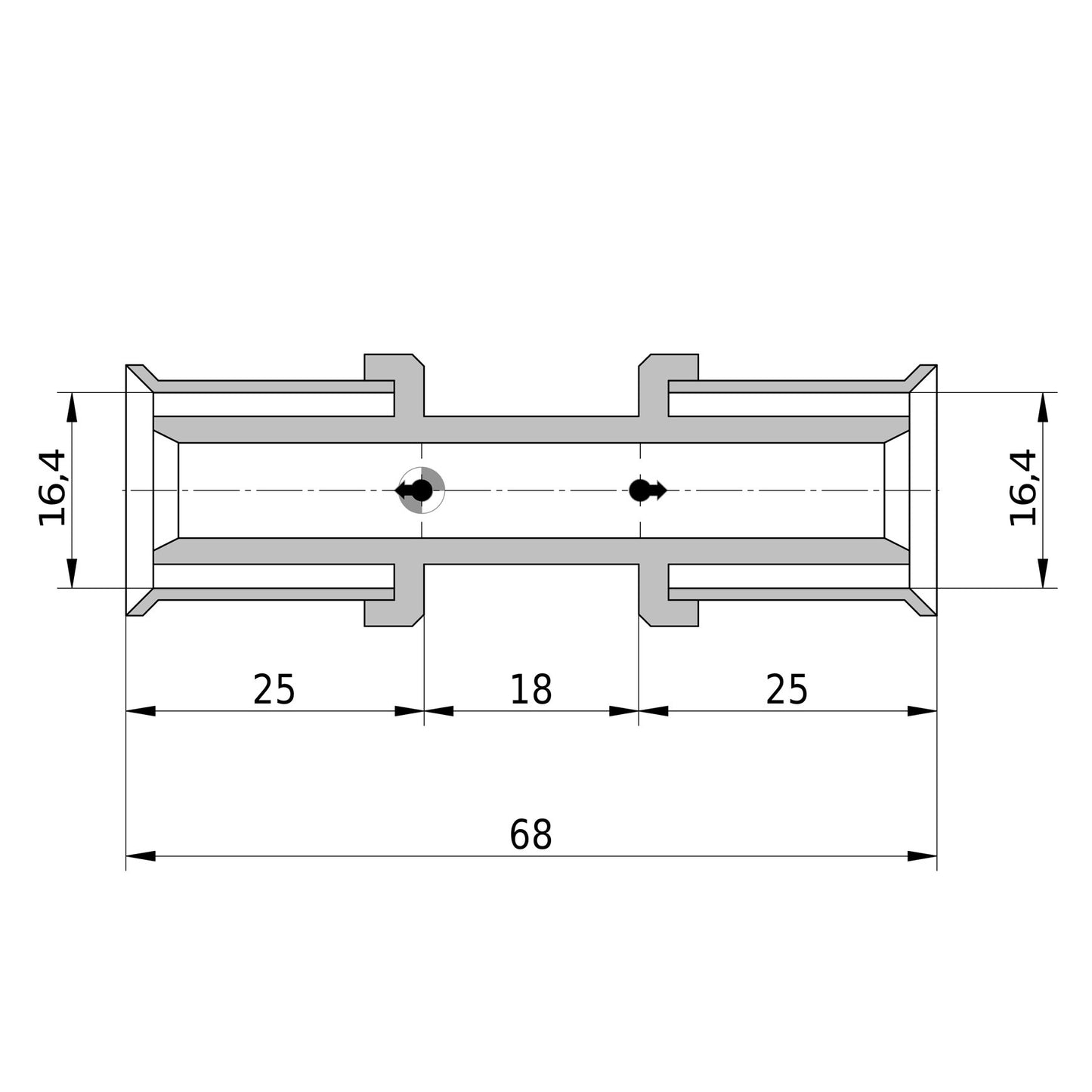

  • detailimage_001
1 2

Wavin Tigris coupling, PPSU, stainless steel, 2x press, type K5, EPDM, 16 mm

Wavin Tigris coupling, PPSU, stainless steel, 2x press, type K5, EPDM, 16 mm

SKU:15570140

Cg. 11.94
Cg. 11.94
Sale Sold out
tax included
Delivery on request

Request Delivery Time Indication

 View full details

Specifications

Complementary products v2
ProductListDrop
Connection size
16 mm
Connection type
press
Diameter
16 mm
Eancode
4026294918261
Material
ppsu (polyphenylsulfon), stainless steel
Maximum temperature
70 °C
Maximum working pressure
10 bar
Minimum temperature
0.0 °C
Peak load temperature
100 °C
Scope of application
cooling, heating, tapwater, underfloor heating
Type
K5

Description

This Wavin Tigris coupling, type K5, is used in piping systems for drinking water, heating, underfloor heating, and cooling. This coupling allows you to connect two Wavin Tigris pipes together.

In addition to this multi-layer pipe, the Wavin Tigris range includes various other couplings, such as:
  • Multi layer pipes.
  • Wall plates.
  • Mounting bracket.
  • Tools.

Properties

This Tigris K5 coupling is resistant to corrosion, high temperatures, and offers high impact resistance, preventing stress fractures.

The coupling is equipped with several features, including:
  • Multi jaw: Multiple crimp jaw profiles can be used.
  • Opti flow: The larger inner diameter ensures optimized flow.
  • Easy fit: Due to the modified internal structure, there is no risk of damage to the O-ring when inserting the multilayer pipe.
  • In4sure: A quick check where you can see if the pipe is inserted far enough into the fitting.
  • Pipe grip: The pipe stays in place within the coupling when correctly inserted, until it is pressed.

Material

Housing: PPSU (polyphenylsulfone).
Press sleeve: stainless steel.

Assembly

The Wavin Tigris coupling can be crimped using Wavin tools. The coupling is equipped with leak detection called: Defined Leak and Acoustic Leak Alert.

The assembly of the coupling goes in a few steps:
  • Cut the pipe to size with a pipe cutter and deburr the ends to prevent a noisy pipe.
  • Insert the pipe into the K5 coupling and check if the pipe is visible in the transparent ring.
  • Press the fitting.
After installing the Wavin Tigris system, a pressure test should be conducted. The Defined Leak control is applied during a pressure test with water. If a coupling is incorrectly pressed, water will flow from the coupling. The K5 and M5 coupling types are also equipped with the Acoustic Leak Alert. This control is applied during a pressure test with air. If a fitting is not properly pressed, a whistling sound will be heard.
