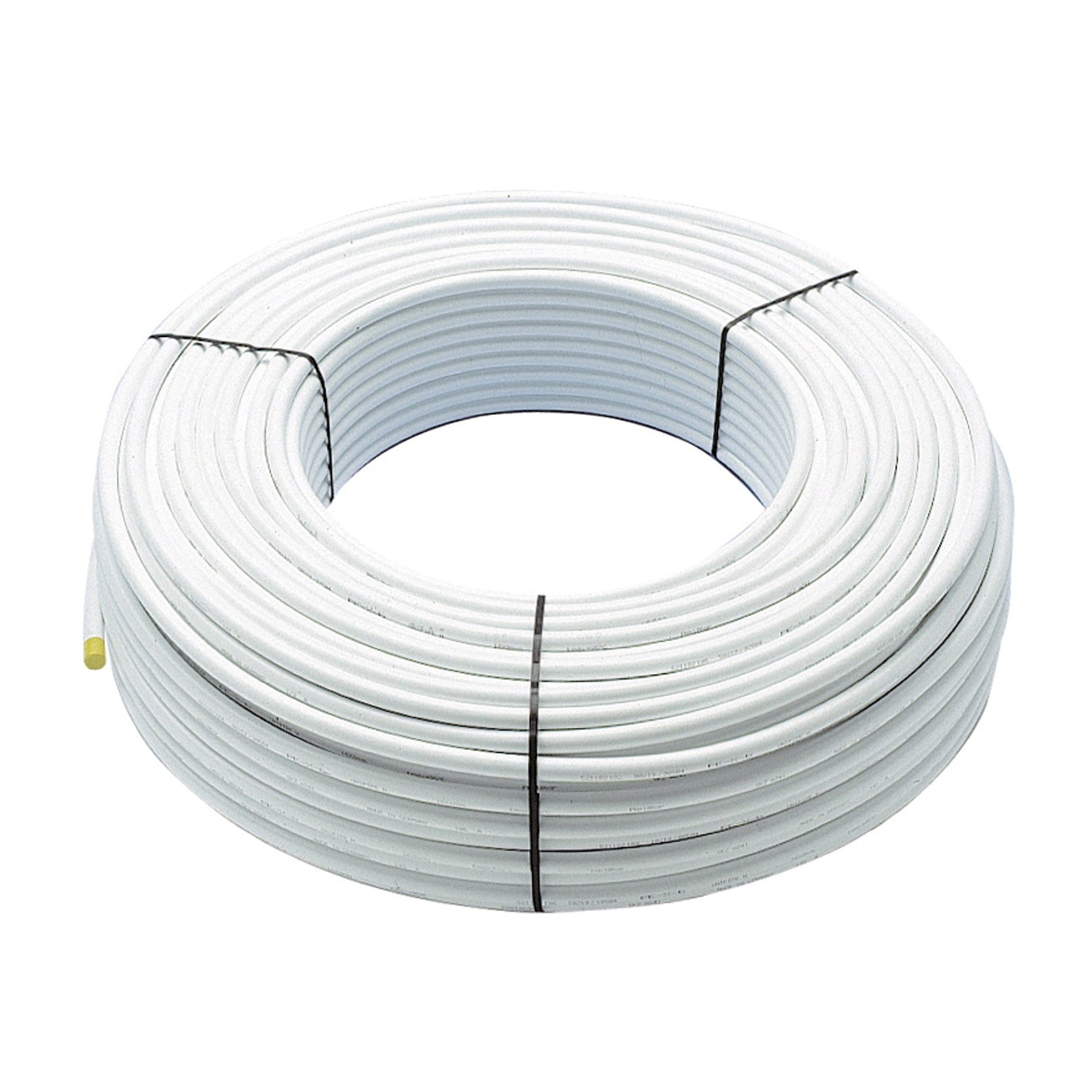

Wavin Tigris multilayer pipe, white, 16 x 2 mm, l = 50 m, per roll

Wavin Tigris multilayer pipe, white, 16 x 2 mm, l = 50 m, per roll

SKU:15570133

Cg. 468.50
Cg. 468.50
Sale Sold out
tax included
Delivery on request
View full details

Specifications

Connection size
16 mm
Diameter
16 mm
Eancode
5900360912003
Length
50 m
Material
PE-Xb/AL/PE-Xb
Maximum temperature
70 °C
Maximum working pressure
10 bar
Minimum temperature
0.0 °C
Scope of application
cooling, heating, tapwater, underfloor heating

Description

This Wavin Tigris multilayer pipe is used in piping systems for drinking water, heating, underfloor heating, and cooling. It can be used in both new construction and renovation projects.

In addition to this multi-layer pipe, the Wavin Tigris range includes various other couplings, such as:
  • Couplings.
  • Wall plates.
  • Mounting bracket.
  • Tools.

Properties

The Wavin Tigris multilayer pipe is a versatile pipe that, due to its high pressure and temperature resistance, is suitable for multiple applications. Due to its multilayer structure, the pipe is corrosion-resistant and oxygen-tight, ensuring a longer lifespan. Mounting the multilayer pipe in small spaces is no problem; the Tigris pipe is flexible, shape-retaining, and can be easily bent by hand, maintaining its shape afterward. Moreover, the larger inner diameter ensures optimized flow.

Do you want to embed the multilayer pipe? Then take the applicable requirements and guidelines into account.

Material

The Wavin Tigris multilayer pipe is made up of 5 layers:
  • Inner layer: PE-Xc.
  • Middle layer: aluminum.
  • Outer layer: PE-HD.
Two adhesive layers have been applied to bond the different layers together.

Assembly

The pressing can be done using the Wavin Tigris tools. The multilayer pipe can be easily bent by hand, but using a bending spring or bending tool allows for a clean curve to be made.

The assembly of the pipe goes in a few steps:
  • Cut the pipe to size and deburr the ends to prevent any damage to the pipe.
  • Slide the pipe into the coupling until it is visible in the transparent ring or opening.
  • Press the coupling with the pressing tool.
After installation, a pressure test should be performed. Wavin Tigris is equipped with two different crimping controls: Defined Leak and Acoustic Leak Alert. The Defined Leak control is applied during a pressure test with water. If a coupling is incorrectly pressed, water will flow from the coupling. The K5 and M5 coupling types are also equipped with the Acoustic Leak Alert. This control is applied during a pressure test with air. If a fitting is not properly pressed, a whistling sound will be heard.
