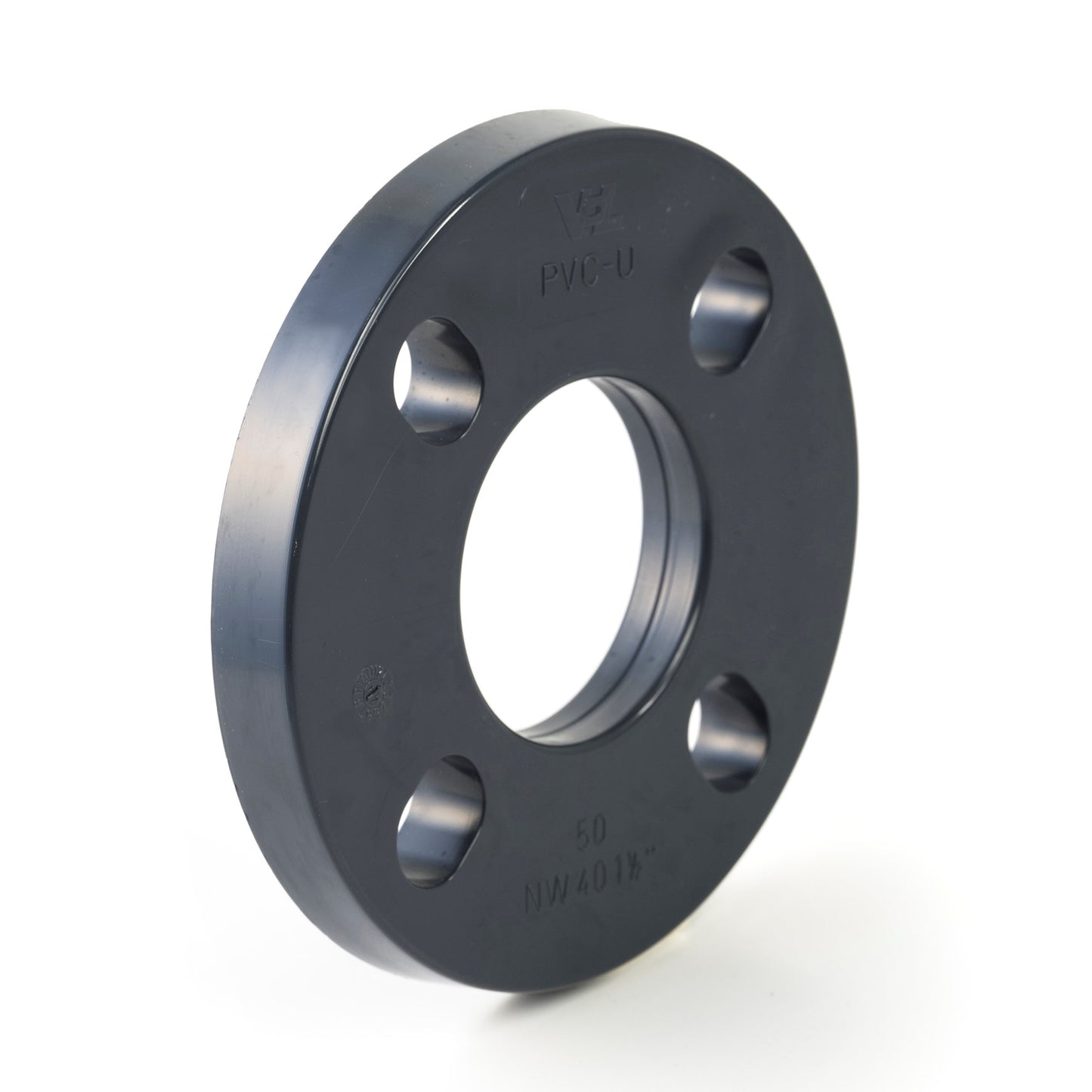

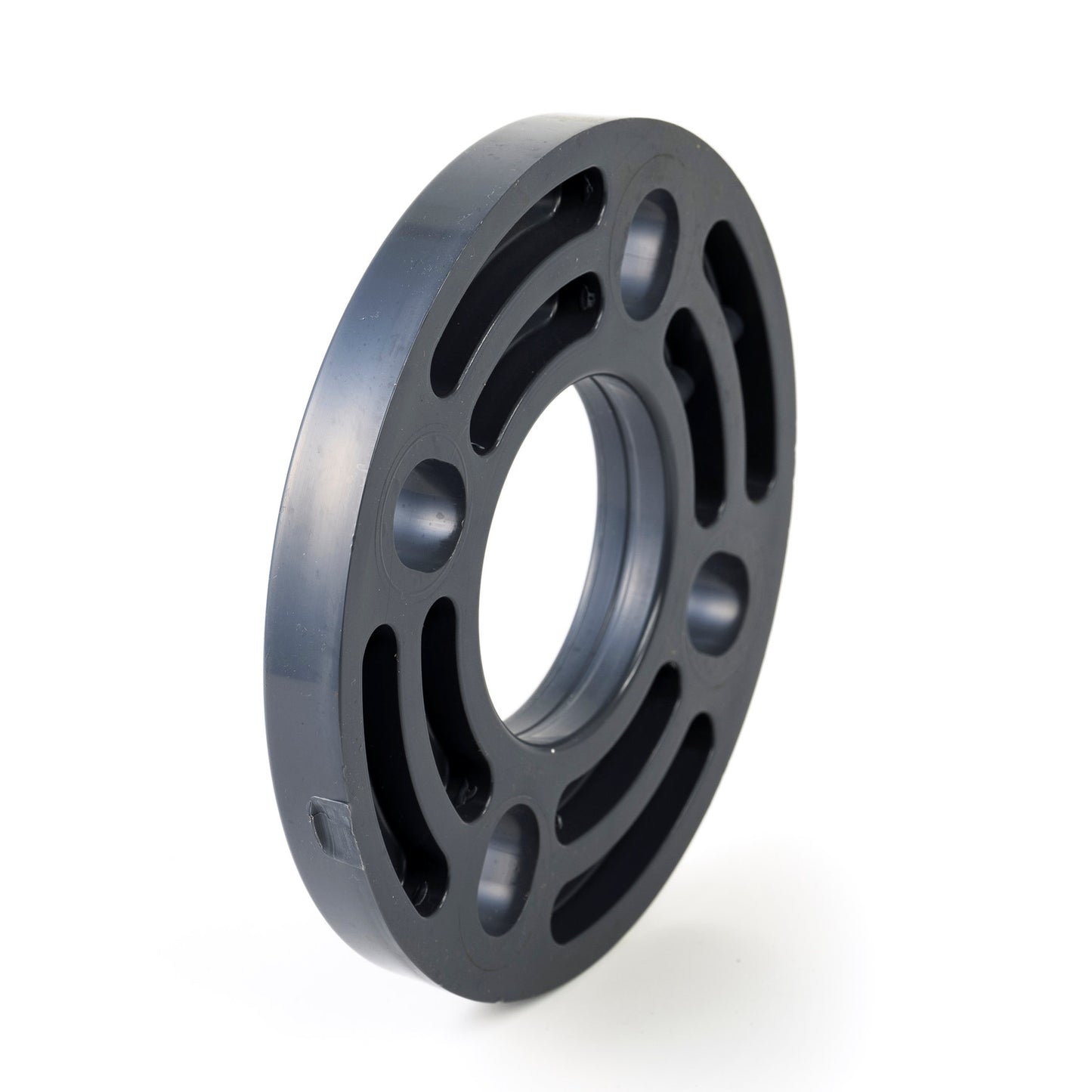

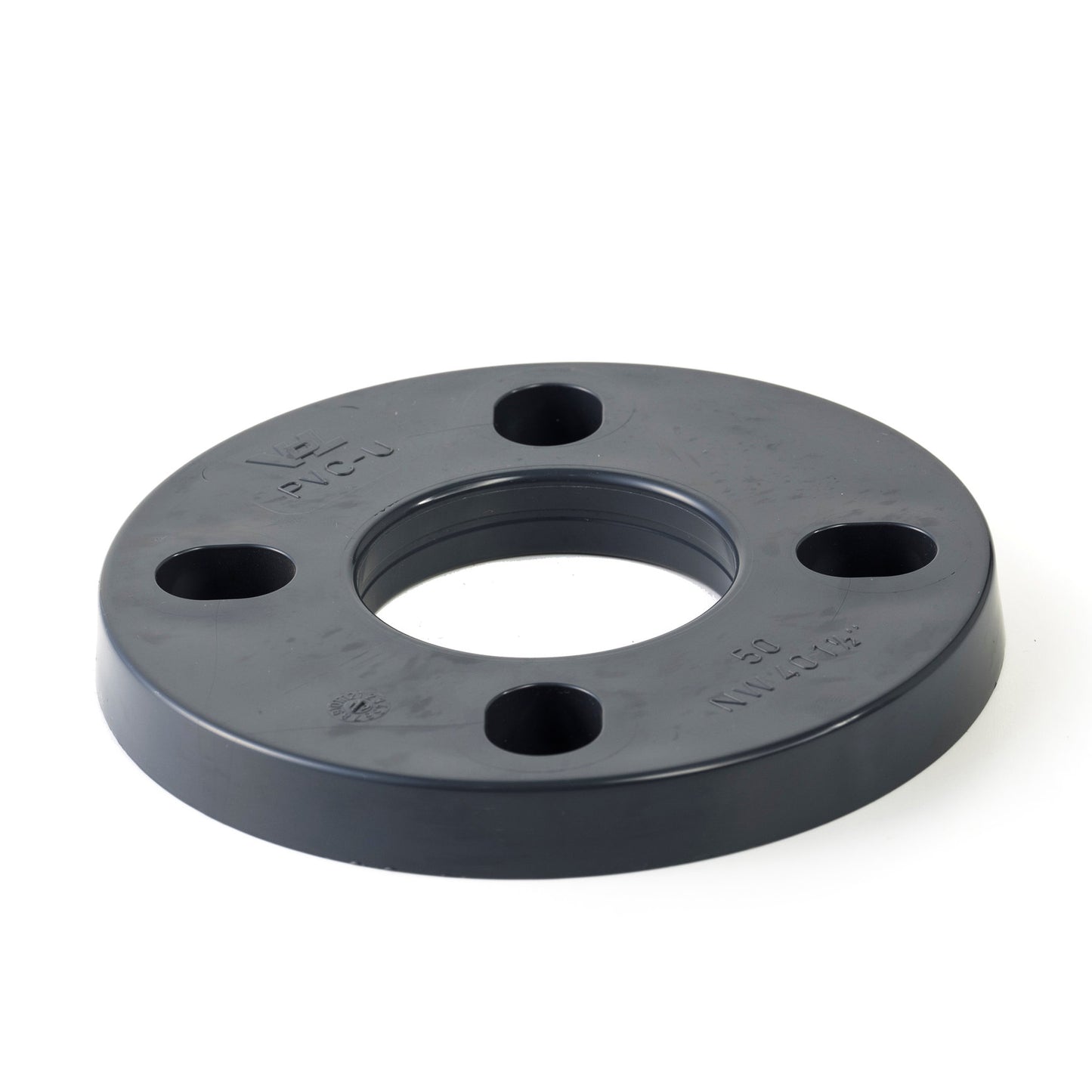

Brida deslizante VDL, PVC, 10 bar, tipo A, 75 mm
Brida deslizante VDL, PVC, 10 bar, tipo A, 75 mm
SKU:716236
Precio habitual
Cg. 35.72
Precio habitual
Precio de oferta
Cg. 35.72
Precio unitario
por
Entrega a pedido
Presupuesto
Assortments
wca2010104
Complementary products v2
ProductListDrop
Connection size
75 milímetros
Diameter
75 milímetros
Drill hole diameter
18 mm
Eancode
8717284022933
Inside size
92 mm
Material
PVC-U (cloruro de polivinilo no plastificado)
Outer size
185 mm
Pitch circle diameter
145 mm
Pressure class
10 barras
Quality mark
NEN-EN-ISO 9001:2015
Two badescription
VDL overschuifflens, type A, pvc-u, 10 bar, 75 mm
Two badescription en
VDL sliding flange, type A, 75 mm
Type
A
Descripción
A PVC slip-on flange, in combination with a PVC collar bushing and sealing ring, creates a strong and removable connection to fittings, accessories or other pipes. The maximum working pressure of this slip-on flange is 10 bar, the diameter is 75 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
