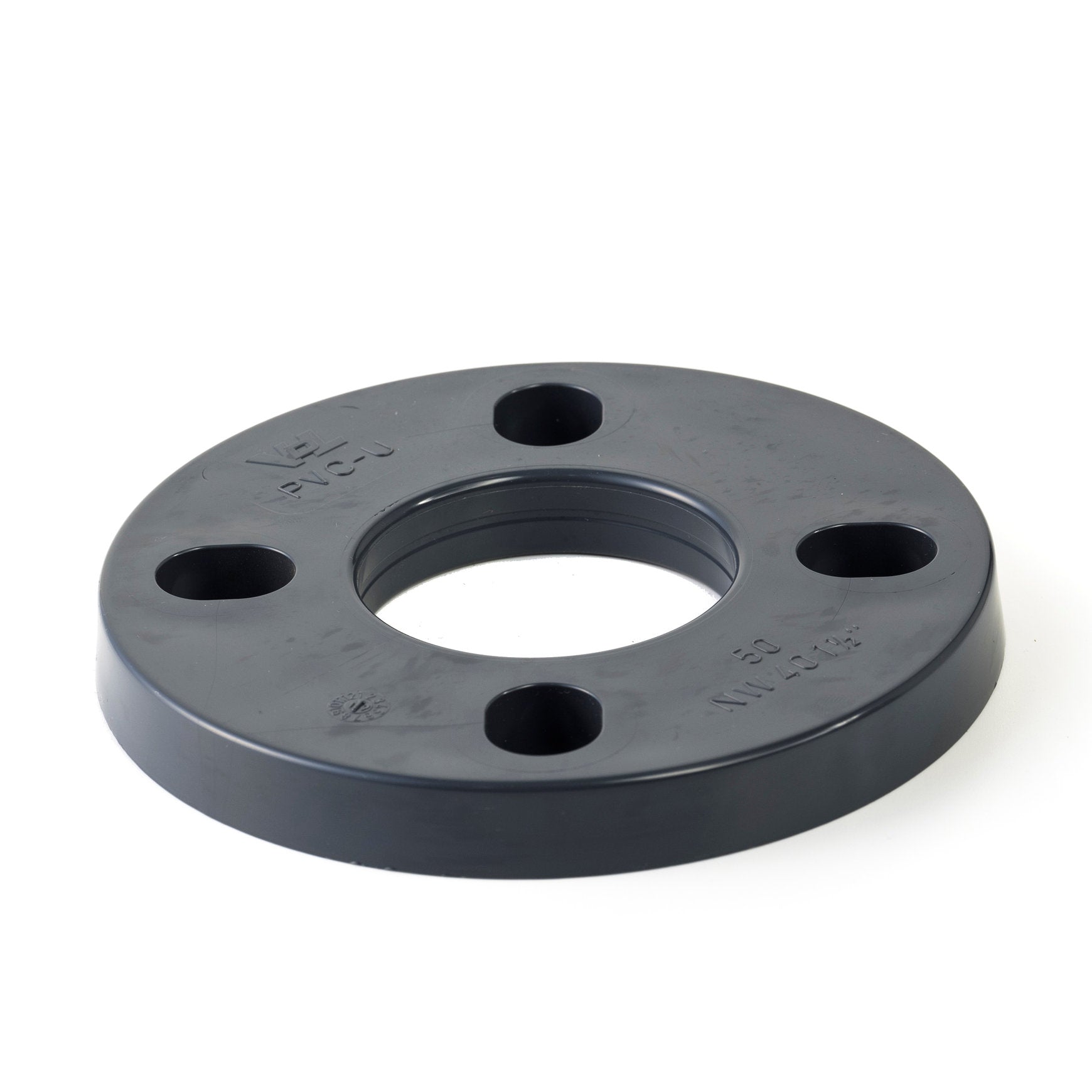

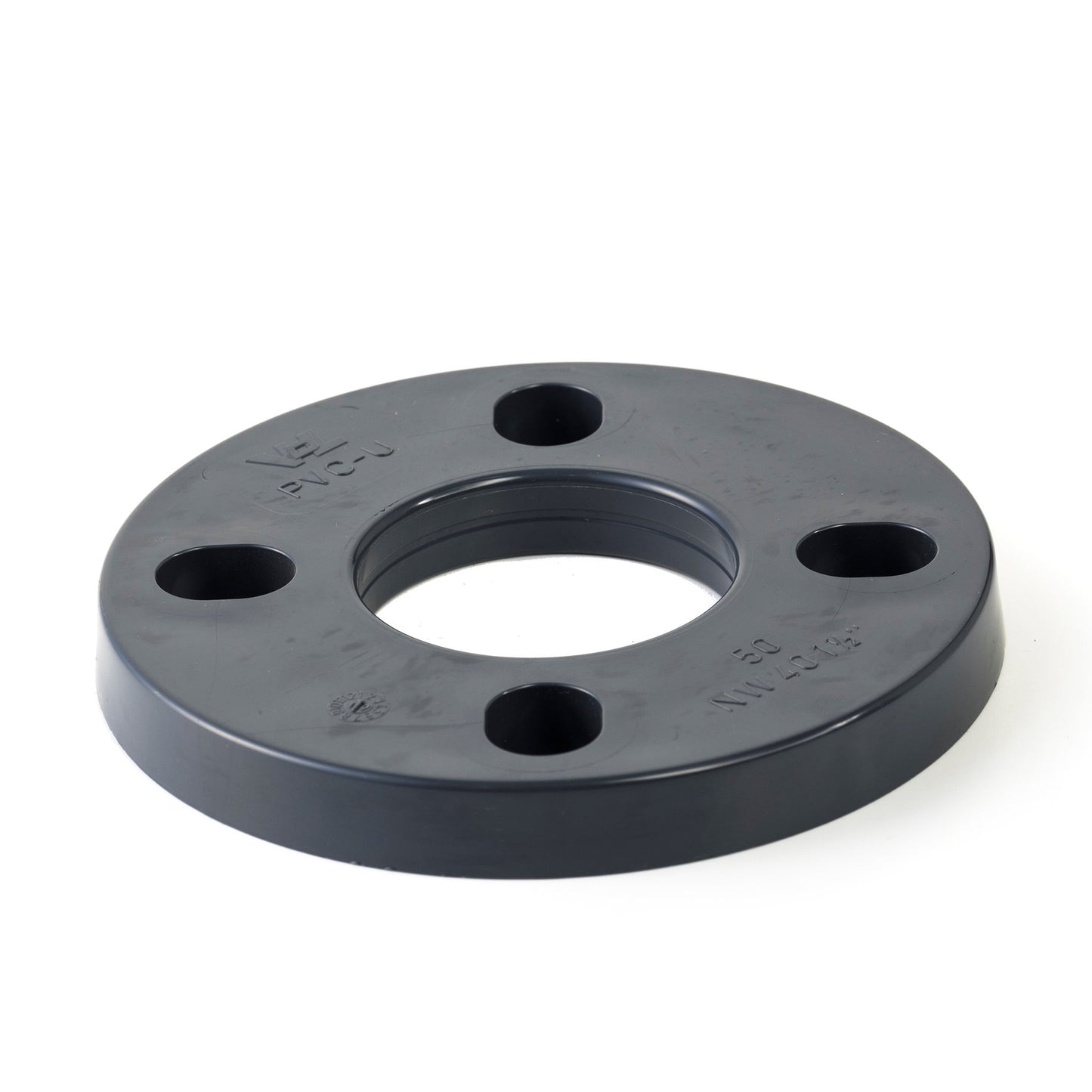

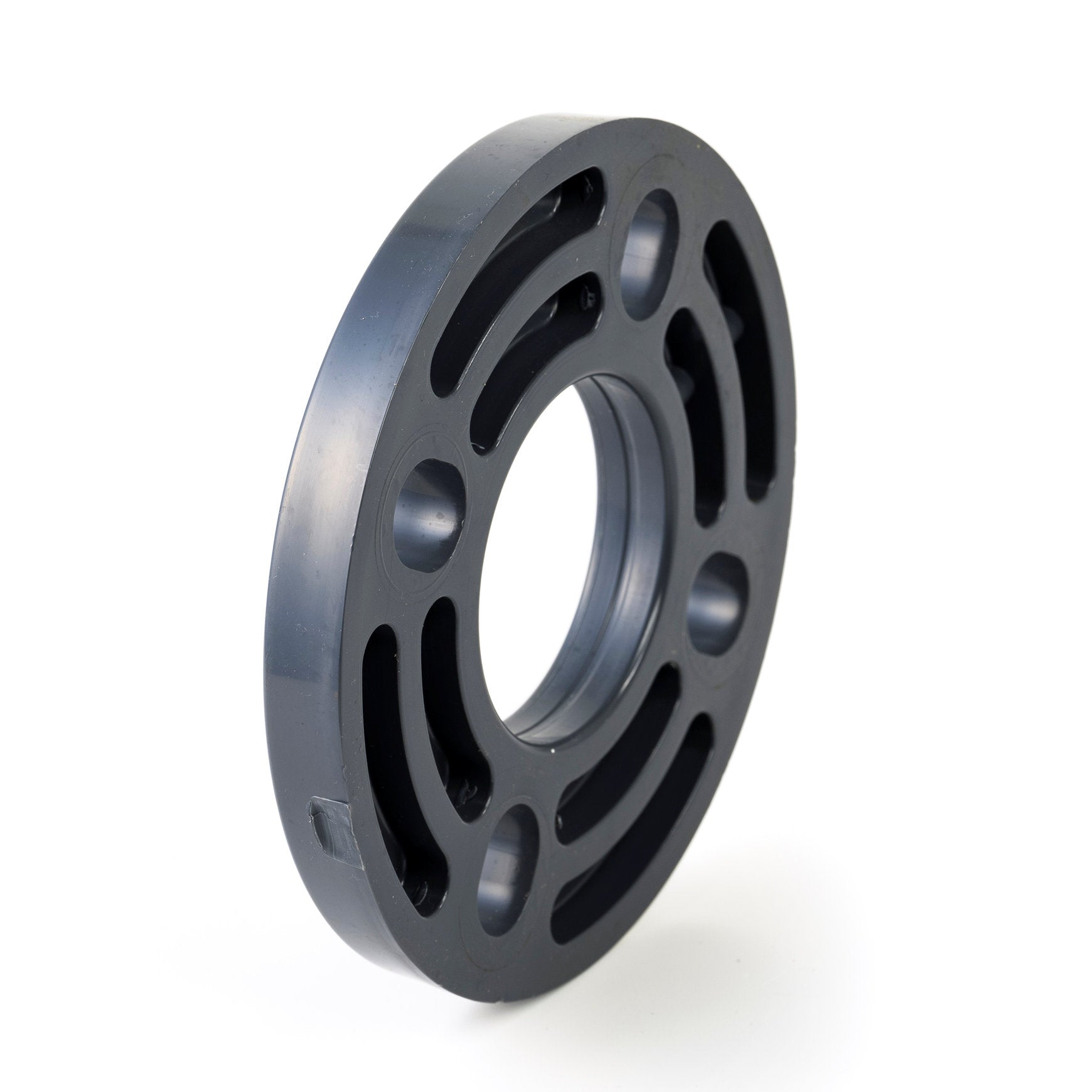

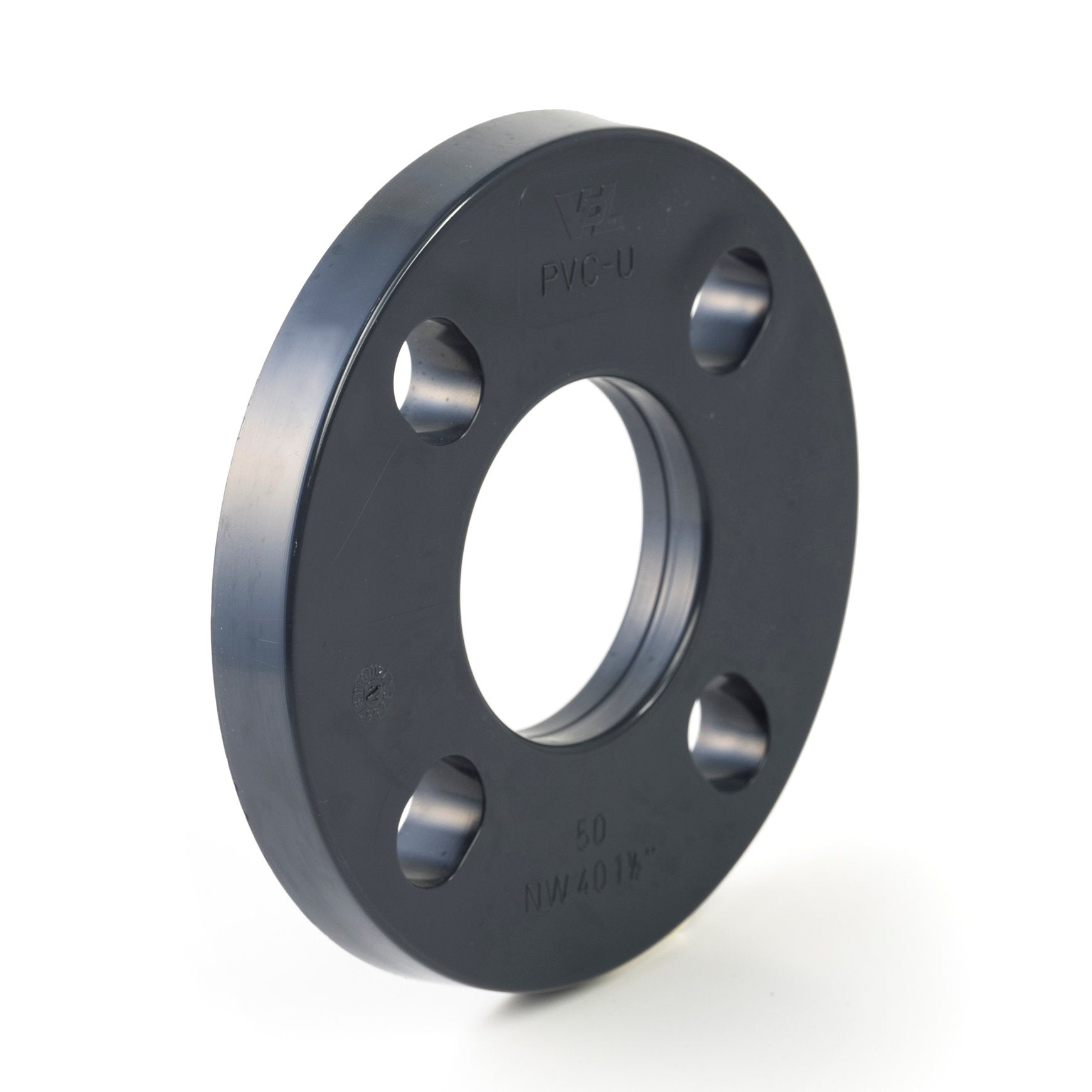

VDL slip-on flange, type A, PVC-U, 10 bar, 75 mm
VDL slip-on flange, type A, PVC-U, 10 bar, 75 mm
SKU:716236
Regular price
Cg. 35.72
Regular price
Sale price
Cg. 35.72
Unit price
per
Delivery on request
Specifications
Connection size
75 mm
Diameter
75 mm
Drill hole diameter
18 mm
Eancode
8717284022933
Inside size
92 mm
Material
pvc-u (polyvinyl chloride unplasticised)
Outer size
185 mm
Pitch circle diameter
145 mm
Pressure class
10 bar
Quality mark
NEN-EN-ISO 9001:2015
Type
A
Description
A PVC slip-on flange, in combination with a PVC collar bushing and sealing ring, creates a strong and removable connection to fittings, accessories or other pipes. The maximum working pressure of this slip-on flange is 10 bar, the diameter is 75 mm.
PVC-U is suitable for operating temperatures from 0°C to 60°C, whereby it is important to note that the maximum working pressure depends on the operating temperature. The specified pressure applies at a temperature of 20°C. PVC-U is strong, dimensionally stable, has good chemical resistance, and is maintenance-free.
