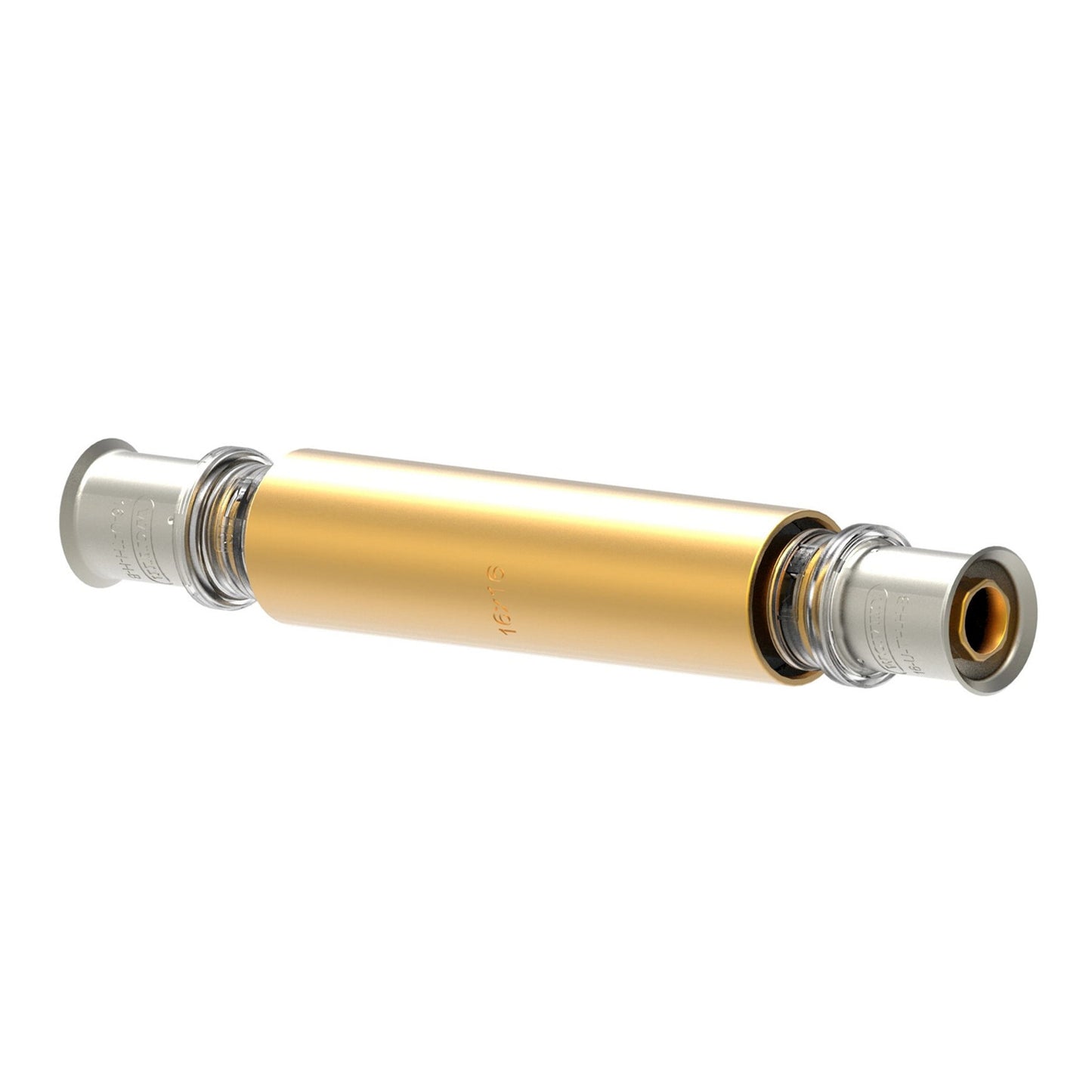

Wavin Tigris repair coupling, brass, stainless steel, 2x press, type M5, EPDM, 16 mm

Wavin Tigris repair coupling, brass, stainless steel, 2x press, type M5, EPDM, 16 mm

SKU:15570202

Regular price Cg. 166.93
Regular price Sale price Cg. 166.93
Sale Sold out
tax included
In stock
View full details

Specifications

Complementary products v2
ProductListDrop
Connection size
16 mm
Connection type
press
Diameter
16 mm
Eancode
4026294899638
Material
brass, stainless steel
Maximum temperature
70 °C
Maximum working pressure
10 bar
Minimum temperature
0.0 °C
Peak load temperature
100 °C
Scope of application
cooling, heating, tapwater, underfloor heating
Type
M5

Description

This Wavin Tigris repair coupling, type M5, is used in piping systems for drinking water, heating, underfloor heating, and cooling. The coupling is placed where a leak or damage has occurred in the pipe.

In addition to this repair coupling, the Wavin Tigris range includes various other couplings, such as:
  • Multi layer pipes.
  • Wall plates.
  • Mounting bracket.
  • Tools.

Properties

The Tigris M5 repair coupling is resistant to high pressure and temperatures. Its impact-resistant properties make the coupling widely applicable.

The coupling is equipped with several features, including:
  • Multi jaw: Multiple crimp jaw profiles can be used.
  • Opti flow: The larger inner diameter ensures optimized flow.
  • Easy fit: Due to the modified internal structure, there is no risk of damage to the O-ring when inserting the multilayer pipe.
  • In4sure: A quick check where you can see if the pipe is inserted far enough into the fitting.
  • Pipe grip: The pipe stays in place within the coupling when correctly inserted, until it is pressed.

Material

Housing: brass.
Press sleeve: stainless steel.

Assembly

The Wavin Tigris repair coupling is installed in an existing pipe and can be pressed using Wavin tools. The coupling is equipped with leak detection called: Defined Leak and Acoustic Leak Alert.

The assembly of the coupling goes in a few steps:
  • Cut out the damaged section of the pipe using a pipe cutter.
  • Note: The minimum length for this is 135 mm, and the maximum length is 160 mm.
  • Check if the ends of the pipe are smooth and clean, then slide one end of the repair coupling over the pipe.
  • Check if the pipe is visible in the transparent ring and then press the fitting.
  • If necessary, slide the coupling to the desired length and insert the pipe into the other side of the fitting.
  • Press the fitting.
After installing the Wavin Tigris system, a pressure test should be conducted. The Defined Leak control is applied during a pressure test with water. If a coupling is incorrectly pressed, water will flow from the coupling. The K5 and M5 coupling types are also equipped with the Acoustic Leak Alert. This control is applied during a pressure test with air. If a fitting is not properly pressed, a whistling sound will be heard.
